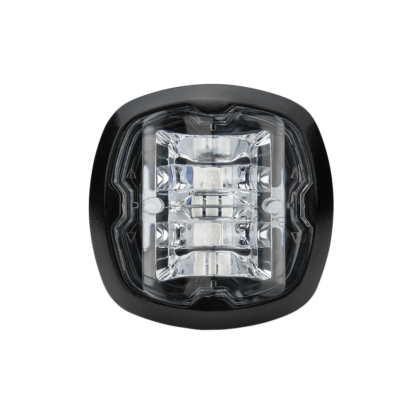

Introducing the CR06-W Warning Lighthead System

The CR06-W Warning Lighthead System provides wide-angle warning and expanded visibility; the set of 4 units offer a 270 degree warning coverage approved to ECE R65 HTA1 or HTB2. Measuring at only 36.6mm in width and 6.25mm in depth when mounted. The CR06-W features 6 LEDs per head and is available in amber or blue with a clear lens, has a choice of 17 flash patterns and is suitable for use on a 12V or 24V Vehicles.

4 heads provide 270° warning coverage

Pop-n-Lock: Easiest installation within only 1 second.

Key Features

  • Unique 6 LED optic design provides wide-angle warning and expanded visibility.
  • 4 heads provide 270 degree warning coverage approved to ECE R65, Cat. HT Class 2 (Blue), Class 1 (Amber).
  • Pop-n-Lock: Quick one-step installation with unique snap-on grommet design.
  • Featuring independent cruise mode in calmly steady burn.
  • All-in-one self-contained for easy and versatile installation without external flasher.
  • Multi-unit synchronisation in simultaneous or alternating flash mode.
  • Reverse polarity protection.
  • Weatherproof and vibration resistant design for external or internal use.

Independent Cruise Mode

Featuring independent cruise mode in calmly steady burn.

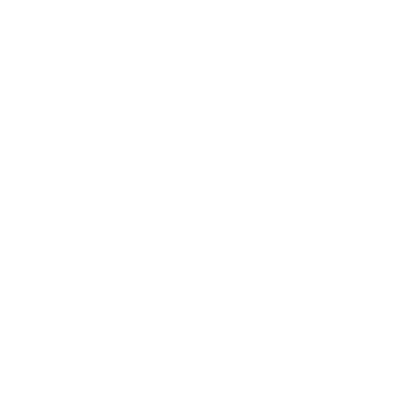

Pop-n-Lock

Quick one-step installation with unique Snap-On grommet design.

Unique 6 LED optic design

providing wide-angle warning and expanded visibility.

Flash Patterns

The CR06-W features a choice of 17 Warning Patterns, offering one of which is approved to ECE Regulation 65.

1 Double [R65]* 10 Quad [SAE]
2 Single [2Hz] 11 Quint [SAE]
3 Triple [2Hz] 12 Mega
4 Quad [2Hz] 13 Giga
5 Random 14 Ultra [SAE]
6 Steady EF** 15 Single-Quad
7 Single [SAE/CA13] 16 Single H/L
8 Double [SAE] 17 Single-Triple-Quint
9 Triple [SAE]
**For use with external flash controller.

CR06-W Outline Drawing

The CR06-W compact design makes it so desirable, measuring only 36.6mm in width, 36.6mm high and 6.25mm profile, its compact size makes this warning system perfect for all vehicle applications.

Please note: These drawings are NOT to scale.
  • CR06 (Wide Angle) – Amber (4 Lightheads)

    Your request has been sent to the Cell2 LTD sales team. We will be in touch shortly. Please look out for the Item price appearing on the website. Thank you

    EAN: 02060682

    CR06 Wide Angle Warning Modules, 4x Lightheads, 6x AMBER LEDs, CLEAR LENS, BLACK HOUSING, ECE R10, ECE R65 (HTA1), IPX7, All-In-One Self-Contained, Snap-On Grommet, Flush Mount, 17 Flash Patterns, Cruise Mode, Pigtail Cable, 12~24VDC.

CR06-W Downloads

Specification & User Manual

Cell2_CR06-W_Specification

Cell2_CR06-W_UserManual
