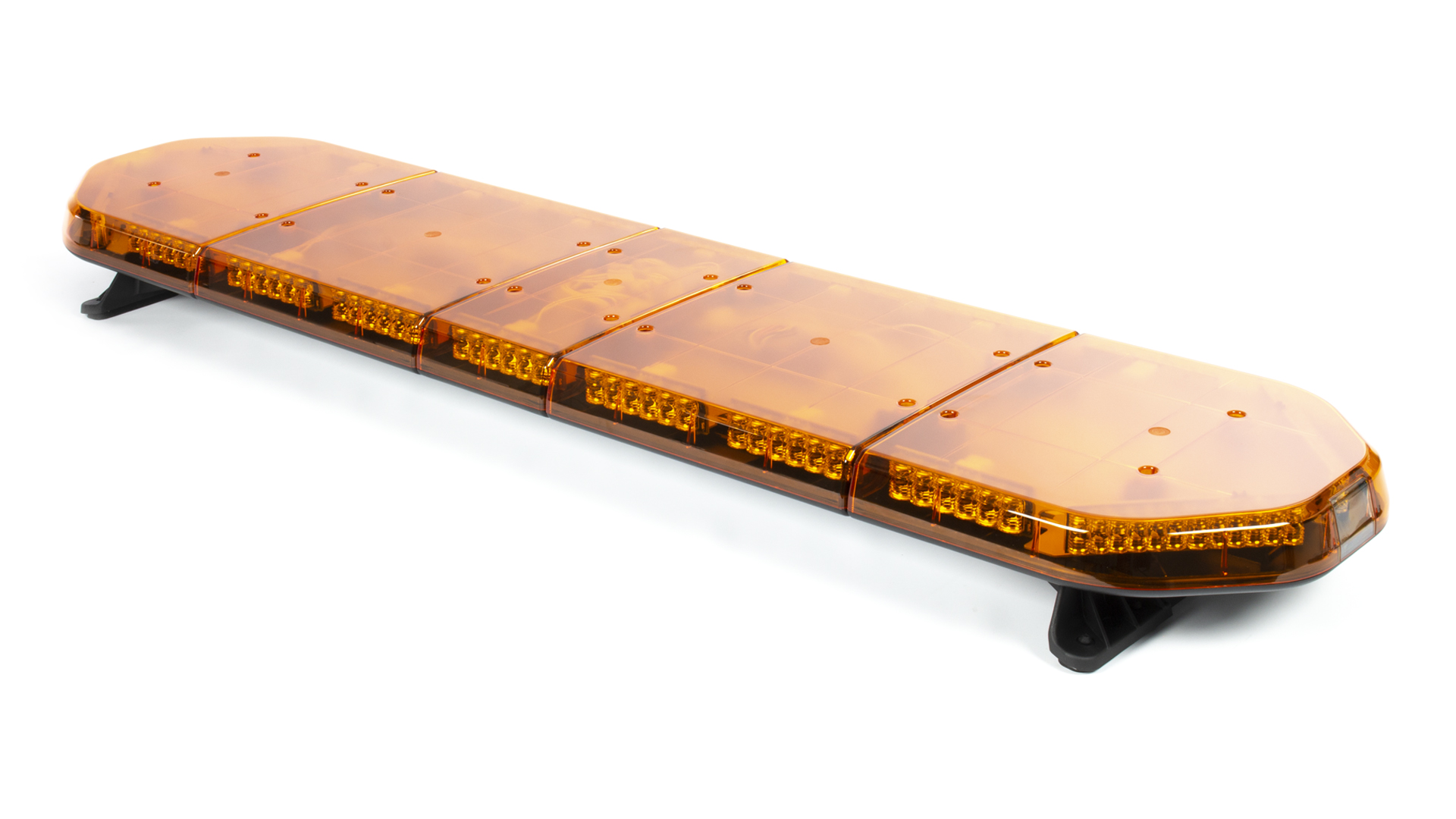

Legion HE Lightbar, 1387mm (54.6″), 72x AMBER LEDs, AMBER LENSES, ECE R10, ECE R65 (TA2), IPX4K, D-Fuser Optics, 12 Flash Patterns, 2 Cable Harness (16 Function/4 Power), Standard Feet, 24VDC.
-
Specifications
LEDs rated to 100,000 hours of operation.
Easy maintenance and lighthead replacement.
D-Fuser optics for superior 360 degree light spread.
Non-volatile memory recalls last flash pattern used at power up.
Aluminium extrusion for best heat dissipation.
Built-in and programmable flashing patterns.
Reverse polarity protection.Product Specifications
Product code 06320577 Product Name Legion HE 1387mm (54.6") - AA (24VDC) Categories Warning Lights, Lightbars, Legion High End, Legion HE Standard, Legion Product Type Products Configurations (available Take-Downs, Steady On, Cruise Light, Alley Lights Dimensions Length/width 1387mm (54 Default Functions Illuminated Centre Section, Flashing Alleys & Take-Downs, Front Cut-Off, Rear Cut-Off, Program Mode, Traffic Director - Rear Left Arrow., Traffic Director - Rear Right Arrow., Take-Down Lights (2 heads, Right-Side Alley Light, Hi/Low Power (50%, Left-Side Alley Light, Control Box Transmission Line, Stop / Tail / Turn, Cruise Light Mode, ECE-R65 Warning Mode, Flash Pattern for LEDs & TD/Alley Dimensions Height 59mm (2.3") Dimensions Depth 331mm (13") Colour Type Single Colour Lightbar Length 1387mm (54.6") LED Colour Amber LEDs Lens Colour Amber Lens Compliance ECE-R10, ECE-R65 (TA2), SAE J595 Class 1, SAE J845 Class 1, CA13 Input Voltage 24VDC Optic Type D-Fuser Optics Mounting Option Standard Bolt Mount Brackets Cable Type 2 Cable Harness (16 Function/4 Power/2 Speaker) LED Elements 72x LEDs Lighthead Quantity 8x Lightheads IP Rating IPX4K Flash Patterns 12 Flash Patterns Traffic Arrow Patterns 11 Traffic Arrow Net Weight 15.8kg Gross Weight 16.8kg Dummy Bracket Qty 10x Dummy Plates Warranty 5 Year Warranty -
