Specifications
Product Specifications

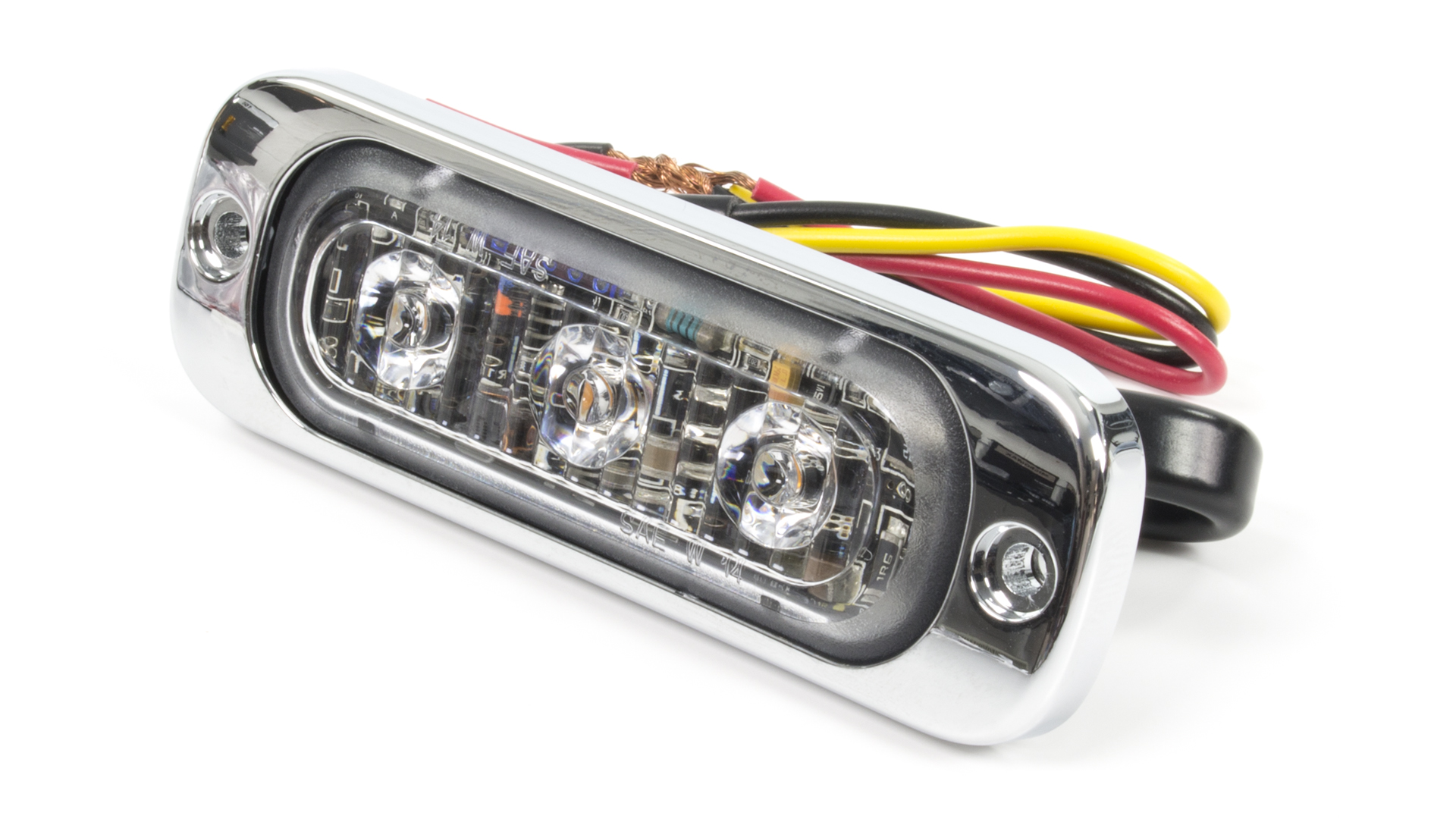

Product code 02160559 Product Name ST3 Warning Module - Amber (Chrome Bezel) Categories Warning Lights, Directionals, ST3, Super Thin, Modules Product Type Products Dimensions Length 86mm (3.38") Dimensions Height 27mm (1.06") Dimensions Width 10.6mm (0.41") Bezel Colour Chrome Colour Type Single Colour Storage Temperature -40°C - +75°C Maximum Current 0.59A@12VDC / 0.3A@24VDC Operating Temperature -30°C~+65°C Maximum Power 7.1W Synchronisation 15 Unit Synchronisation LED Colour Amber LEDs Fuse Rating 1A Lens Colour Clear Lens Compliance ECE-R10, ECE-R65 (XA1) Optic Type T.I.R Optics Input Voltage 12VDC~24VDC Mounting Option Surface Mount Cable Type Cable (Pigtail) LED Quantity 3x LEDs IP Rating IPX8 Flash Patterns 16 Flash Patterns Wire Length 265mm Mounting Orientation Horizontal Gross Weight 0.05kg Conductor Cross-Section 0.5mm² (20AWG) Warranty 5 Year Warranty -
