Specifications
Product Specifications

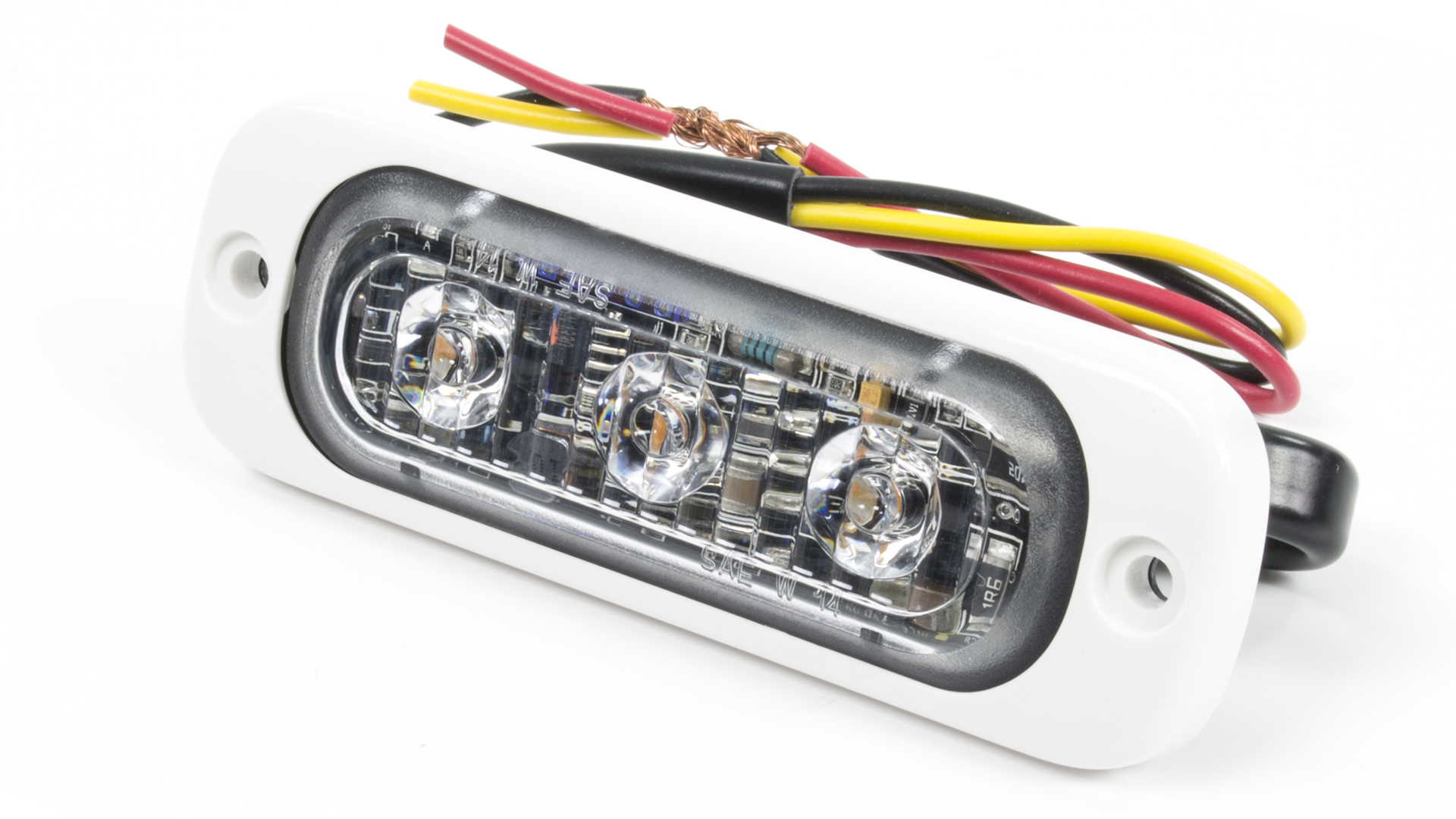

Product code 02160627 Product Name ST3 (Horizontal) - BC (White Bezel) Categories Warning Lights, ST3, Super Thin, Directionals, Modules Product Type Products Dimensions Length/width 86mm (3.38") Dimensions Height 27mm (1.06") Dimensions Depth 10.6mm (0.41") Material Colour White Colour Type Single Colour Fuse Rating 1A Maximum Current 0.59A@12VDC / 0.3A@24VDC Maximum Power 7.1W Synchronisation 15 Module Synchronisation LED Colour Blue LEDs Lens Colour Clear Lens Compliance ECE-R10, ECE-R65 (XB1) Input Voltage 12VDC~24VDC Optic Type T.I.R Optics Mounting Option Surface Mount (Horizontal) Cable Type Cable (Pigtail) LED Elements 3x LEDs Warranty 5 Year Warranty IP Rating IPX8 Flash Patterns 16 Warning Patterns Net Weight 0.05kg Gross Weight 0.05kg -
Spare Parts
-
-
Mounting
-
- Powder-Coated Aluminium
- Dual L-Bracket (Top/Bottom)
-
- Powder-Coated Aluminium
- Dual L-Bracket (Side by Side)
-
-
-
- Downloads
