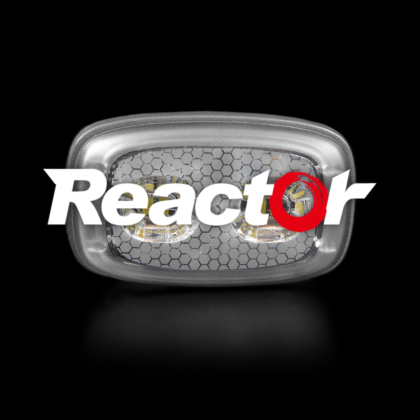

Introducing the Reactor 4LED Warning Lighthead

The Reactor’s small footprint and compact design make it suitable for installation in tight or limited space. Approved to ECE R10 & ECE R65 Class 1, with 4LEDs and a clear lens, 18 flash patterns, 12~24VDC Available in amber, blue, red and white.

Explore

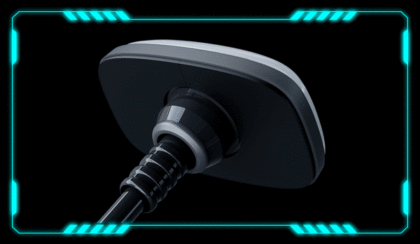

Quick installation

Screwless design with 3M permanent bond backing material for fast and secure installation

Key Features

  • Small footprint and compact design suitable for installation in tight or limited space.
  • Weatherproof to IPX7, IPX9K and vibration resistant design for external use.
  • Multi-unit synchronisation in simultaneous or alternating flash.
  • Screwless design – 3M adhesive tape for quick installation.
  • ECE R65 Class 1 homologated light output.
  • Extremely lightweight – Only 23 grams.

Single colour 4LED Lighthead

Available in amber, blue, red or white.





Quick installation & Screwless design

3M adhesive tape for quick installation.

Flash Patterns

The Reactor offers 18 European warning patterns, including 2X [2Hz] approved to ECE R65.

1 Double [2Hz] [R65] 11 Quint [SAE]
2 Single [2Hz] 12 Mega
3 Triple [2Hz] 13 Giga
4 Quad [2Hz] 14 Ultra [SAE]
5 Random 15 Single-Quad
6 Steady EF* 16 Single H/L
7 Single [SAE/CA13] 17 Single-Triple-Quint
8 Double [SAE] 18 Steady Scene
9 Triple [SAE]
10 Quad [SAE]
*For use with external flash controller.

Reactor Outline Drawing

The Reactor’s low profile makes it so desirable, measuring at only 52.8mm in length, 32.2mm high and 10mm in depth, its a compact size makes this warning system perfect for all vehicle applications.

Please note: This drawing is NOT to scale.

  • Reactor – AC (12~24VDC)

    • ECE-R10, ECE-R65 (XA1), SAE J595 Class 1, CA13
    • Single Colour
    • Clear Lens
    • IPX9K, IPX7
    • 12VDC~24VDC

    • Reactor – AC (12~24VDC)

    Your request has been sent to the Cell2 LTD sales team. We will be in touch shortly. Please look out for the Item price appearing on the website. Thank you

    EAN: 02240091

    Reactor Warning Module, Surface Mount (Horizontal), 4x AMBER LEDs, CLEAR LENS, ECE R10, ECE R65 (XA1), IPX7, IPX9K, Black Base, 18 Flash Patterns, Pigtail Cable, 12~24VDC.

  • Reactor – BC (12~24VDC)

    • ECE-R10, ECE-R65 (XB1), SAE J595 Class 1, CA13
    • Single Colour
    • Clear Lens
    • IPX9K, IPX7
    • 12VDC~24VDC

  • Reactor – RC (12~24VDC)

    • ECE-R10, ECE-R65 (XR1), SAE J595 Class 1, CA13
    • Single Colour
    • Clear Lens
    • IPX9K, IPX7
    • 12VDC~24VDC

  • Reactor – WC (12~24VDC)

    • ECE-R10, SAE J595 Class 1, CA13
    • Single Colour
    • Clear Lens
    • IPX9K, IPX7
    • 12VDC~24VDC

Reactor Downloads

Specification & User Manual

Cell2_Reactor_Specification

Cell2_Reactor_UserManual
