Unique Design for Effective Mounting

Narrow profile with Class 1 output in vertical or horizontal mount. Supplied with several universal brackets, it can be mounted virtually anywhere, meeting ECE R10 EMC compliance. Long life LEDs rated to 100,000 hours of operation. Non-volatile memory recalls last flash pattern used at power up. Weatherproof and vibration resistant for internal or external use, with solid aluminium housing for efficient heat dissipation and maximum durability.

Unique optical design for efficient and powerful output for horizontal or vertical mount, ECE R10, 3 LEDs, clear lens, 16 flash patterns, 12~24VDC. Available in amber, blue, red, green or white.

Unique optical design for efficient and powerful output for horizontal or vertical mount, ECE R10 & ECE-R65 Class 1, 23 flash patterns, 12~24VDC. Available in amber, blue, red, green or white.

Which Edge Saber is best for you?

The Edge Saber range both meet ECE R10, SAE Class 1 and CA13 approval, whereas the ES6 also meets the ECE R65 compliance. The ES6 also has 11 additional flash patterns to the ES3 which has 12.

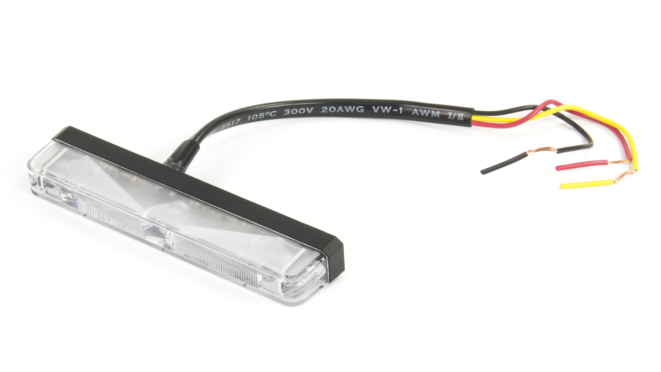

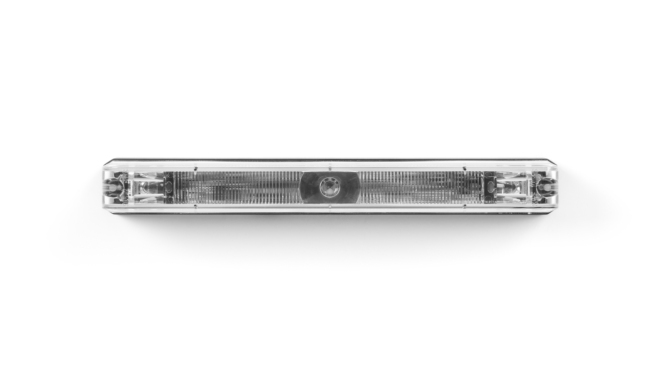

ES3

15.8mm Narrow profile with remarkable SAE J595 Class  output.
Brand-new unique optical design for efficient and powerful output.
3x High-Power LEDs, available with 12 built-in flash patterns.

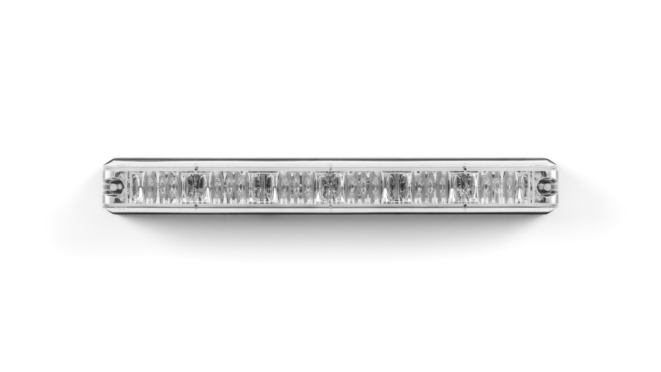

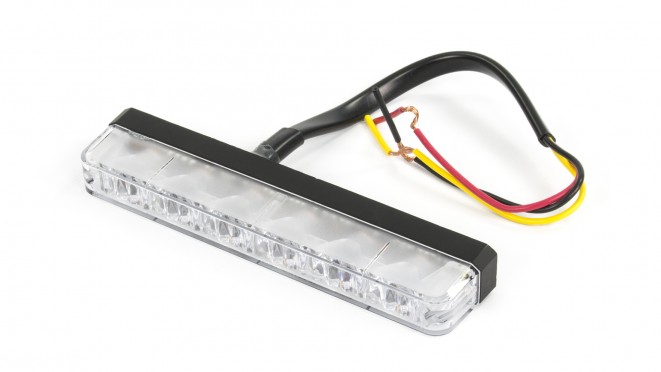

ES6

Universal Multi-Angle Bracket, mounting virtually anywhere.
Solid aluminum housing for efficient heat dissipation and maximum durability.
6x High-Power LEDs, comes with 23 built-in flash patterns.
Available in Horizontal and Vertical mount.

Same size more light.

The Edgesaber 3 and Edgesaber 6 have the exact same dimensions as each other. The Edgesaber 3 is packed with 3x High Power LED lightheads, whereas the Edgesaber 6 has 6x High Power LED lightheads. So when it comes to size, there is nothing to suggest one of these Modules over the other, your decision can only be based on internal specifications.

Which mounting option is best for you?

The Edge Saber is supplied with a comprehensive universal fixing kit as outlined below, alternatively, a shroud kit is available to fit the product inside the vehicle windscreen. Alternatively, if you have access to the rear of a vertical mounting surface, you can fasten the lamp by means of 2 x M3 screws directly through the panel into the rear of the lamp, fixing centres 93mm.

Universal Bracket

The 2 x Universal Brackets fix to the rear of the lamp by use of the supplied screws in two different orientations, they facilitate the fixing of the lamp to flat vertical surfaces as pictured.

L-Bracket

The 2 x ‘L’ Brackets fix to the rear of the lamp by use of the supplied screws, they facilitate the fixing of the lamp to flat horizontal surfaces as pictured.

Edge Saber Shroud Kit

The Edge Saber Shroud Kit can be used to mount the product onto the inside surface of a vehicle windscreen. It fastens by means of self-adhesive strips to the inside surface of the windscreen and features a shroud to shield the occupants of the vehicle from distracting stray reflections of light.
