Easy, economical, excellent.

Light Pad LED Warning Lightheads are extremely low profile directional lights, designed for situations where space is limited. Offering a self adhesive backing for easy quick and easy installation. Available in several colours, approved to ECE R10 & ECE R65 Class 1 (LP26), with a multi-voltage input of 12~24VDC. Choose from 3, 4, 6 or 12 LED’s.

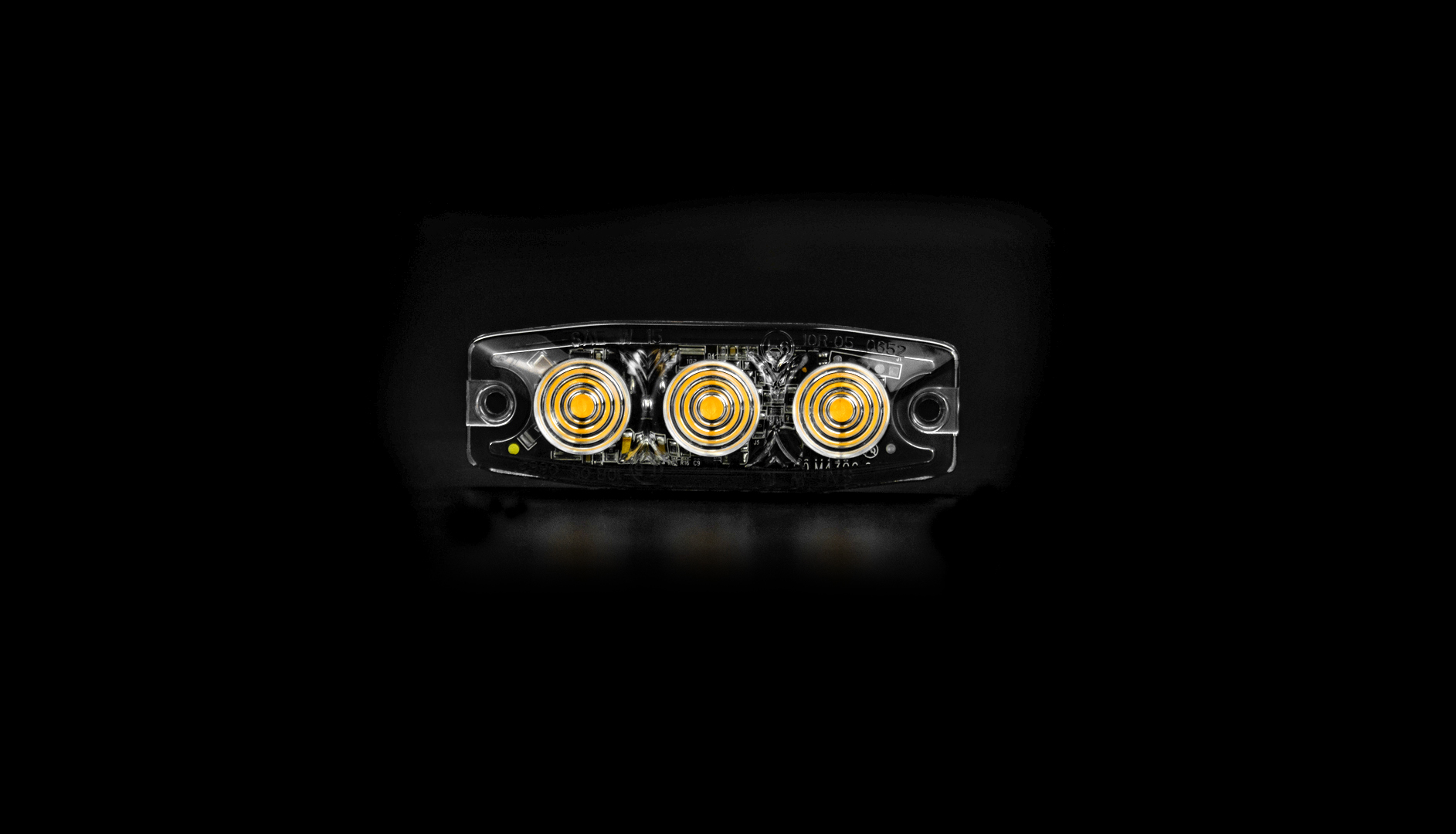

Compact and economical design with fresnel optics, ECE R10, 3 LEDs, clear lens, 12 flash patterns, horizontal surface mount, self adhesive mount, 12~24VDC, available in amber, blue, red, green or white.

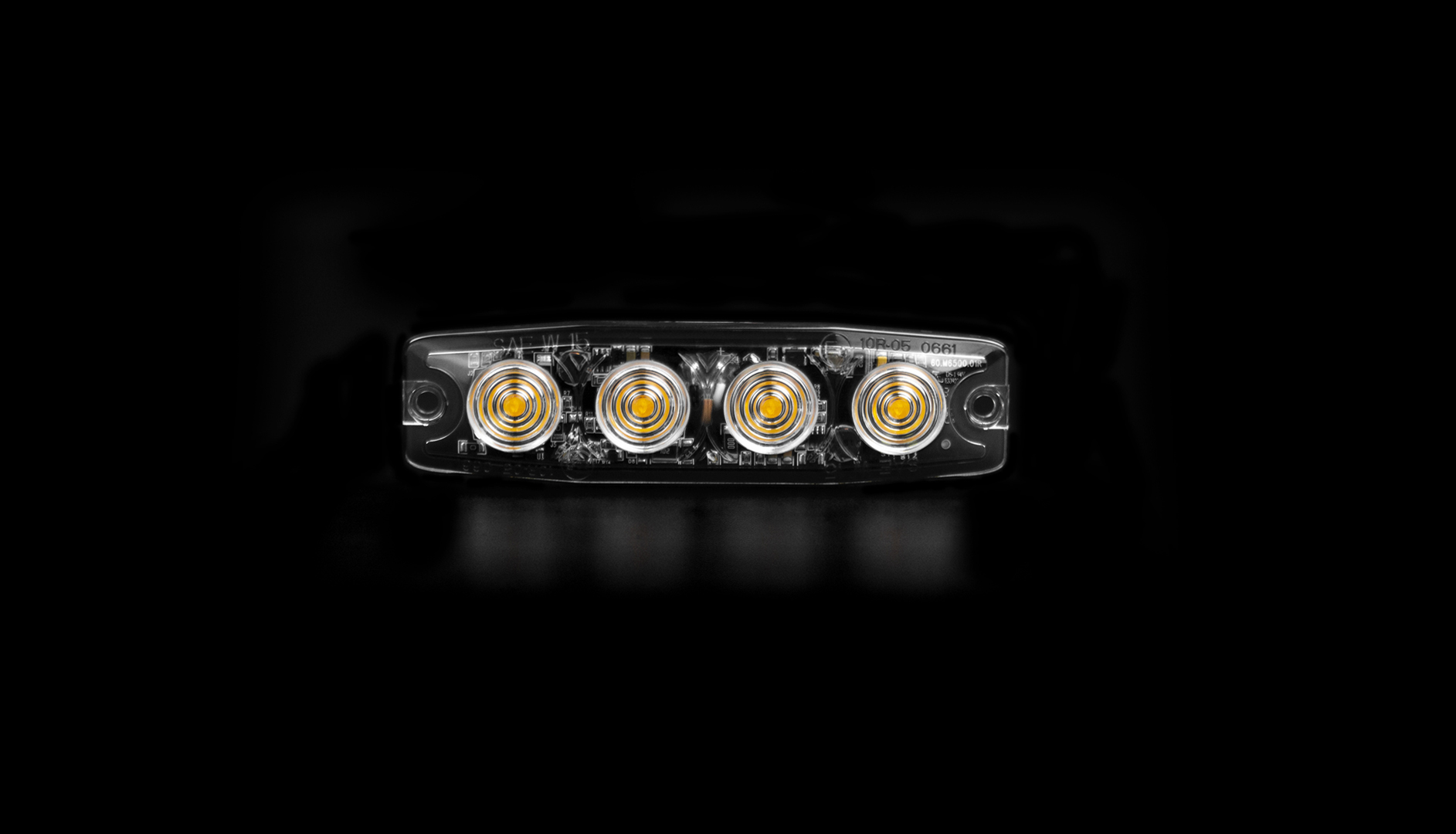

Compact and economical design with fresnel optics, ECE R10, 4 LEDs, clear lens, 23 flash patterns, horizontal surface mount, optional self adhesive, 12~24VDC. Available in amber, blue, red, green or white.

Single or split colour compact and extremely powerful LED lighthead, ECE R10, 6LEDs, clear lens, horizontal surface mount, 23 flash patterns, self adhesive backing, 12~24VDC. Available in amber, blue, red, green or white.

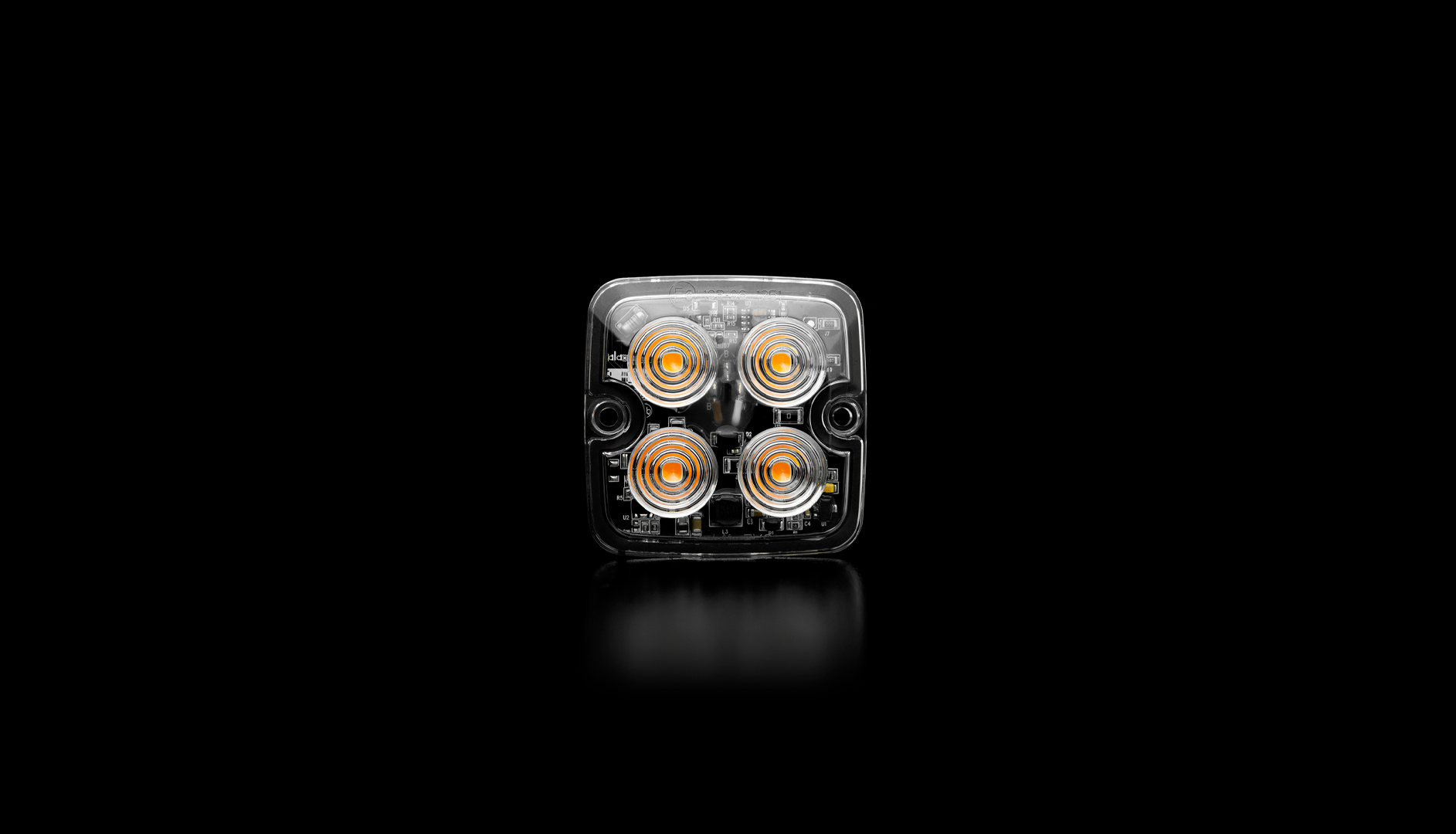

4LED Square Warning Lighthead for versatile mounting & orientation, ECE R10, clear lens, 18 flash patterns, horizontal or vertical surface mount, self adhesive backing, 12~24VDC. Available in amber, blue, red or white.

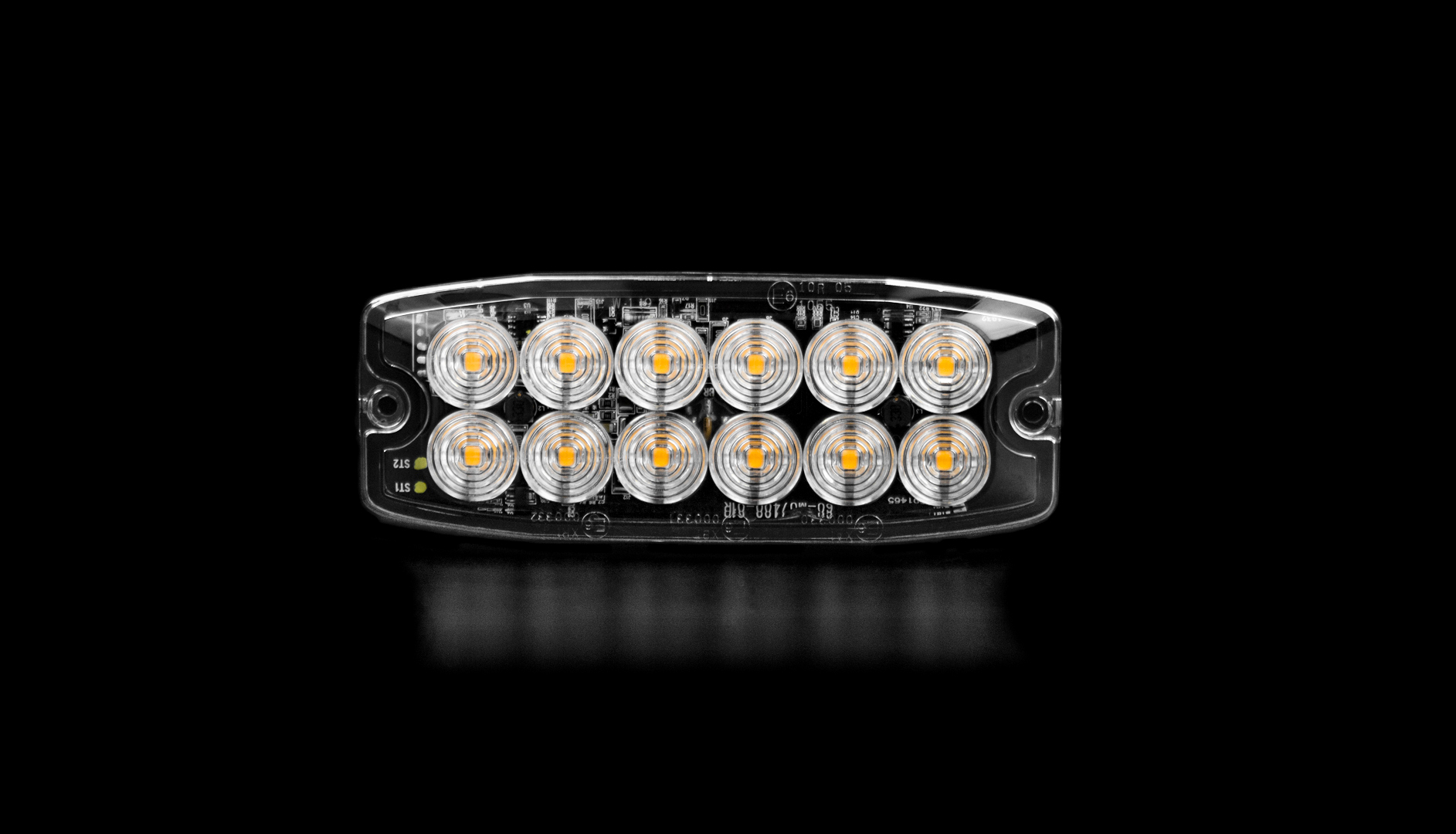

12LED warning lighthead with double stack design, ECE R10 & ECE R65 Class 1, clear lens, 30 flash patterns, horizontal or vertical surface mount, self adhesive mount, 12-24VDC. Available in amber, blue, red or white.

Which Light Pad is best for you?

LP3, LP4, LP6, LP22 & LP26 Light Pad Modules. Choose from 3, 4, 6 or 12 high-power LEDs with an ultra-low 6.6mm profile. Fully weatherproof and vibration resistant design for external or internal use. ECE R65 Class 1 and SAE certified output. Available in amber, blue, red, white and green.

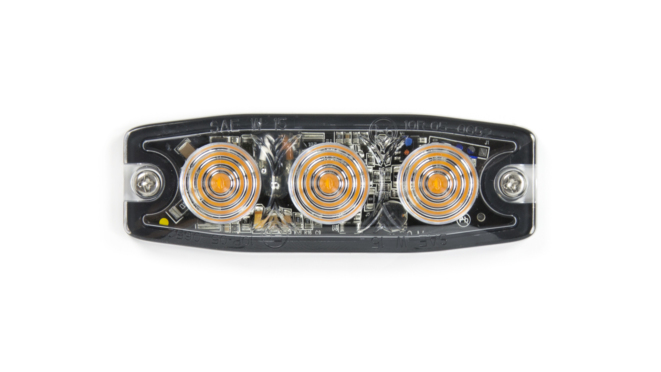

LP3

6.6mm Super low-profile thickness with self-adhesive backing for discreet and quick mounting.
3x High-Power LEDs, available with 12 built-in flash patterns.
Reverse polarity protection.

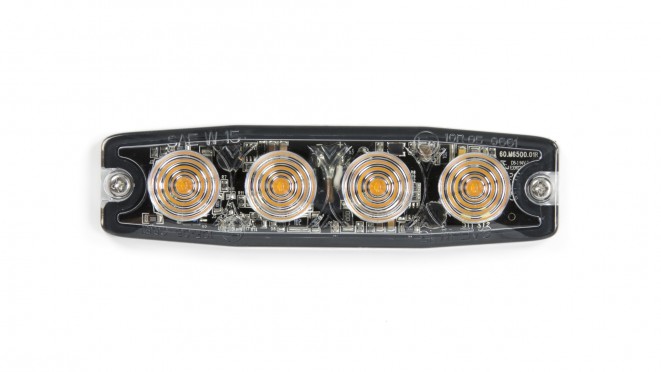

LP4

Super low-profile optic with SAE Class 1 certified light output.
Built-in 24 selectable flash patterns in Split or Simultaneous flash.
Long life LED technology rated to 100,000 hours of operation.

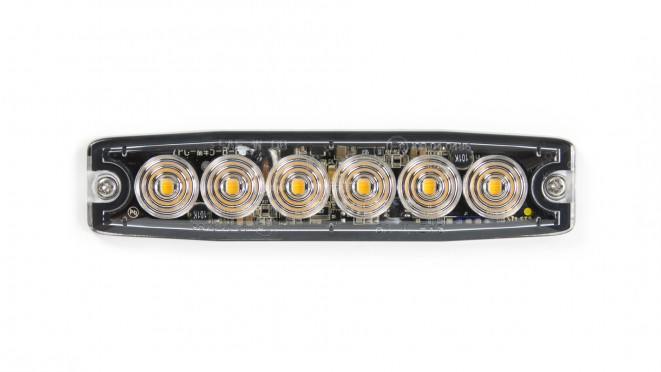

LP6

High-Power LED x 6pcs, available with 23 Built-In Flash Patterns.
Multiple units are synchronizable and can flash simultaneously or alternately.
Self-Adhesive backing for quick and simple mounting.

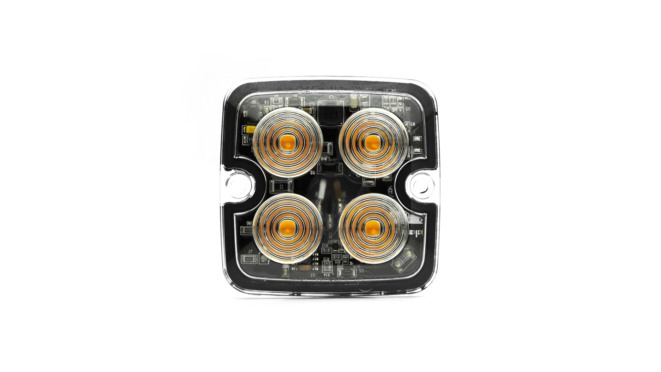

LP22

World`s No. 1 – Ultra low profile 6.6mm lighthead with SAE & ECE R65 Class 1 Approvals.
Square design allows versatile mounting and orientation.
Double stack design with built-in selectable flash patterns in simultaneous or split flash.

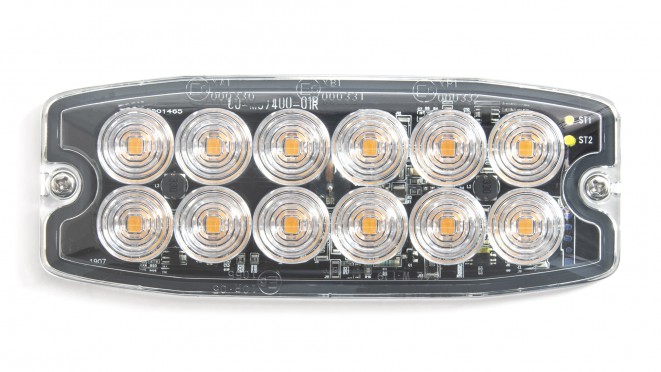

LP26

World`s No. 1 – Ultra low profile 6.6mm lighthead with SAE & ECE R65 Class 1 Approvals.
Versatile installation in Horizontal or Vertical mount; either way meets SAE requirements.
Double stack design with built-in selectable flash patterns in simultaneous or split flash.

Which size is best for you?

Our collection of Light Pad Modules also vary in size according to the amount of LEDs inside them. However they all retain the super low-profile of just 6.6mm.
Our smallest, the LP3 measures in at 88mm (3.45″) in length, whereas the larger LP26 measures at 130.5mm (5.14″) in length. The LP range does vary in size, however they still fit inside the category of being a small, slim and discreet module. Perfect for hiding in plain sight, while still having the ability to make others aware of your presence.
