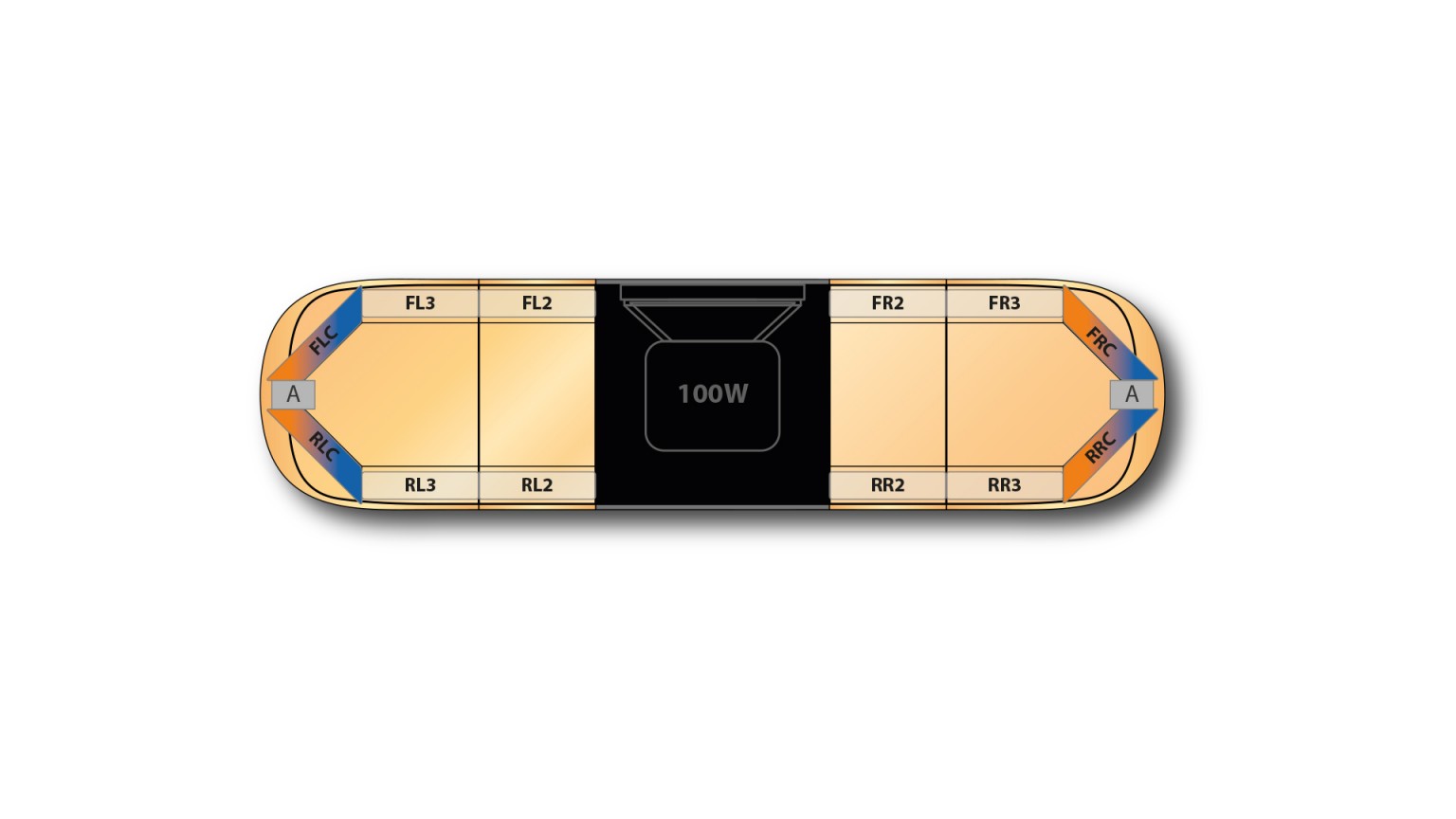

Aegis DC H002 Speaker Lightbar, 1210mm (47.6″), 72x AMBER/BLUE LEDs, AMBER COVERS, ECE R10, ECE R65 (TA2/TB2), IPX4K, Full Functionality, D-Fuser Optics, 15 Flash Patterns, Double Harness (16 Function/4 Power/2 Speaker), Standard Feet, 12VDC.
-
Specifications
3.25″ (83mm) thickness, broad visibility and powerful output.
Modern design, with solid, sturdy look to best fit your vehicle.
New generation optics that meets ECE R65, SAE and NFPA.
Control your work-site with a flick of the switch.
100w built-in speaker.Product Specifications
Product code 06080082 Product Name Aegis DC H002 Speaker 1210mm (47.6") - ABA (12VDC) Categories Warning Lamps, Lightbars, Aegis Dual Colour, Aegis DC H002 Speaker, Aegis Product Type Products Configurations (available Alley Lights, Take-Downs, Traffic Director Dimensions Length 1210mm (48") Default Functions Left-Side Alley Light, Take-Down Lights (2 heads, Hi/Low Power (50%, Flashing Alleys & Take-Downs, Front Cut-Off, Rear Cut-Off, Program Mode, Traffic Director - Rear Left Arrow., Traffic Director - Rear Right Arrow., Right-Side Alley Light, ECE-R65 Warning Mode, Flash Pattern for LEDs & TD/Alley Dimensions Height 83mm (3.25") Speaker Power Rating 100W Dimensions Width 310mm (12.2") Colour Type Dual Colour Maximum Current 23.3A@12.8VDC Lightbar Length 1210mm (47.6") Speaker Impedance 10-13 Ohms Speaker Type H002 LED Colour Amber LEDs, Blue LEDs Fuse Rating 23.3A Cover Colour Amber Covers Lens Colour Clear Lens Compliance ECE-R10, ECE-R65 (TA2), ECE-R65 (TB2), SAE J845 Class 1, CA13 Input Voltage 12VDC Optic Type D-Fuser Optics Mounting Option Standard Bolt Mount Brackets Cable Type Double Harness (16 Function/4 Power/2 Speaker) LED Quantity 72x LEDs Lighthead Quantity 4x Lightheads IP Rating IPX4K Flash Patterns 15 Flash Patterns Net Weight 14.6kg Gross Weight 15.6kg Dummy Bracket Qty 8x Dummy Plates Warranty 5 Year Warranty -
Spare Parts
-
-
-
-
-
- Lightheads
- Dual Layer
- 12x LEDs (6 per Level)
- Amber LEDs, Blue LEDs
- Linear Optics, T.I.R Optics
-
-
- Lightheads
- Dual Layer
- 12x LEDs (6 per Level)
- Blue LEDs, White LEDs
- Linear Optics, T.I.R Optics
-
-
-
-
-
-
-
-
-
-
-
-
-
Mounting
-
- Downloads
