Aegis HE Lightbar, 1054mm (41.5″), 36x BLUE LEDs, BLACK COVERS, ECE R10, ECE R65 (TB2), IPX4K, Full Functionality, D-Fuser Optics, 15 Flash Patterns, 2 Cable Harness (16 Function/4 Power), Standard Feet, 24VDC.
-
Specifications
3.25″ (83mm) thickness, broad visibility and powerful output.
Modern design, with a solid, sturdy look to best fit your vehicle.
New generation optics that meets ECE R65, SAE and NFPA.
Control your work-site with a flick of the switch.Product Specifications

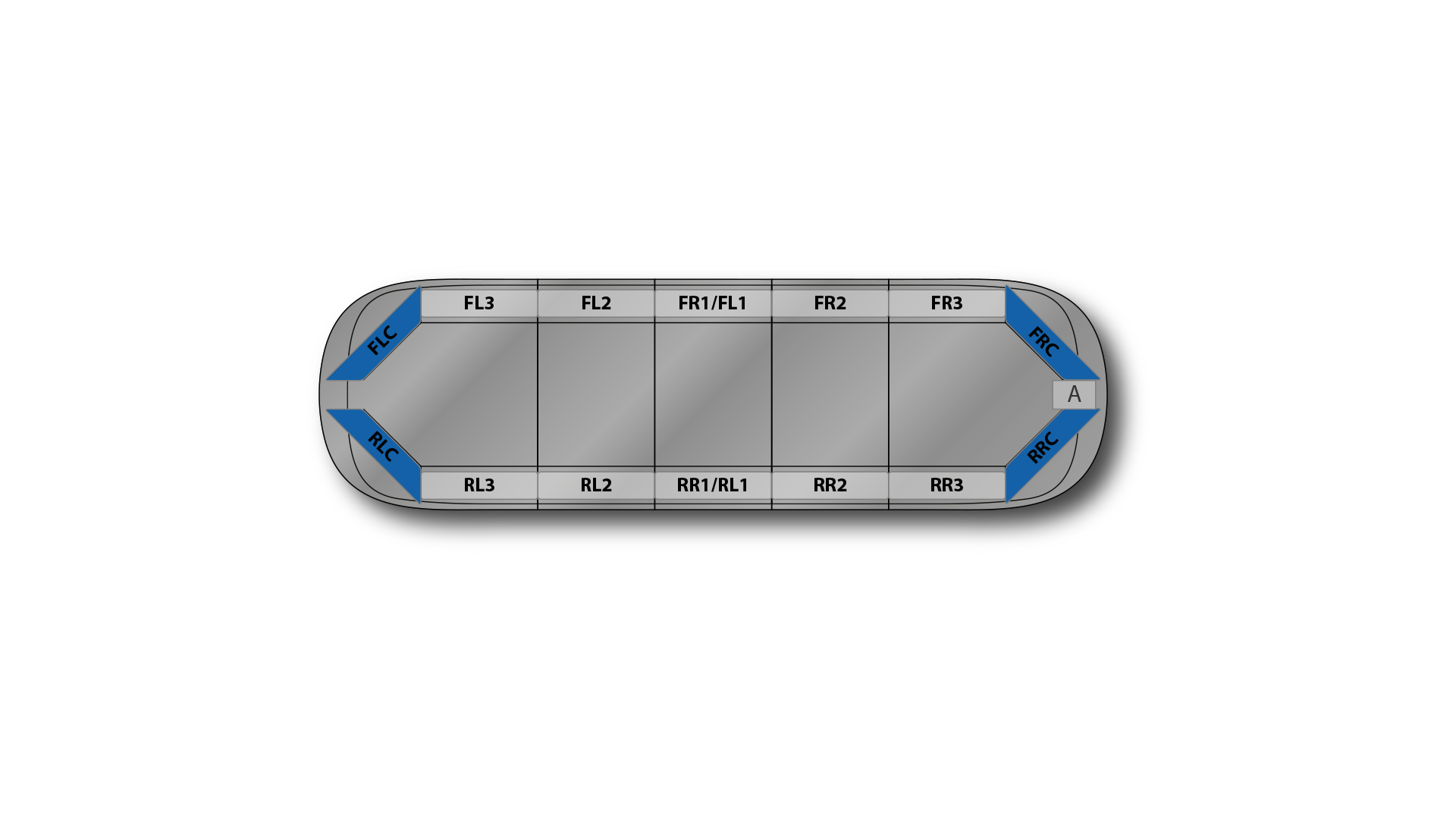

Product code 06030414 Product Name Aegis HE 1054mm (41.5") - BK (24VDC) Categories Warning Lights, Aegis High End, Lightbars, Aegis HE Standard, Aegis Product Type Products Configurations (available Alley Lights, Take-Downs, Steady On Dimensions Length/width 1054mm (42") Default Functions Left-Side Alley Light, Flashing Alleys & Take-Downs, Front Cut-Off, Rear Cut-Off, Program Mode, Take-Down Lights (2 heads, Hi/Low Power (50%, Traffic Director - Rear Left Arrow., Traffic Director - Rear Right Arrow., Right-Side Alley Light, ECE-R65 Warning Mode, Flash Pattern for LEDs & TD/Alley Dimensions Height 83mm (3.25") Dimensions Depth 310mm (12.2") Colour Type Single Colour Lightbar Length 1054mm (41.5") LED Colour Blue LEDs Cover Colour Black Covers Lens Colour Clear Lens Compliance ECE-R10, ECE-R65 (TB2), SAE J845 Class 1, CA13 Input Voltage 24VDC Optic Type D-Fuser Optics Mounting Option Standard Bolt Mount Brackets Cable Type 2 Cable Harness (16 Function/4 Power) LED Elements 36x LEDs Lighthead Quantity 4x Lightheads IP Rating IPX4K Flash Patterns 15 Flash Patterns Traffic Arrow Patterns 11 Traffic Arrow Net Weight 16.6kg Gross Weight 17.6kg Dummy Bracket Qty 10x Dummy Plates Warranty 5 Year Warranty -
