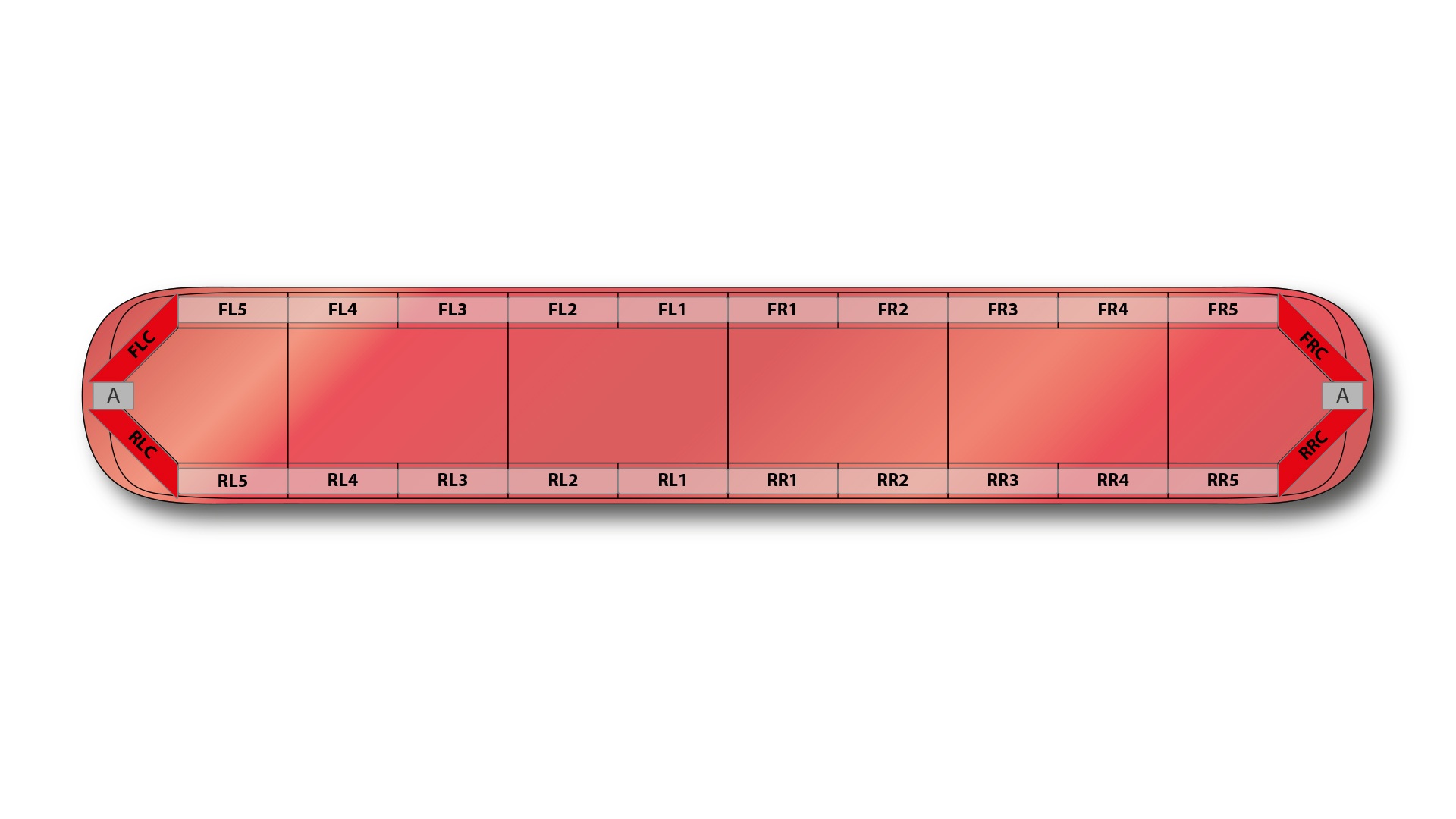

Aegis HE Lightbar, 1834mm (72″), 36x RED LEDs, RED COVERS, ECE R10, ECE R65 (TR2), IPX4K, Full Functionality, D-Fuser Optics, 15 Flash Patterns, Double Harness (16 Function/4 Power), Standard Feet, 12VDC.
-
Specifications
3.25″ (83mm) thickness, broad visibility and powerful output.
Modern design, with a solid, sturdy look to best fit your vehicle.
New generation optics that meets ECE R65, SAE and NFPA.
Control your work-site with a flick of the switch.Product Specifications
Product code 06030360 Product Name Aegis HE 1834mm (72") - RR (12VDC) Categories Lighting, Lightbars, Aegis HE Standard, Aegis High End, Aegis Product Type Products Configurations (available) Alley Lights, Take-Downs, Steady On Default Functions Program Mode, Take-Down Lights (2 heads, Hi/Low Power (50%), Traffic Director - Rear Left Arrow., Traffic Director - Rear Right Arrow., Right-Side Alley Light, Left-Side Alley Light, Flashing Alleys & Take-Downs, Front Cut-Off, Rear Cut-Off, ECE-R65 Warning Mode, Flash Pattern for LEDs & TD/Alley Dimensions Height 83mm Dimensions Width 310mm Colour Type Single Colour Maximum Current 31.3A@12.8VDC Lightbar Length 1834mm (72") LED Colour Red LEDs Cover Colour Red Covers Lens Colour Clear Lens Compliance ECE R10, ECE R65 - TR2, SAE J845 Class 1, California Title 13 Optic Type D-Fuser Optics Nominal Voltage 12VDC Mounting Option Standard Bolt Mount Brackets Cable Type Double Harness (16 Function/4 Power) LED Quantity 36x LEDs Lighthead Quantity 4x Lightheads IP Rating IPX4K Flash Patterns 15 Flash Patterns Traffic Arrow Patterns 11 Traffic Arrow Dummy Bracket Qty 20x Dummy Plates Warranty 5 Year Warranty -
