EAN: 06070182
Aegis HE H002 Speaker Lightbar, 1678mm (66.1″), 36x AMBER LEDs, AMBER COVERS, ECE R10, ECE R65 (TA2), IPX4K, Full Functionality, D-Fuser Optics, 15 Flash Patterns, 2 Cable Harness (16 Function/Power/2 Speaker), Standard Feet, 12VDC.
-
Specifications
3.25″ (83mm) thickness, broad visibility and powerful output.
Modern design, with solid, sturdy look to best fit your vehicle.
New generation optics that meets ECE R65, SAE and NFPA.
Control your work-site with a flick of the switch.
100w built-in speaker.Product Specifications

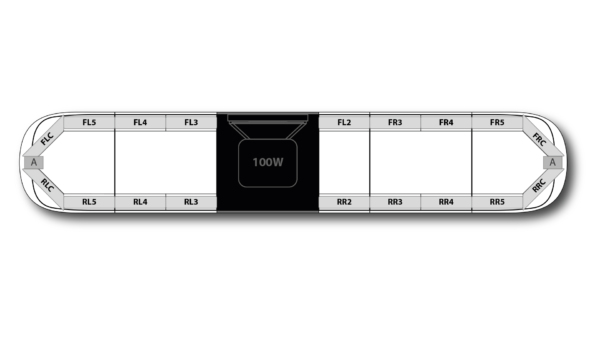

Product code 06070182 Product Name Aegis HE H002 Speaker 1678mm (66.1") - AA (12VDC) Categories Warning Lights, Aegis High End, Lightbars, Aegis HE H002 Speaker, Aegis Product Type Products Configurations (available Alley Lights, Take-Downs Dimensions Length/width 1678mm (66") Default Functions Flashing Alleys & Take-Downs, Take-Down Lights (2 heads, Hi/Low Power (50%, Right-Side Alley Light, Left-Side Alley Light, ECE-R65 Warning Mode, Flash Pattern for LEDs & TD/Alley Dimensions Height 83mm (3.25") Speaker Power Rating 100W Dimensions Depth 310mm (12.2") Colour Type Single Colour Maximum Current 29.3A@12.8VDC Lightbar Length 1678mm (66.1") Speaker Impedance 10-13 Ohms Speaker Type H002 LED Colour Amber LEDs Fuse Rating 40A Cover Colour Amber Covers Lens Colour Clear Lens Compliance ECE-R10, ECE-R65 (TA2), SAE J845 Class 1, CA13 Input Voltage 12VDC Optic Type D-Fuser Optics Mounting Option Standard Bolt Mount Brackets Cable Type 2 Cable Harness (16 Function/4 Power/2 Speaker) LED Elements 36x LEDs Lighthead Quantity 4x Lightheads IP Rating IPX4K Flash Patterns 15 Flash Patterns Net Weight 25.6kg Gross Weight 26.6kg Dummy Bracket Qty 14x Dummy Plates Warranty 5 Year Warranty -
Spare Parts
-
- Lightheads
- Alley
- Single Colour
- 3x LEDs
- 2 Pin Connector
-
- Lightheads
- Take-Down
- Single Colour
- 6x LEDs
- Smaller 3 Pin Connector
-
- Lightheads
- Warning
- Single Colour
- 3x LEDs
- Smaller 3 Pin Connector
-
- Lightheads
- Warning
- Single Colour
- 6x LEDs
- Smaller 3 Pin Connector
-
-
- Lenses
- Polycarbonate (PC)
- H002
- Middle
- Black Lens
-
-
-
-
-
-
-
- Lightheads
- Warning
- Single Colour
- 9x LEDs
- Smaller 3 Pin Connector
-
- Lightheads
- Warning
- Single Colour
- 9x LEDs
- Smaller 3 Pin Connector
-
- 100W
- Acrylonitrile Butadiene Styrene (ABS), Aluminium
- 100W
- H002
- 10-13 Ohms
-
-
Mounting
-
- Powder-Coated Aluminium
- Black
- Low Profile Flat Wide Feet
-
- Powder-Coated Aluminium
- Black
- Low Profile Flat Narrow Feet
-
-
- Powder-Coated Aluminium
- MS3 - Extrusion Bracket
- Black
-
- Powder-Coated Aluminium
- MS3 - A006 Mounting Bracket
- Black
-
- Powder-Coated Aluminium
- Black
- Mount Kit (Adjustable A006)
-
- Powder-Coated Aluminium
- Black
- Mount Kit (Adjustable Bolt)
-
- Powder-Coated Aluminium
- Black
- Low Profile Flat Wide Feet
-
- Powder-Coated Aluminium
- Black
- Low Profile Flat Narrow Feet
-
- Powder-Coated Aluminium
- Black
- Standard Bolt Mount Brackets
-
-
