Specifications

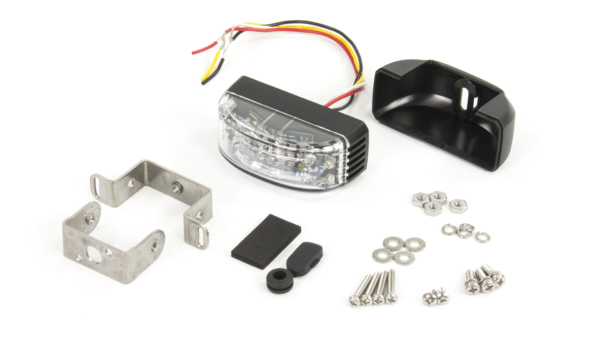

Universal side-mirror mount adaptor, suitable for all vehicle mirrors and motorcycles.
Fully weatherproof and vibration resistant design for external or internal use.
Aluminium base for efficient hear dissipation and maximum durability.
Non-volatile memory recalls last flash pattern used at power up.
Multi-unit synchronisation in simultaneous or alternating flash.
Super wide-angle output rated with SAE Class 1.
Reverse polarity protection.Product Specifications
Product code 02170039 Product Name AL6 Warning Lighthead (Mirror Mount) - Red Categories Lighting, Wide Angle, Modules, Arc LED Product Type Products Colour Type Single Colour Maximum Current 1.14A@12VDC / 0.57A@24VDC Maximum Power 13.7W Synchronisation 15 Unit Sync LED Colour Red LEDs Fuse Rating 2A Lens Colour Clear Lens Compliance ECE R10, SAE J595 Class 1, SAE J845 Class 1 Nominal Voltage 12-24VDC Mounting Option Mirror Mount Cable Type Cable (Pigtail) LED Quantity 6LED IP Rating IPX7 Flash Patterns 16 Flash Patterns Wire Length 200mm Conductor Cross-Section 0.5mm² (20AWG) Warranty 5 Year Warranty -
