Specifications

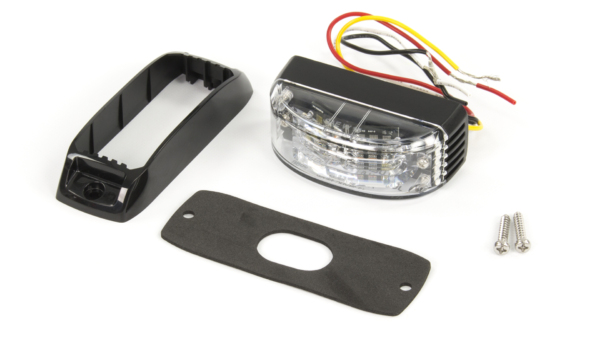

Versatile surface mount with or without bezel, suitable for all vehicle bodies and motorcycle storage boxes.
Fully weatherproof and vibration resistant design for external or internal use.
Aluminium base for efficient hear dissipation and maximum durability.
Non-volatile memory recalls last flash pattern used at power up.
Multi-unit synchronisation in simultaneous or alternating flash.
Super wide-angle output rated with SAE Class 1.
Reverse polarity protection.Product Specifications
Product code 02170077 Product Name AL6 Warning Module (Surface Mount) - Red Categories Warning Lights, Wide Angle, Modules, Arc Product Type Products Colour Type Single Colour Maximum Current 1.14A@12VDC / 0.57A@24VDC Maximum Power 13.7W Synchronisation 15 Unit Synchronisation LED Colour Red LEDs Fuse Rating 2A Lens Colour Clear Lens Compliance ECE-R10, SAE J595 Class 1, SAE J845 Class 1 Input Voltage 12VDC~24VDC Mounting Option Surface Mount Cable Type Cable (Pigtail) LED Quantity 6x LEDs IP Rating IPX7 Flash Patterns 16 Flash Patterns Wire Length 200mm Mounting Orientation Horizontal Gross Weight 0.15kg Conductor Cross-Section 0.5mm² (20AWG) Warranty 5 Year Warranty -
