Specifications
100,000 hours rated long-life LED.
Low profile design with only 80mm in height.
Certified powerful ECE R65 performance in all colour.
Weatherproof and shockproof capability for all environment.
Multi-units synchronisation in simultaneous or alternating flash.
Non-volatile flash pattern memory.
Reverse polarity protection.Product Specifications

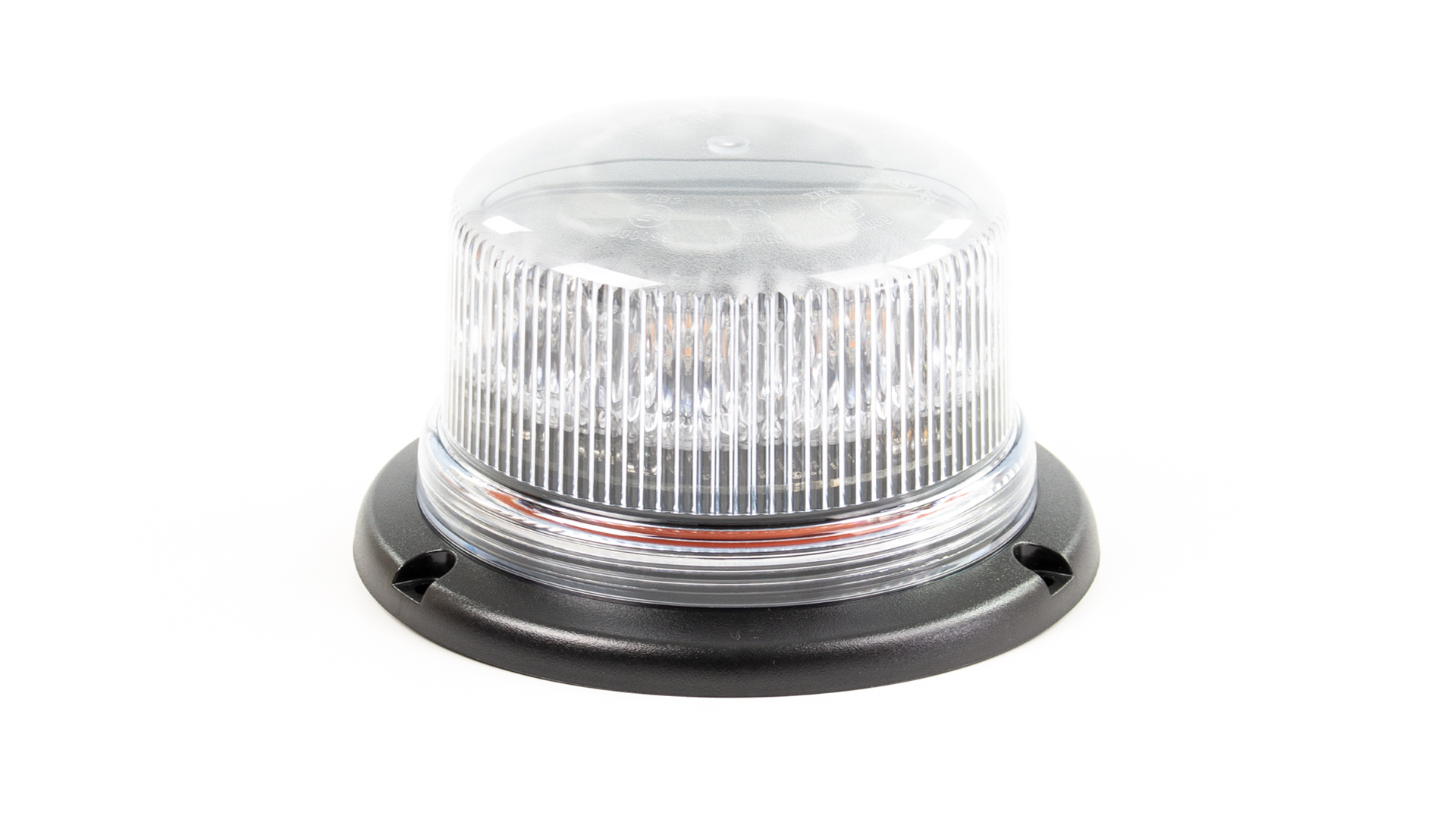

Product code 05200276 Product Name B16 Beacon - AC (3-Bolt Mount) Categories Warning Lamps, B16 Standard, Beacons, B16 Beacons Product Type Products Dimensions Height 80mm (3.15") Colour Type Single Colour Storage Temperature -40°C - +75°C Maximum Current 2.4A@12VDC / 1.3A@24VDC Operating Temperature -30°C~+65°C Maximum Power 30W Synchronisation 15 Unit Sync Diameter ⌀142mm (5.59") LED Colour Amber LEDs Fuse Rating 5A Lens Colour Clear Lens Compliance ECE-R10, SAE J845 Class 1, CA13 Input Voltage 12VDC~24VDC Mounting Option 3-Bolt Mount Cable Type Cable (Pigtail) LED Quantity 8x LEDs IP Rating IP6K6, IP6K6K Flash Patterns 11 Flash Patterns Wire Length 400mm Gross Weight 0.6kg Conductor Cross-Section 0.5mm² (20AWG) Warranty 5 Year Warranty -
Spare Parts
-
-
Mounting
-
- Stem
- Rubber, Steel
- DIN Pole Mount
- Circular 2 Hole Mounting Flange
-
- Stem
- Rubber, Steel
- DIN Pole Mount
- 2 Hole Horizontal Mounting Plate
-
-
- Stem
- Rubber, Steel
- DIN Pole Mount
- Clamping Flange
-
-
- Stem
- Rubber, Steel
- DIN Pole Mount

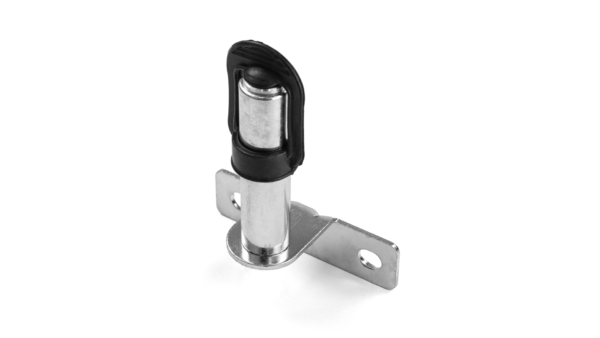

- 2 Hole Vertical Mounting Plate
-
-
-
-
-
-
