Specifications
100,000 hours rated long-life LED.
Low profile design with only 80mm in height.
Certified powerful ECE R65 performance in all colour.
Weatherproof and shockproof capability for all environment.
Multi-units synchronisation in simultaneous or alternating flash.
Non-volatile flash pattern memory.
Reverse polarity protection.Product Specifications

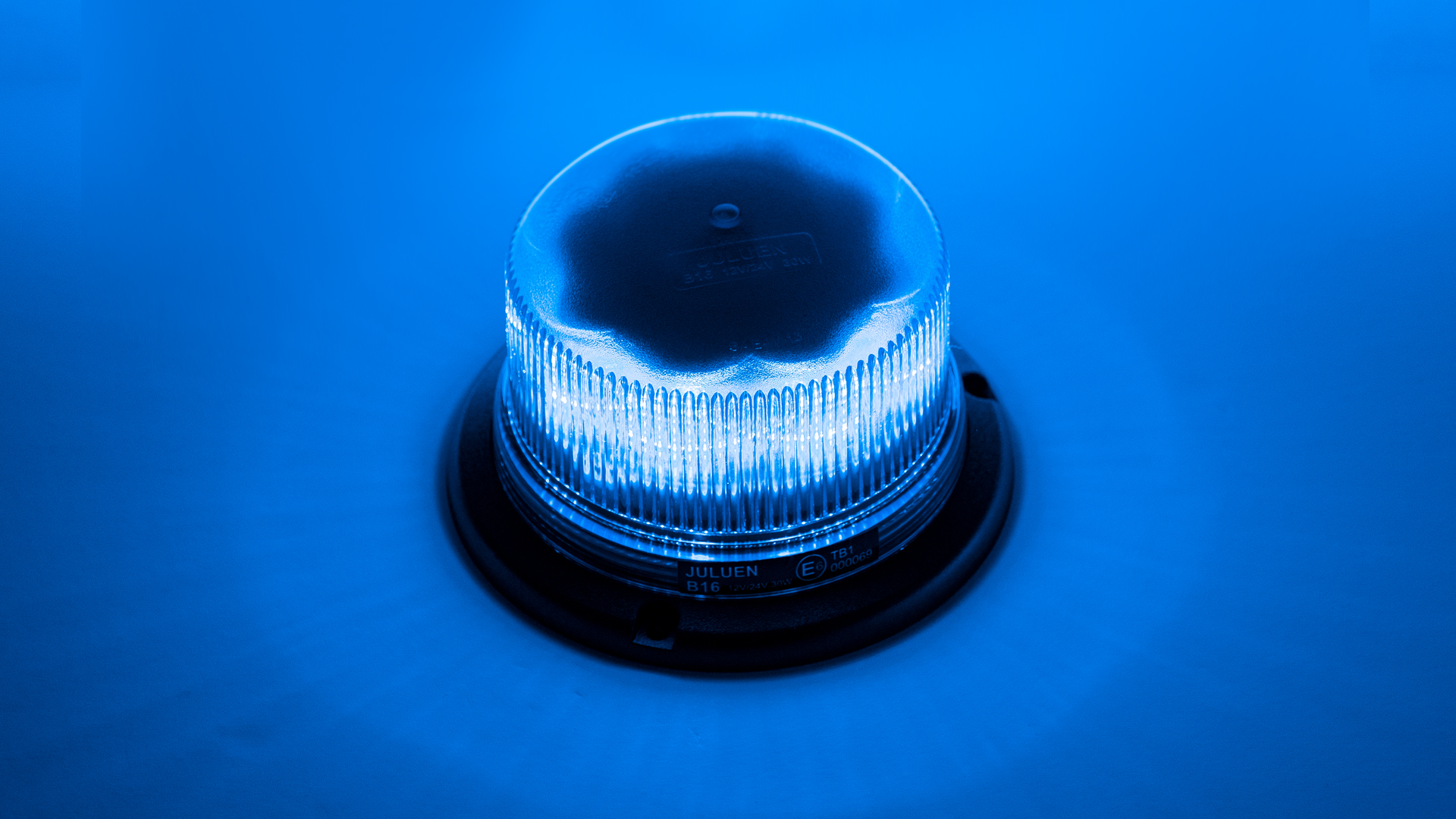

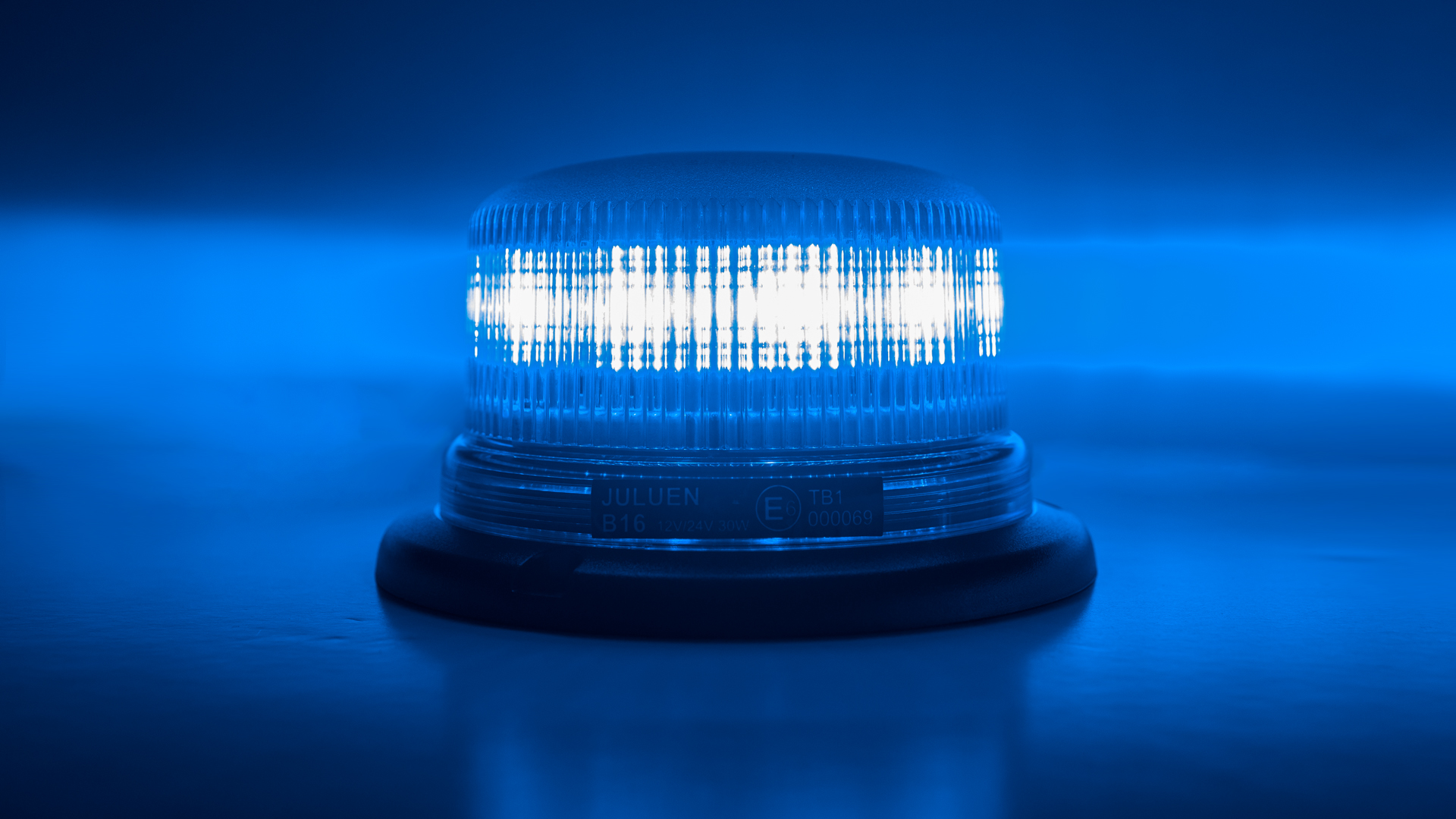

Product code 05200610 Product Name B16 Beacon - BC (3-Bolt Mount) Categories Lighting, B16 Standard, Beacons, B16 Beacons Product Type Products Dimensions Height 80mm Colour Type Single Colour Maximum Current 2.4A@12VDC / 1.3A@24VDC Storage Temperature -40°C to +75°C Operating Temperature -30°C to +65°C Maximum Power 30W Synchronisation 15 Unit Sync Diameter ⌀142mm LED Colour Blue LEDs Fuse Rating 5A Lens Colour Clear Lens Compliance ECE R10, ECE R65 - TB2, SAE J845 Class 1, California Title 13 Nominal Voltage 12-24VDC Mounting Option 3-Bolt Mount Cable Type Cable (Pigtail) LED Quantity 8LED IP Rating IP6K6, IP6K6K Flash Patterns 11 Flash Patterns Wire Length 400mm Conductor Cross-Section 0.5mm² (20AWG) Warranty 5 Year Warranty -
