Specifications
Product Specifications

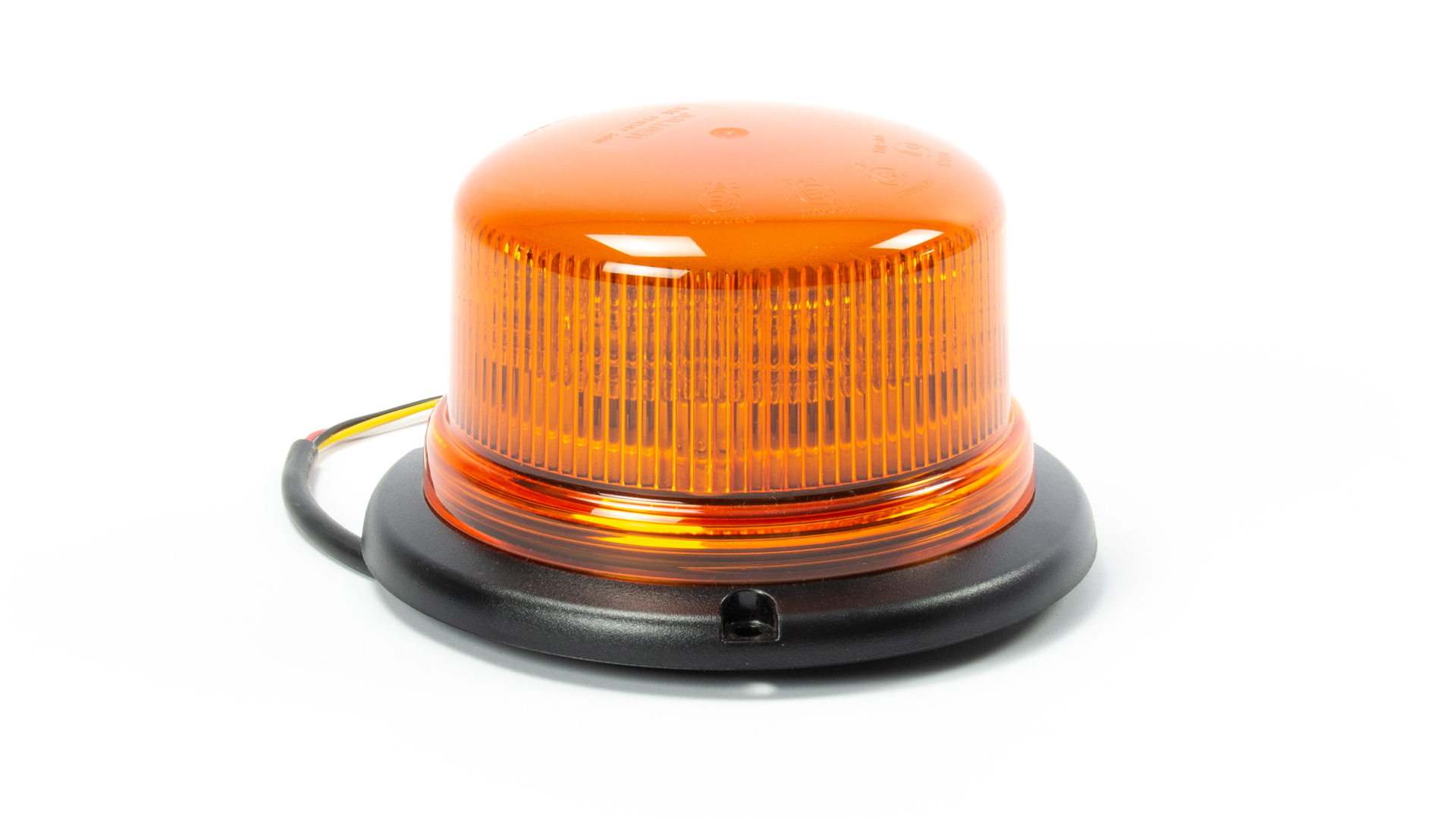

Product code 05200887 Product Name B16 Beacon - AA (3-Bolt Mount) - Airport Categories Lighting, B16 Standard, Beacons, B16 Beacons Product Type Products Dimensions Height 80mm Colour Type Single Colour Maximum Current 2.4A@12VDC / 1.3A@24VDC Storage Temperature -40°C to +75°C Operating Temperature -30°C to +65°C Maximum Power 30W Synchronisation 15 Unit Sync Diameter ⌀142mm LED Colour Amber LEDs Fuse Rating 5A Lens Colour Amber Lens Compliance ECE R10, CAA, EASA, ICAO Nominal Voltage 12-24VDC Mounting Option 3-Bolt Mount Cable Type Cable (Pigtail) LED Quantity 8LED IP Rating IP6K6, IP6K6K Flash Patterns 1 Flash Pattern Wire Length 400mm Conductor Cross-Section 0.5mm² (20AWG) Warranty 5 Year Warranty -
