Specifications
100,000 hours rated long-life LED.
Low profile design with only 80mm in height.
Certified powerful ECE R65 performance in all colour.
Weatherproof and shockproof capability for all environment.
Multi-units synchronisation in simultaneous or alternating flash.
Non-volatile flash pattern memory.
Reverse polarity protection.Product Specifications

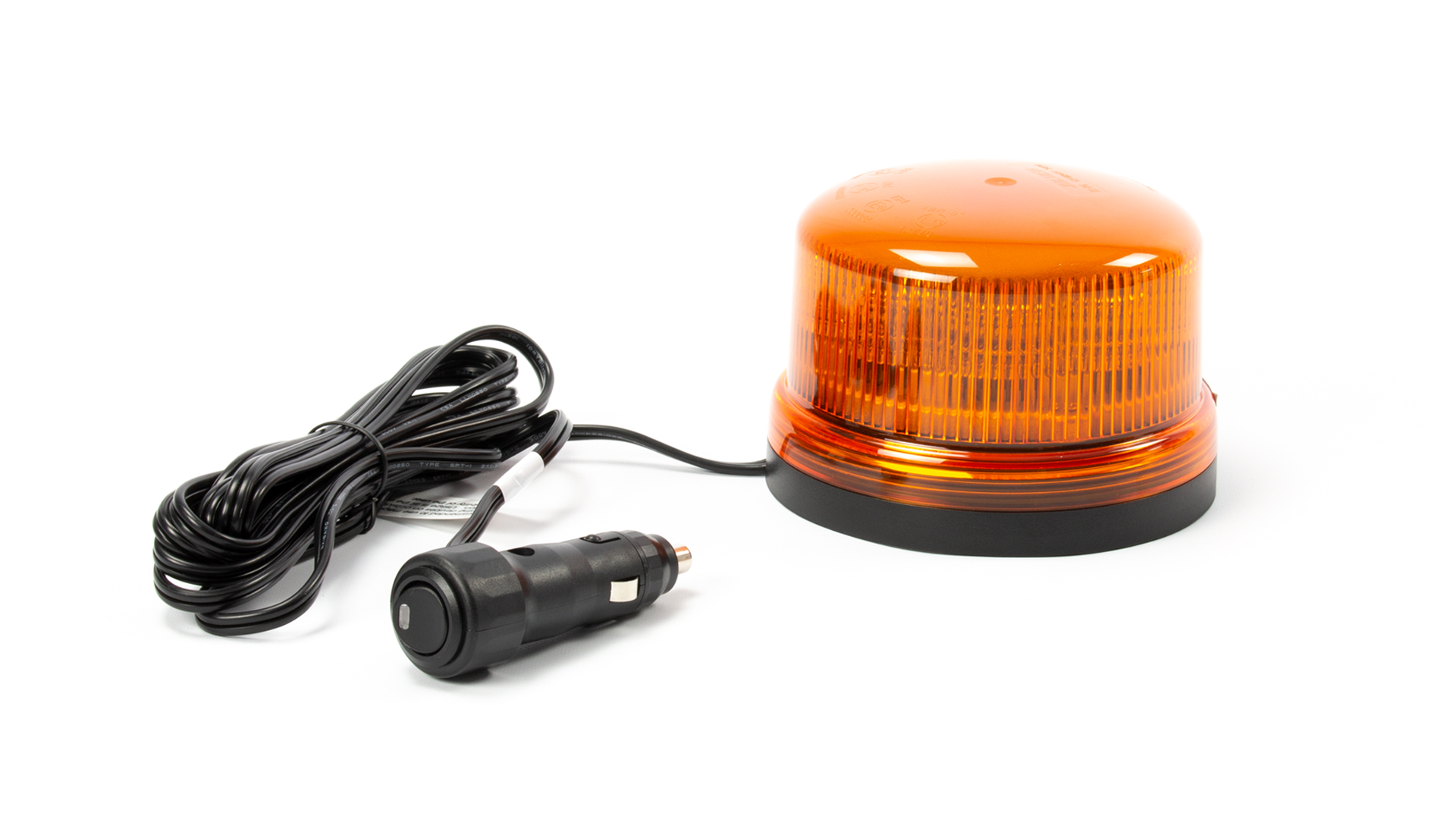

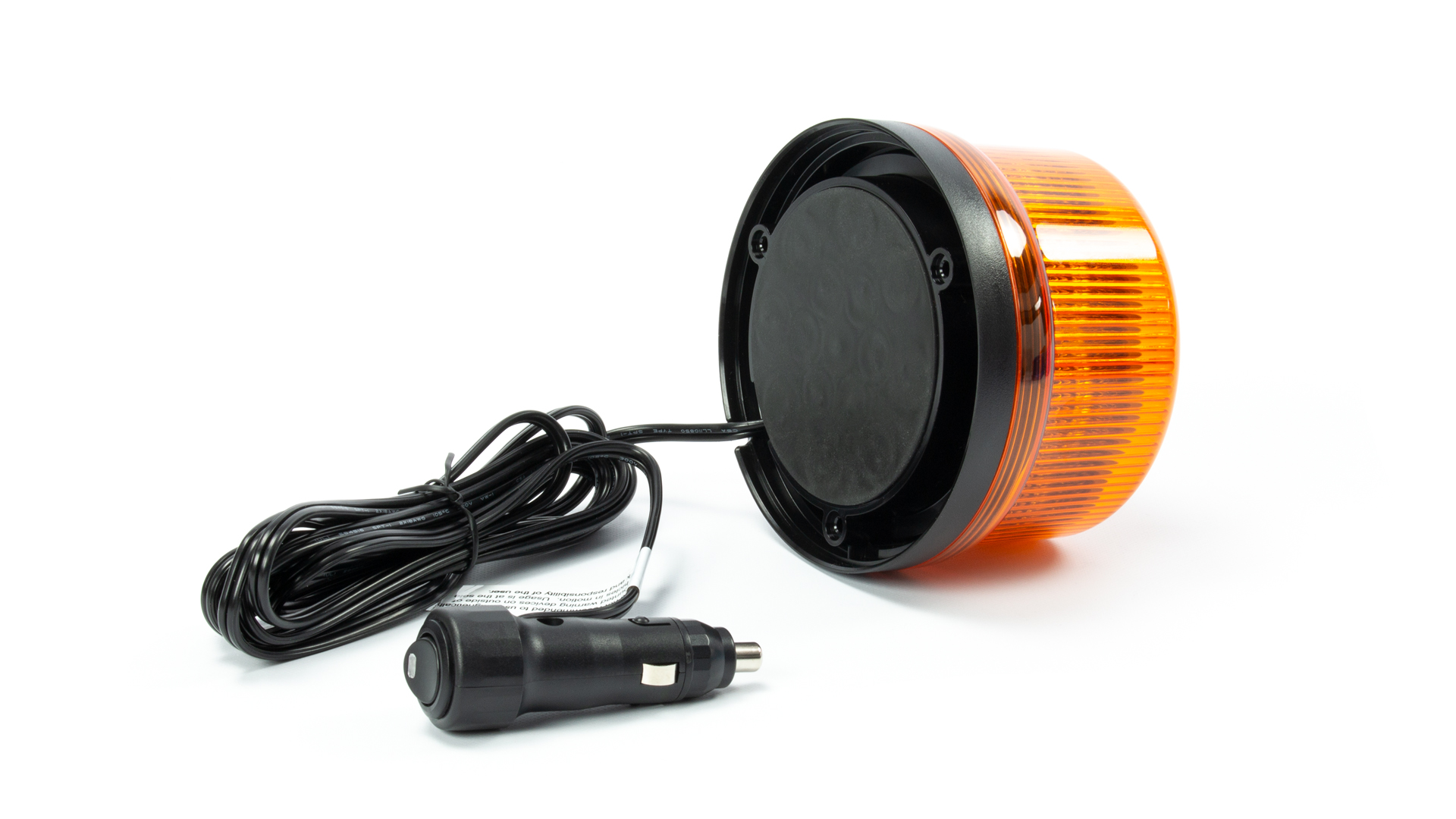

Product code 05200146 Product Name B16 - AA (Internal Power Magnetic Mount - Straight) Categories Warning Lights, B16 Standard, Beacons, B16 Beacons Product Type Products Dimensions Height 88mm (3.46") Colour Type Single Colour Maximum Current 2.4A@12VDC / 1.3A@24VDC Storage Temperature -40°C - +75°C Operating Temperature -30°C~+65°C Maximum Power 30W Synchronisation 15 Unit Synchronisation Connection Type Cigar Plug (Latching Switch) Diameter ⌀118mm (4.65") LED Colour Amber LEDs Fuse Rating 5A Lens Colour Amber Lens Compliance ECE-R10, ECE-R65 (TA1), SAE J845 Class 1, CA13 Input Voltage 12VDC~24VDC Mounting Option Power Magnetic Mount (Internal) Cable Type Cable (Straight) LED Elements 8x LEDs IP Rating IP6K6, IP6K6K Flash Patterns 11 Flash Patterns Wire Length 3000mm Gross Weight 1.16kg Warranty 5 Year Warranty -
