Specifications
Product Specifications

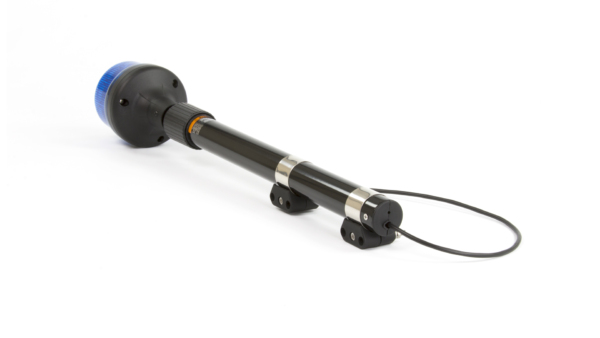

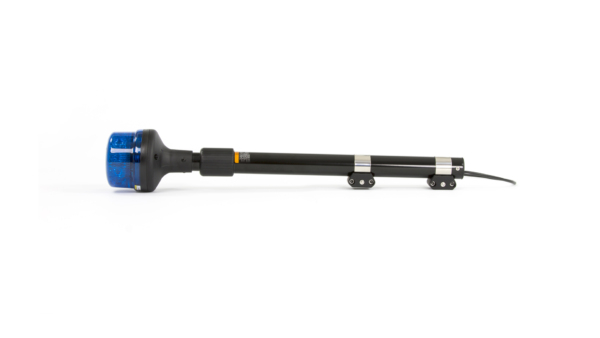

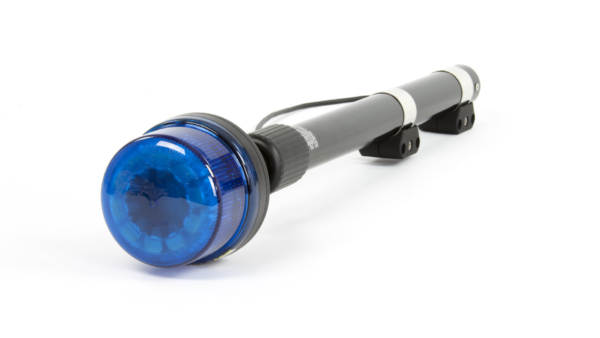

Product code 05200528 Product Name B16 Beacon - BB (Telescopic Pole Mount) Categories Lighting, B16 Standard, Beacons, B16 Beacons Product Type Products Dimensions Height 677mm ~ 1070mm Colour Type Single Colour Maximum Current 2.4A@12VDC / 1.3A@24VDC Operating Temperature -30°C to +65°C Maximum Power 30W Synchronisation 15 Unit Sync Diameter ⌀118mm LED Colour Blue LEDs Fuse Rating 5A Lens Colour Blue Lens Compliance ECE R10, ECE R65 - TB1, SAE J845 Class 1, California Title 13 Nominal Voltage 12-24VDC Mounting Option Telescopic Pole Mount Cable Type Cable (Pigtail) LED Quantity 8LED IP Rating IPX6 Flash Patterns 11 Flash Patterns Warranty 5 Year Warranty -
Spare Parts
-
-
Mounting
-
- Downloads
