Specifications
EMC safety compliance.
Newly designed optic with powerful and even light output.
Non-volatile memory recalls last flash pattern used at power up.
Weatherproof and vibration resistant design for external or internal use.
Long life LEDs rated to 100,000 hours of operation.
Reverse polarity protection.Product Specifications

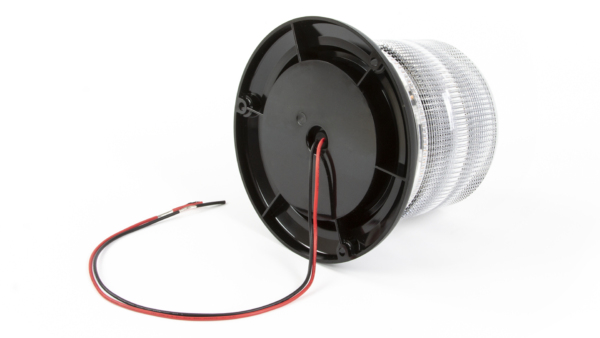

Product code 05180288 Product Name B18 Beacon - BC (3-Bolt Mount) Categories Lighting, Beacons, B18 Beacons Product Type Products Dimensions Height 116mm Colour Type Single Colour Maximum Current 1.86A@12VDC / 0.93A@24VDC Storage Temperature -40°C to +75°C Operating Temperature -30°C to +65°C Maximum Power 22.3W Diameter ⌀142mm LED Colour Blue LEDs Fuse Rating 3A Lens Colour Clear Lens Compliance ECE R10, ECE R65 - TB1, SAE J845 Class 1 Nominal Voltage 12-24VDC Mounting Option 3-Bolt Mount Cable Type Cable (Pigtail) LED Quantity 15LED IP Rating IPX6 Flash Patterns 11 Flash Patterns Wire Length 400mm Conductor Cross-Section 0.75mm² (18AWG) Warranty 3 Year Warranty -
