Specifications
EMC safety compliance.
Newly designed optic with powerful and even light output.
Non-volatile memory recalls last flash pattern used at power up.
Weatherproof and vibration resistant design for external or internal use.
Long life LEDs rated to 100,000 hours of operation.
Reverse polarity protection.Product Specifications

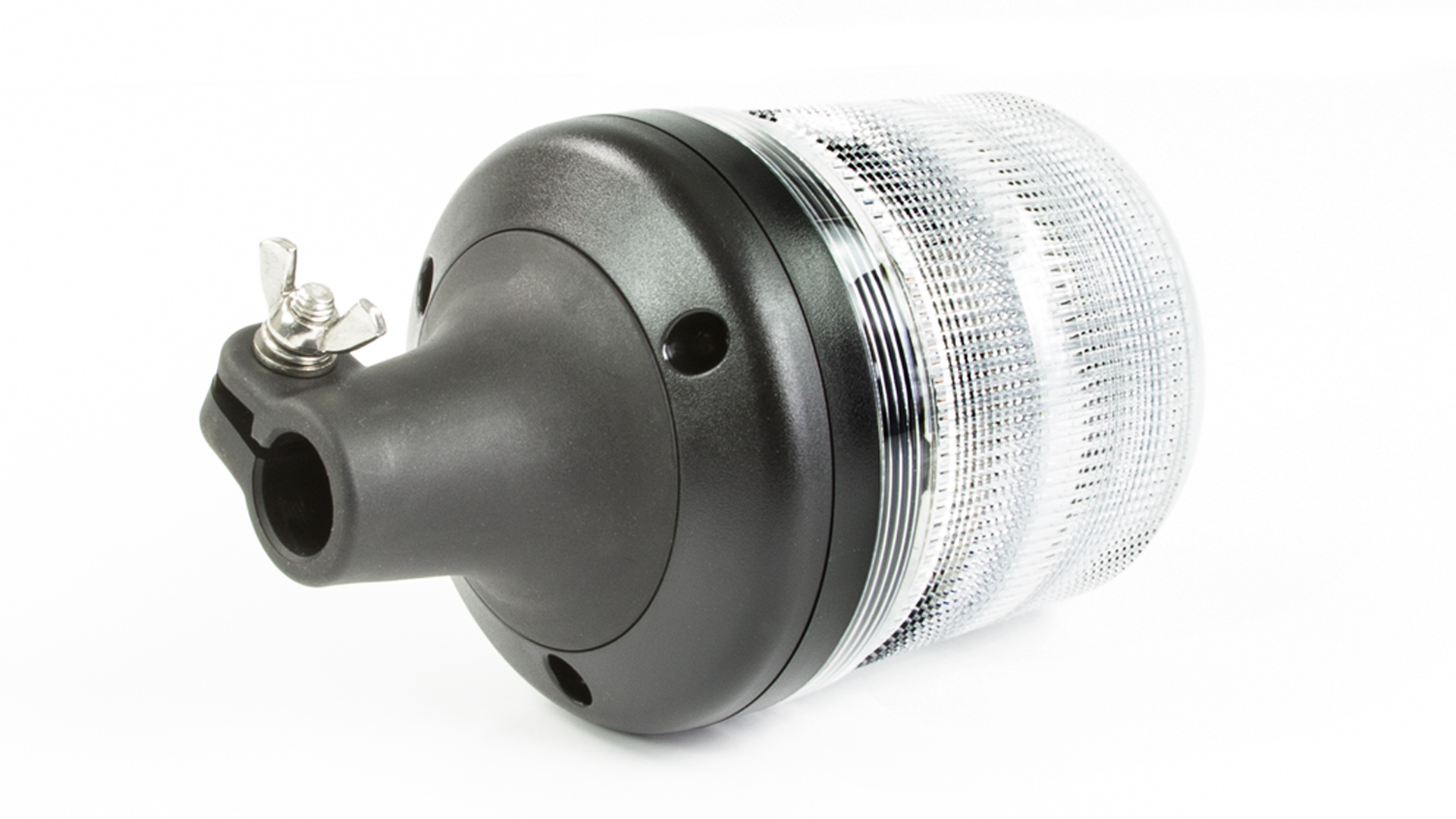

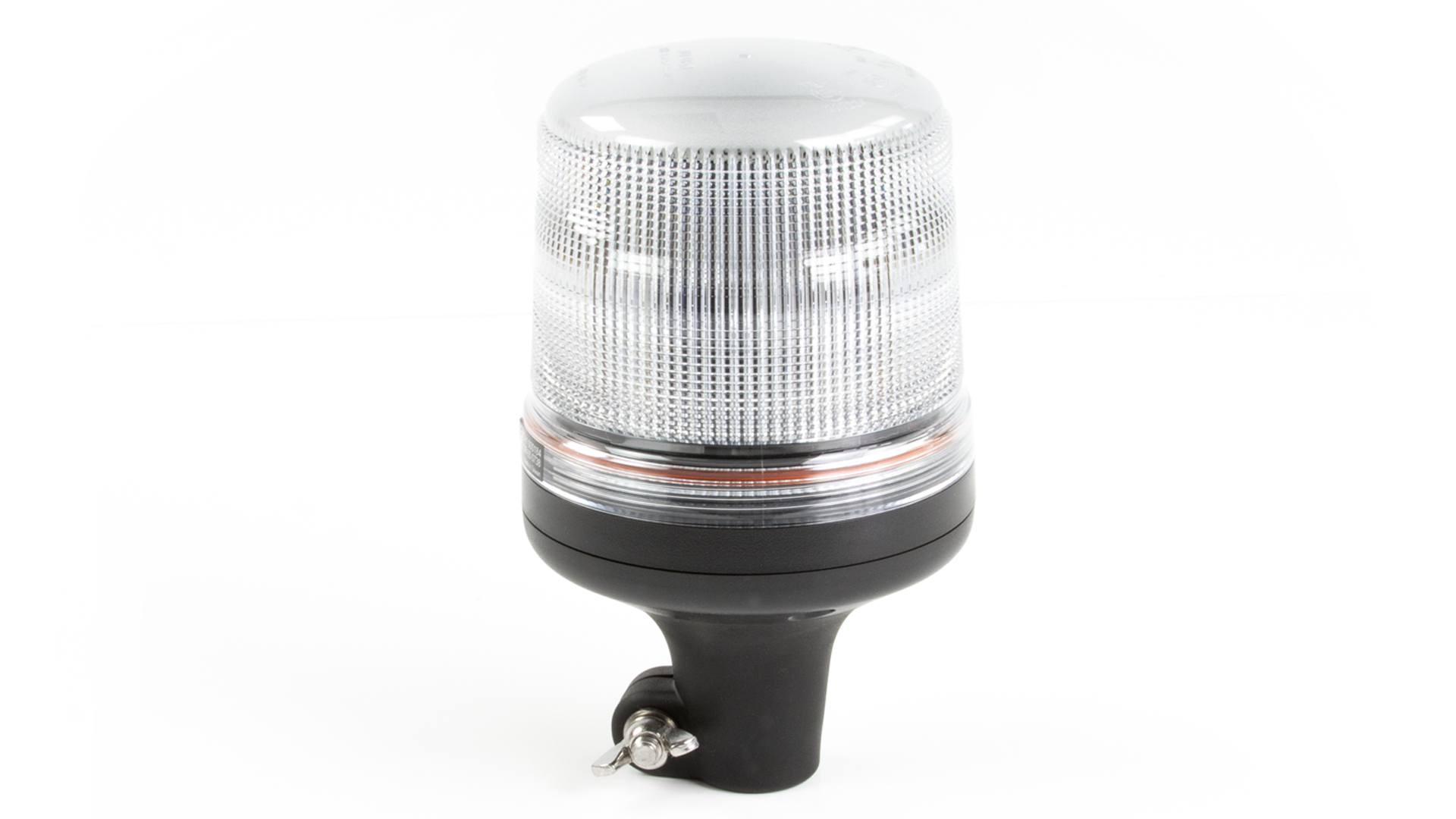

Product code 05180264 Product Name B18 - AC (DIN Pole Mount) Categories Warning Lights, Beacons, B18 Series Product Type Products Dimensions Length/width 118mm (4.65") Dimensions Height 193.8mm (7.63") Dimensions Depth 118mm (4.65") Colour Type Single Colour Fuse Rating 3A Maximum Current 1.86A@12VDC / 0.93A@24VDC Operating Temperature -30°C~+65°C Maximum Power 22.3W LED Colour Amber LEDs Lens Colour Clear Lens Compliance ECE-R10, ECE-R65 (TA1), SAE J845 Class 1 Input Voltage 12VDC~24VDC Mounting Option DIN Pole Mount Cable Type Cable (Pigtail) LED Elements 15x LEDs IP Rating IPX6 Flash Patterns 11 Flash Patterns Net Weight 0.83kg Gross Weight 0.83kg Warranty 3 Year Warranty -
