Specifications
EMC safety compliance.
Multi-voltage input 12-24VDC.
Newly designed optic with powerful and even light output.
Non-volatile memory recalls last flash pattern used at power up.
Weatherproof and vibration resistant design for external or internal use.
Long life LEDs rated to 100,000 hours of operation.
Reverse polarity protection.Product Specifications

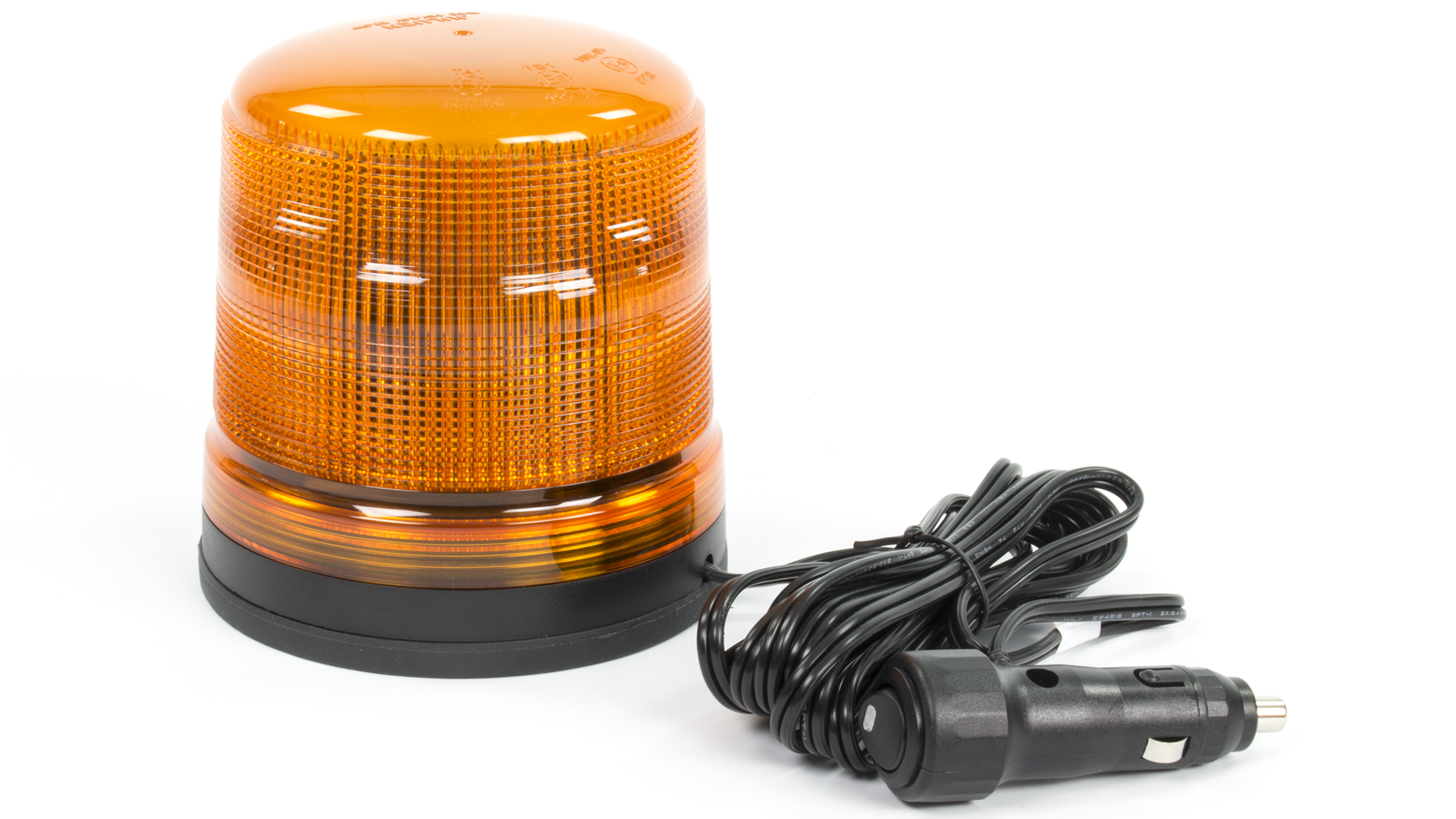

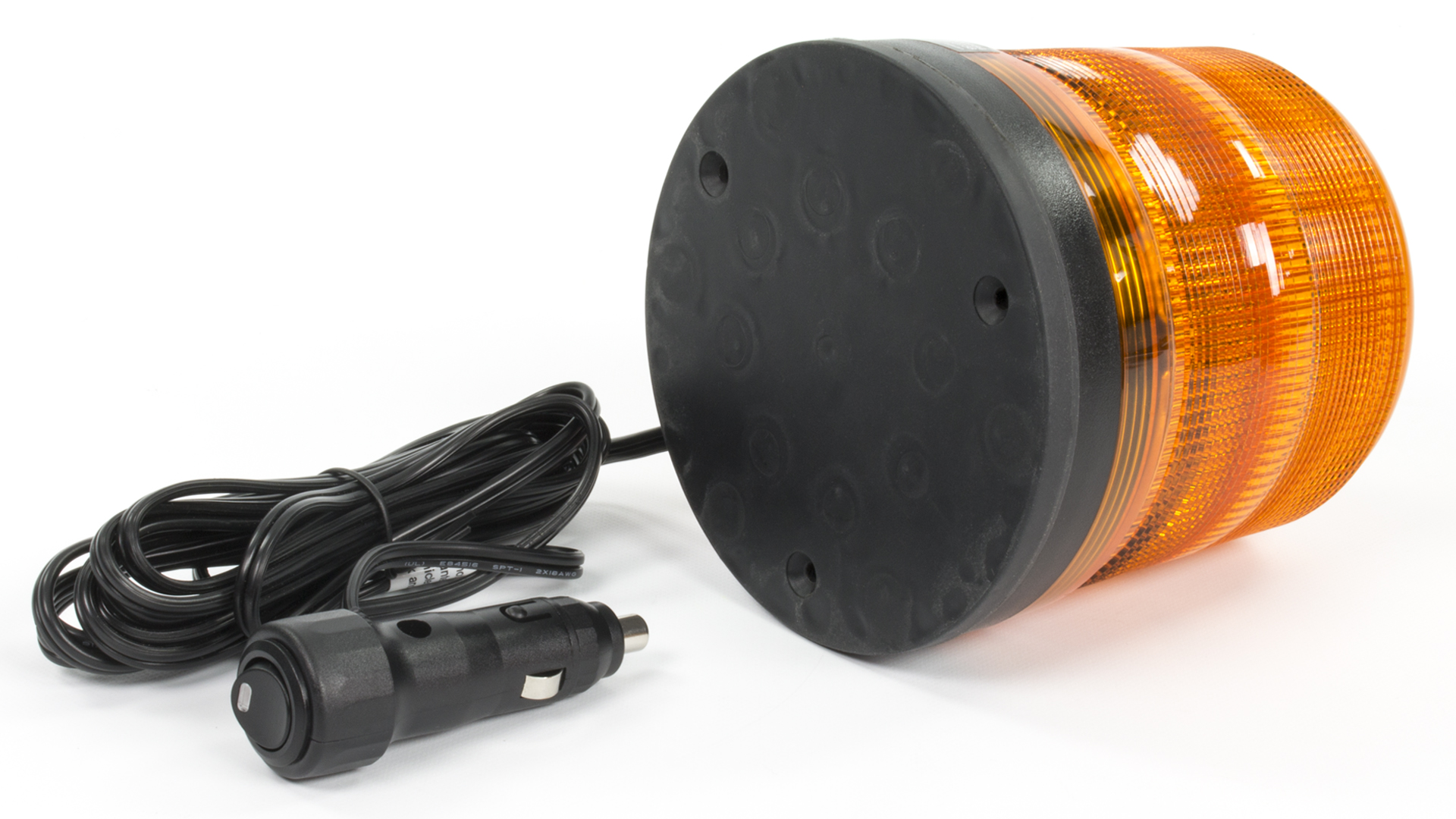

Product code 05180080 Product Name B18 - AA (External Power Magnetic Mount - Straight) Categories Warning Lights, Beacons, B18 Beacons Product Type Products Dimensions Height 115.8mm (4.56") Colour Type Single Colour Maximum Current 1.86A@12VDC / 0.93A@24VDC Storage Temperature -40°C - +75°C Operating Temperature -30°C~+65°C Maximum Power 22.3W Connection Type Cigar Plug (Latching Switch) Diameter ⌀118mm (4.65") LED Colour Amber LEDs Fuse Rating 3A Lens Colour Amber Lens Compliance ECE-R10, ECE-R65 (TA1), SAE J845 Class 1 Input Voltage 12VDC~24VDC Mounting Option Power Magnetic Mount (External) Cable Type Cable (Straight) LED Elements 15x LEDs IP Rating IPX6 Flash Patterns 11 Flash Patterns Wire Length 3000mm Gross Weight 1kg Conductor Cross-Section 0.75mm² (18AWG) Warranty 3 Year Warranty -
Spare Parts
-
-
- Base Plates
- Polycarbonate (PC)
- ⌀142mm (5.59")
- Tall Base 3-Bolt Mount
-
-
-
-
-
-
-
-
-
-
-
-
Mounting
-
- Stem
- Rubber, Steel
- DIN Pole Mount
- Circular 2 Hole Mounting Flange
New Product
-
- Stem
- Rubber, Steel
- DIN Pole Mount
- 2 Hole Horizontal Mounting Plate
New Product
-
New Product
-
- Stem
- Rubber, Steel
- DIN Pole Mount
- Clamping Flange
New Product
-
New Product
-
- Stem
- Rubber, Steel
- DIN Pole Mount
- 2 Hole Vertical Mounting Plate
New Product
-
New Product
-
-
-
-
- Downloads
