Specifications
EMC safety compliance.
Multi-voltage input 12-24VDC.
Newly designed optic with powerful and even light output.
Non-volatile memory recalls last flash pattern used at power up.
Weatherproof and vibration resistant design for external or internal use.
Long life LEDs rated to 100,000 hours of operation.
Reverse polarity protection.Product Specifications

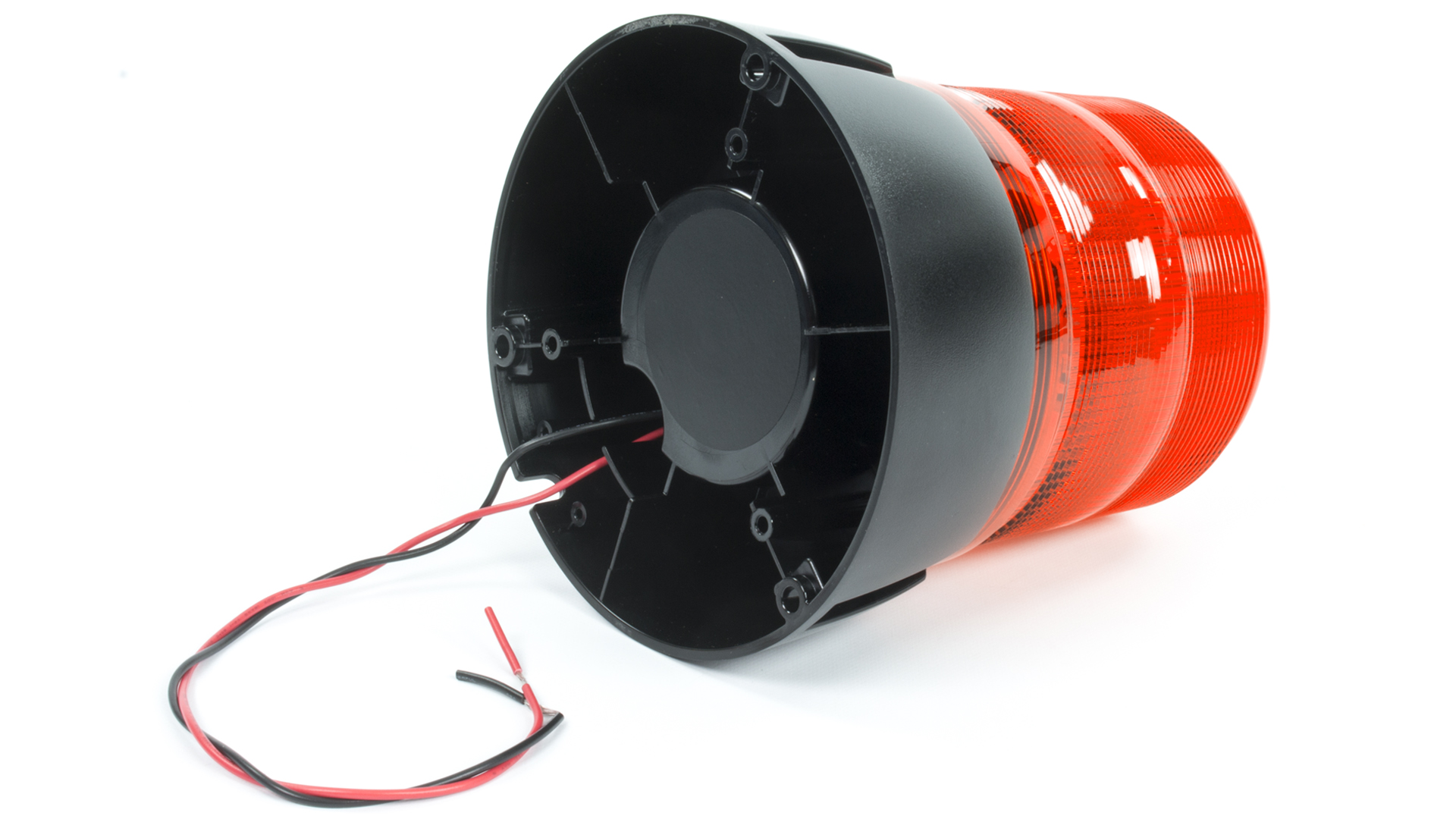

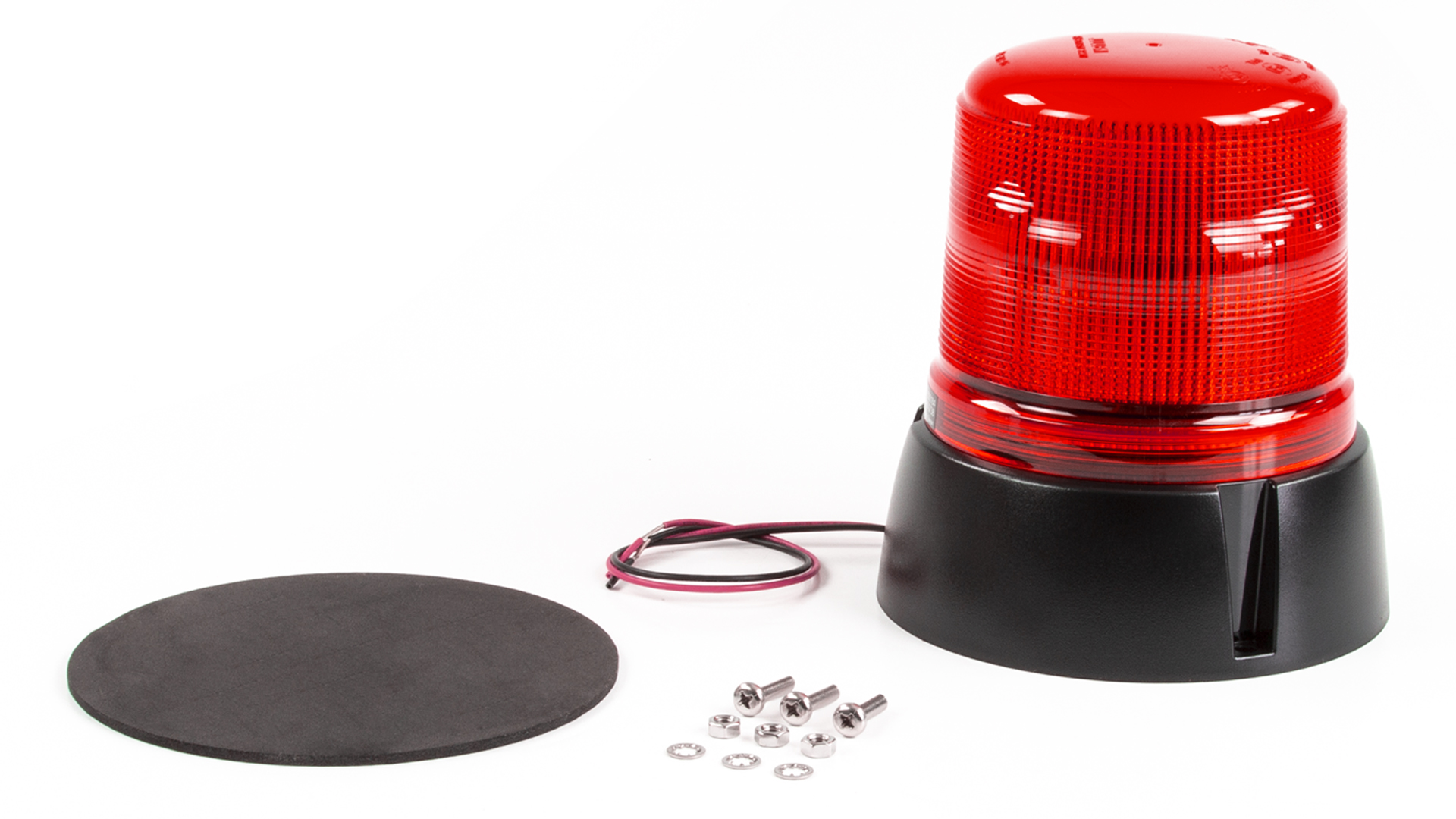

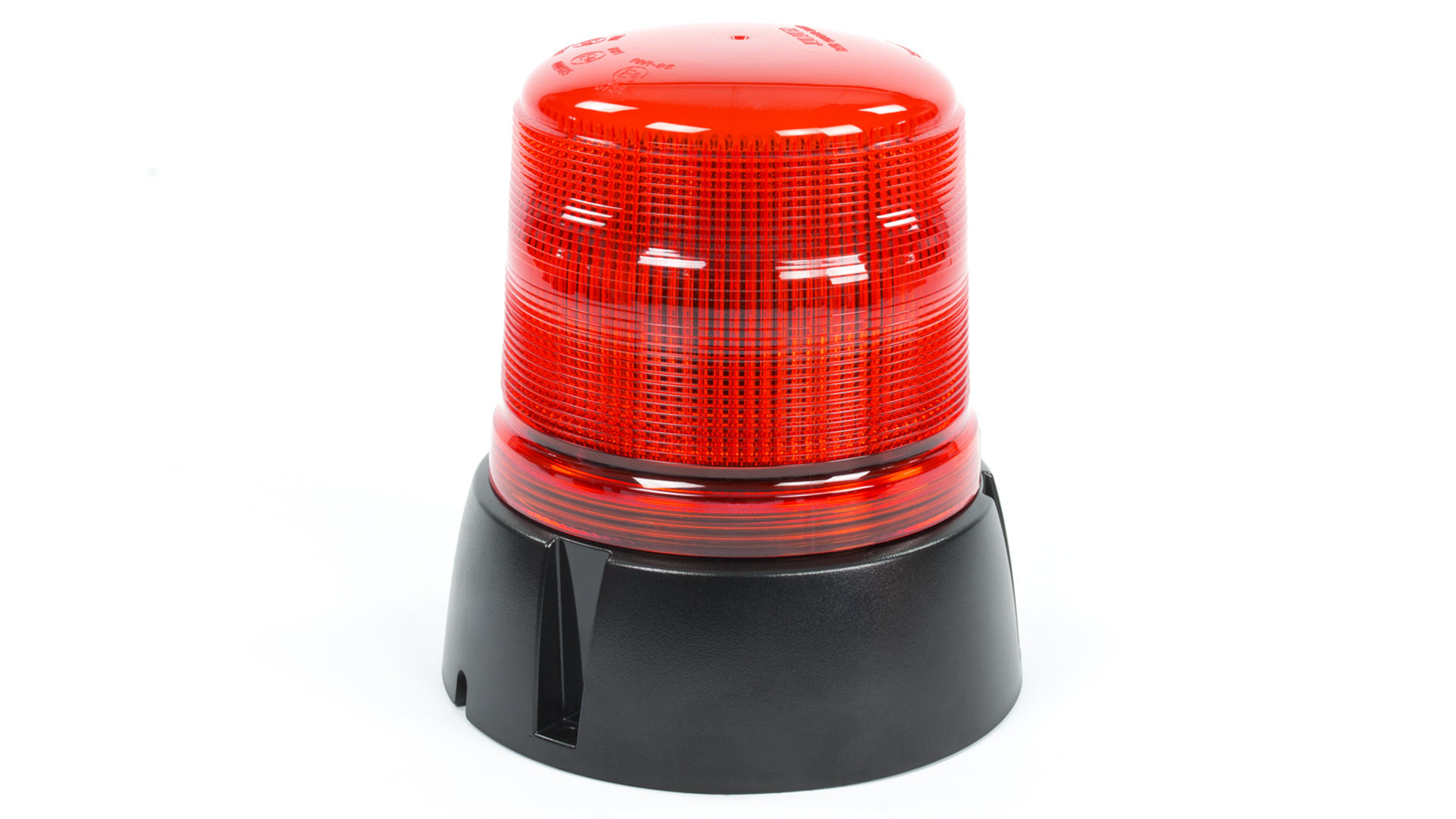

Product code 05180356 Product Name B18 Beacon - RR (Tall Base 3-Bolt Mount) Categories Warning Lights, Beacons, B18 Beacons Product Type Products Dimensions Height 154.3mm (6.08") Colour Type Single Colour Storage Temperature -40°C - +75°C Maximum Current 1.86A@12VDC / 0.93A@24VDC Operating Temperature -30°C~+65°C Maximum Power 22.3W Diameter ⌀142mm (5.59") LED Colour Red LEDs Fuse Rating 3A Lens Colour Red Lens Compliance ECE-R10, SAE J845 Class 1 Input Voltage 12VDC~24VDC Mounting Option Tall Base 3-Bolt Mount Cable Type Cable (Pigtail) LED Quantity 15x LEDs IP Rating IPX6 Flash Patterns 11 Flash Patterns Wire Length 400mm Gross Weight 0.83kg Conductor Cross-Section 0.75mm² (18AWG) Warranty 3 Year Warranty -
