Specifications

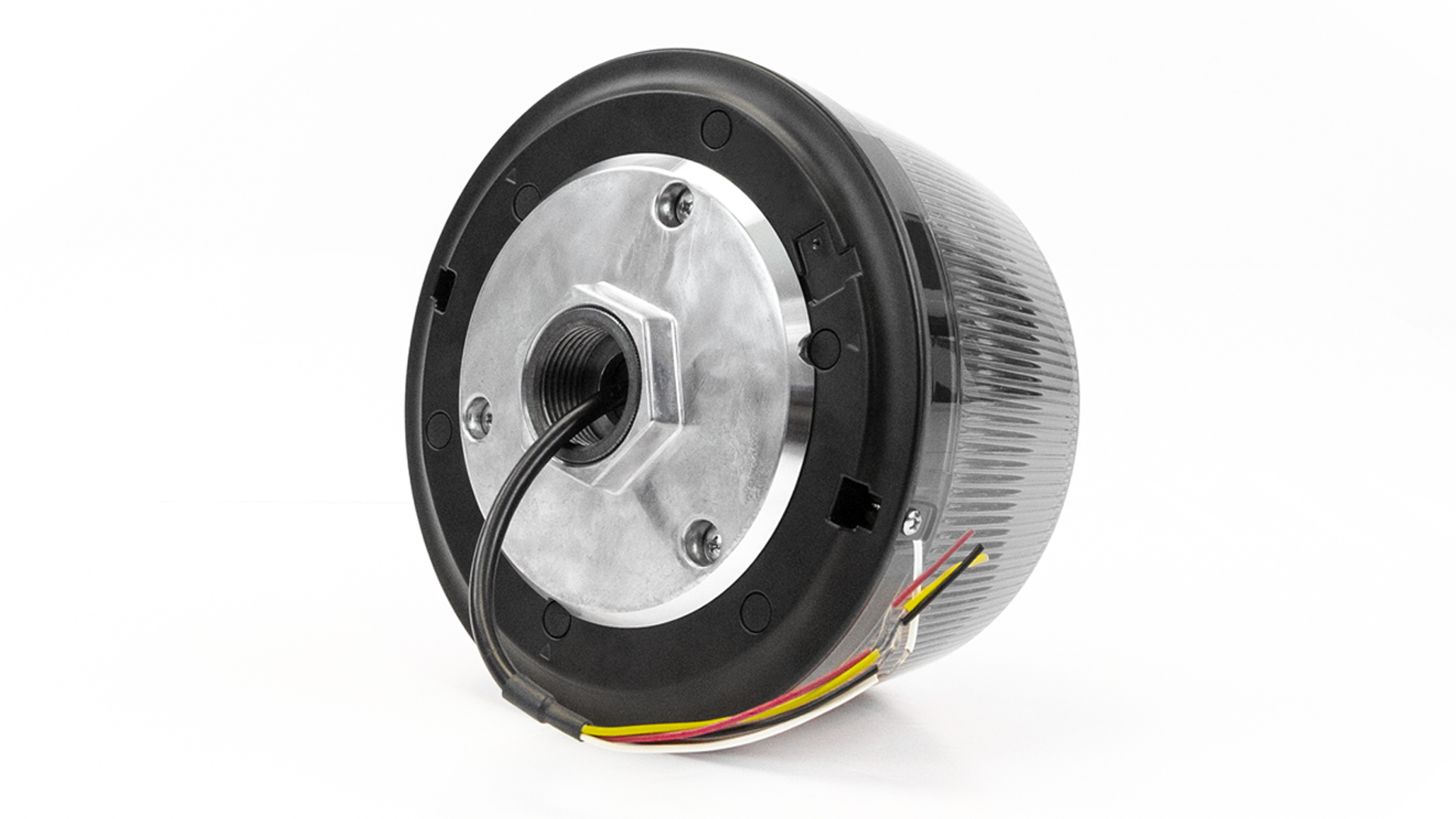

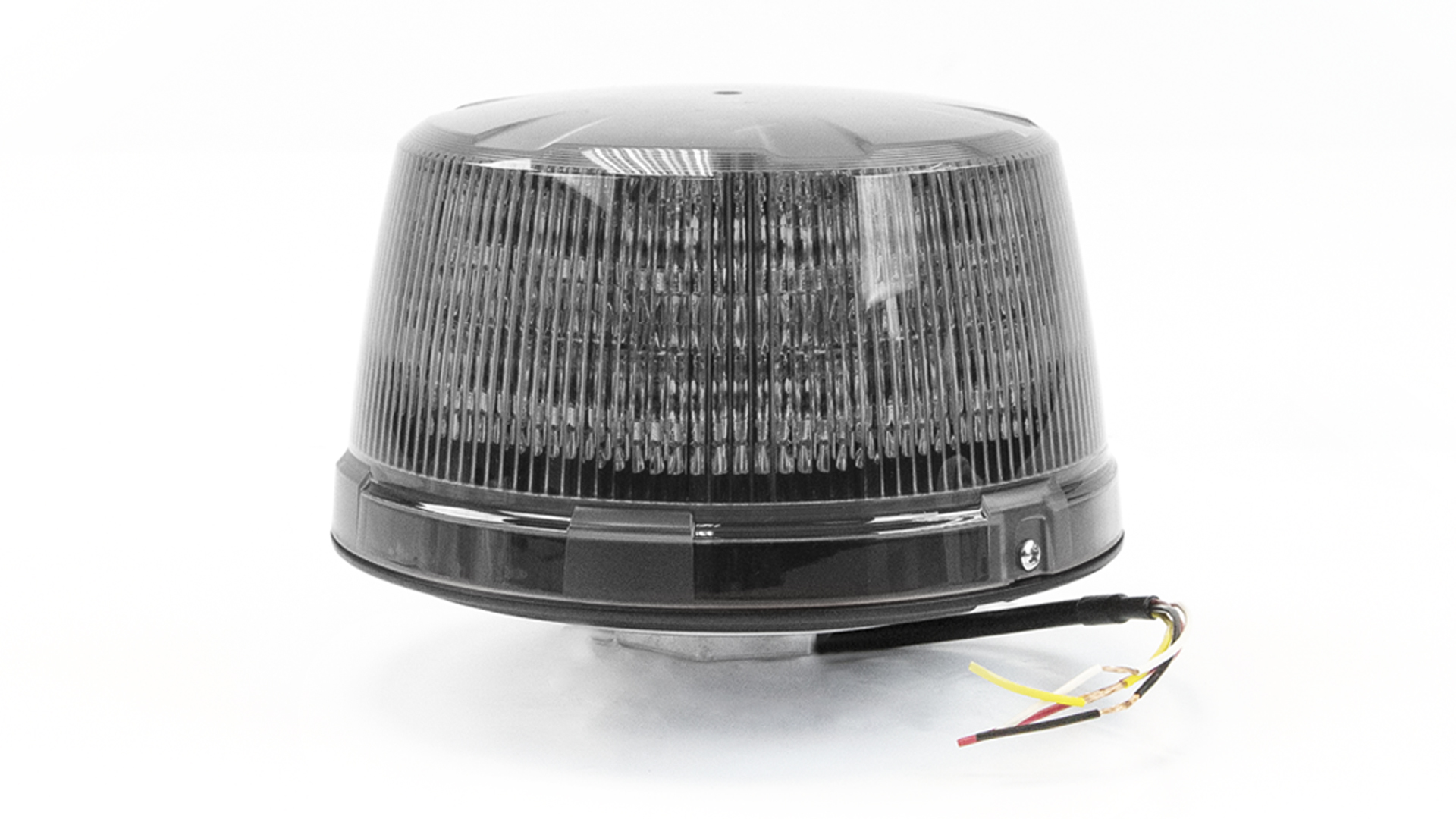

Heavy duty, aluminium base, wide-diameter LED Beacon.
High powered LEDs surrounded with upward LEDS for superior performance and all-round irection warning effect.
Weatherproof and shockproof capability for all enironments.
Premium polycarbonate lens and d-fuser matrix optics.Product Specifications
Product code 05170357 Product Name B19 Beacon - AC (Pipe Mount) Categories Warning Lights, Beacons, B19 Beacons Product Type Products Dimensions Length 184.5mm (7.26") Dimensions Height 126.69mm (4.99") Dimensions Width 184.5mm (7.26") Colour Type Single Colour Storage Temperature -40°C - +75°C Maximum Current 5.56A@12DVC / 2.78A@24DVC Operating Temperature -20°C~+65°C Maximum Power 66.8W Synchronisation 15 Unit Synchronisation Diameter ⌀182mm (7.17") LED Colour Amber LEDs Fuse Rating 5A Lens Colour Clear Lens Compliance ECE-R10, ECE-R65 (TA1), SAE J845 Class 1, CA13 Input Voltage 12VDC~24VDC Mounting Option Pipe Mount Cable Type Cable (Pigtail) LED Quantity 24x LEDs (12x Upwards) IP Rating IPX5 Flash Patterns 14 Flash Patterns Wire Length 200mm Gross Weight 1.5kg Conductor Cross-Section 0.5mm² (20AWG) Warranty 5 Year Warranty -
