Specifications

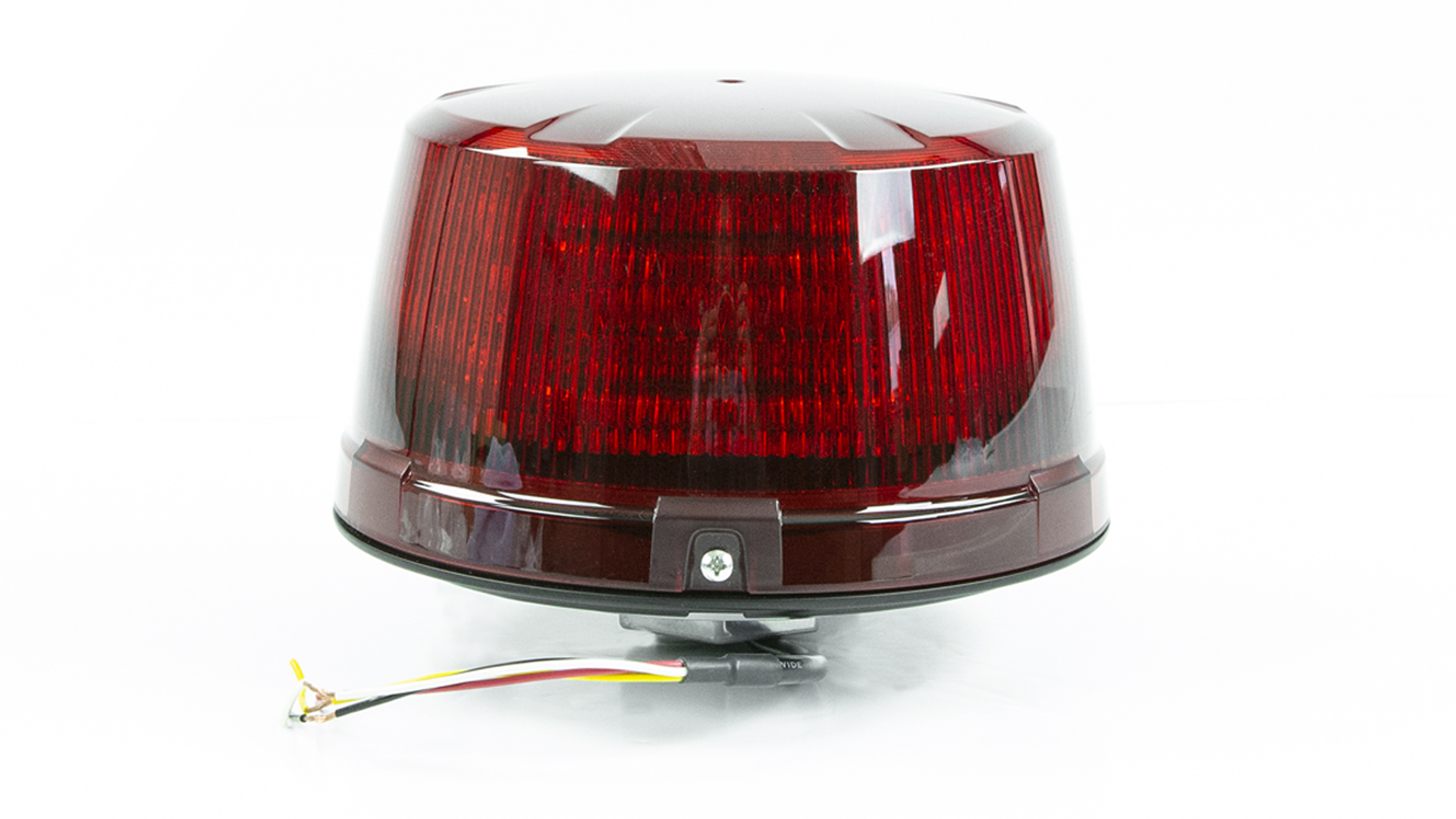

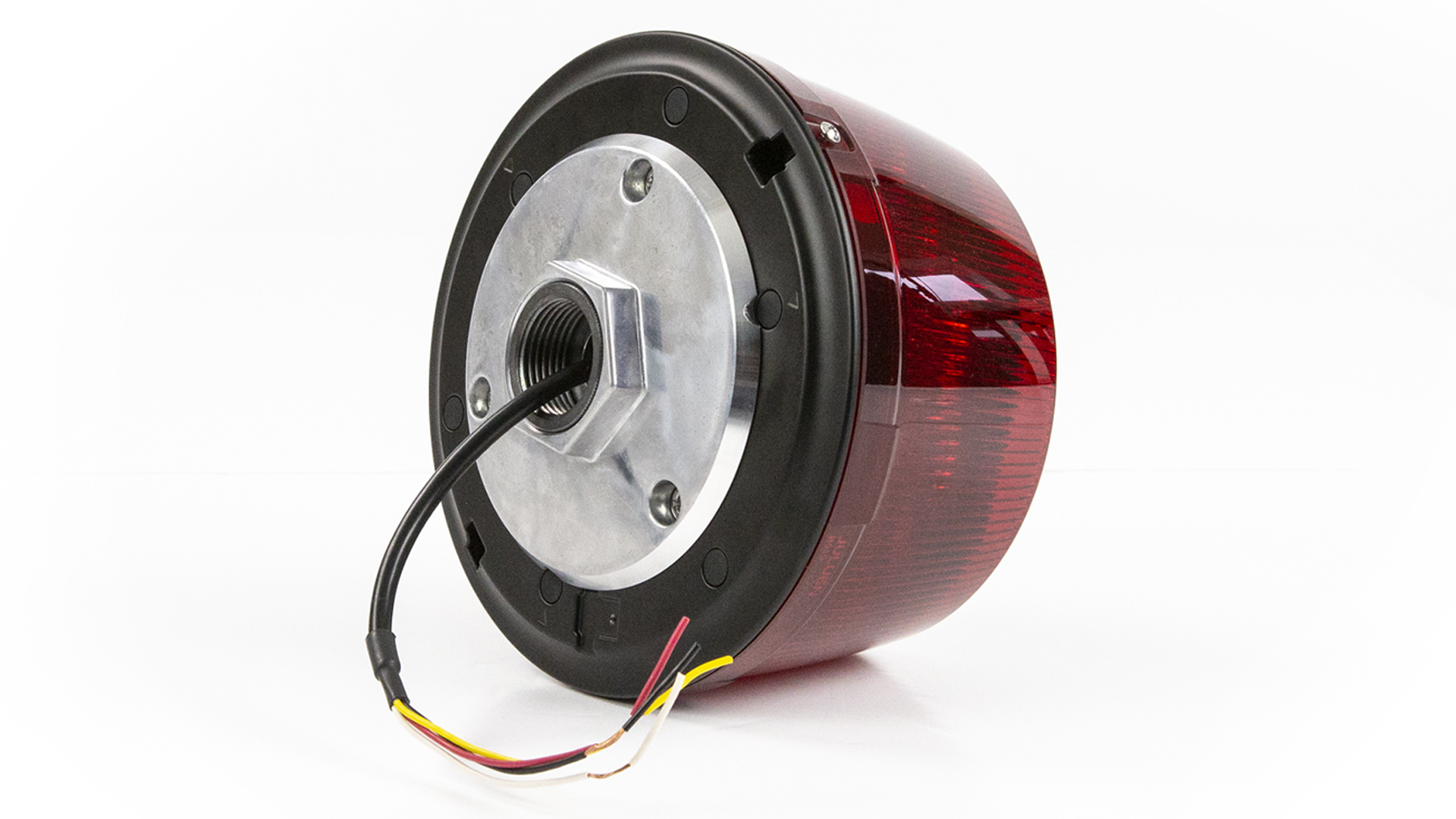

Heavy duty, aluminium base, wide-diameter LED Beacon.
High powered LEDs surrounded with upward LEDS for superior performance and all-round irection warning effect.
Weatherproof and shockproof capability for all enironments.
Premium polycarbonate lens and d-fuser matrix optics.Product Specifications
Product code 05170180 Product Name B19 - RR (Pipe Mount) Categories Warning Lights, Beacons, B19 Beacons Product Type Products Dimensions Length/width 184.5mm (7.26") Dimensions Height 126.69mm (4.99") Dimensions Depth 184.5mm (7.26") Colour Type Single Colour Maximum Current 5.56A@12DVC / 2.78A@24DVC Storage Temperature -40°C - +75°C Operating Temperature -20°C~+65°C Maximum Power 66.8W Synchronisation 15 Unit Synchronisation Diameter ⌀182mm (7.17") LED Colour Red LEDs Fuse Rating 5A Lens Colour Red Lens Compliance ECE-R10, SAE J845 Class 1, CA13 Input Voltage 12VDC~24VDC Mounting Option Pipe Mount Cable Type Cable (Pigtail) LED Elements 24x LEDs (12x Upwards) IP Rating IPX5 Flash Patterns 14 Flash Patterns Wire Length 200mm Gross Weight 1.5kg Conductor Cross-Section 0.5mm² (20AWG) Warranty 5 Year Warranty -
