Specifications
Non-volatile memory recalls last flash pattern used at power up.

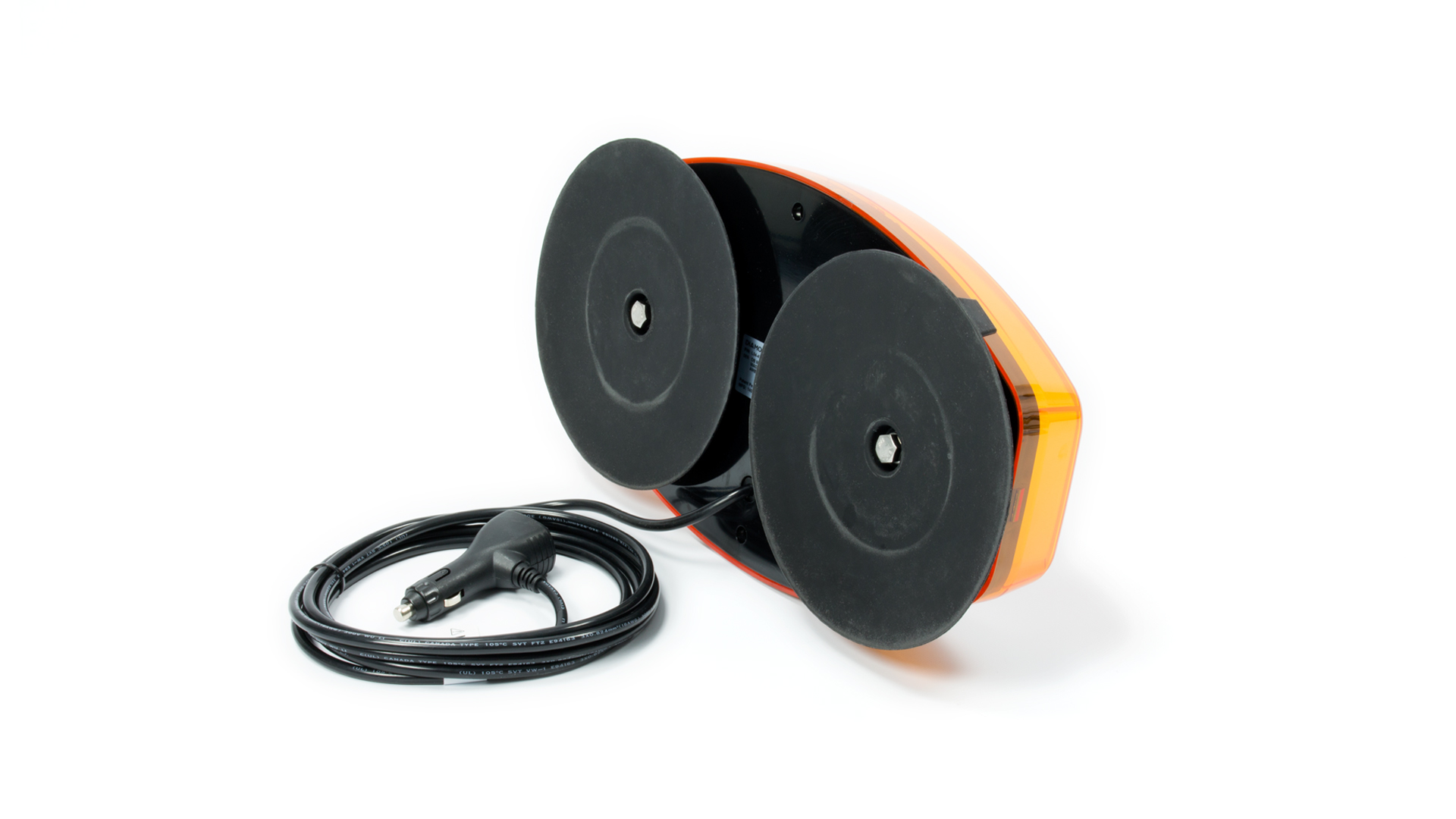

Magnetic mount comes with dual button cigar-plug.
LEDs rated to 100,000 hours of operation.
Water and vibration resistant design.
23 built-in selectable flash patterns.
Multiple units can be synchronized.
Reverse polarity protection.Product Specifications

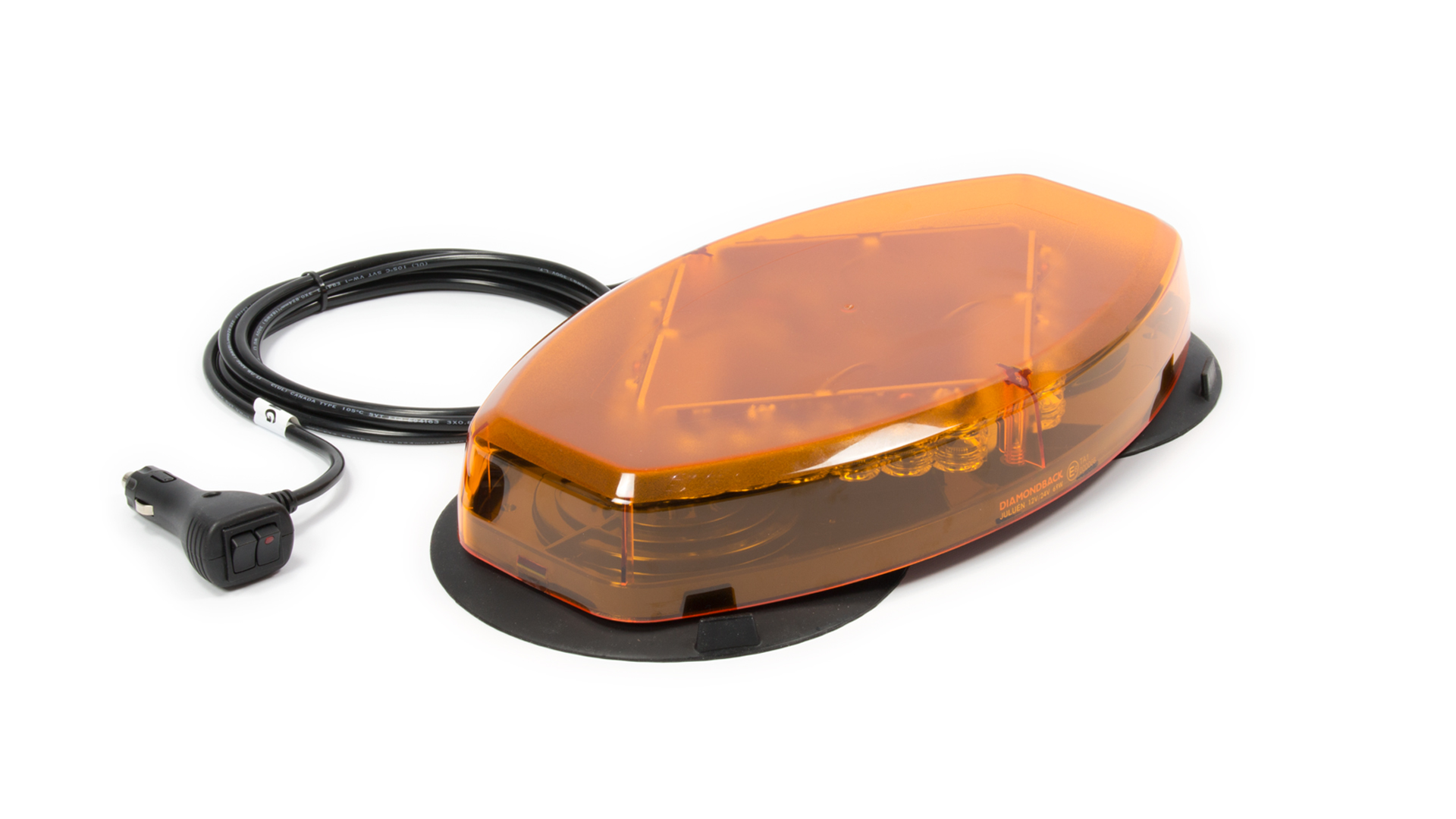

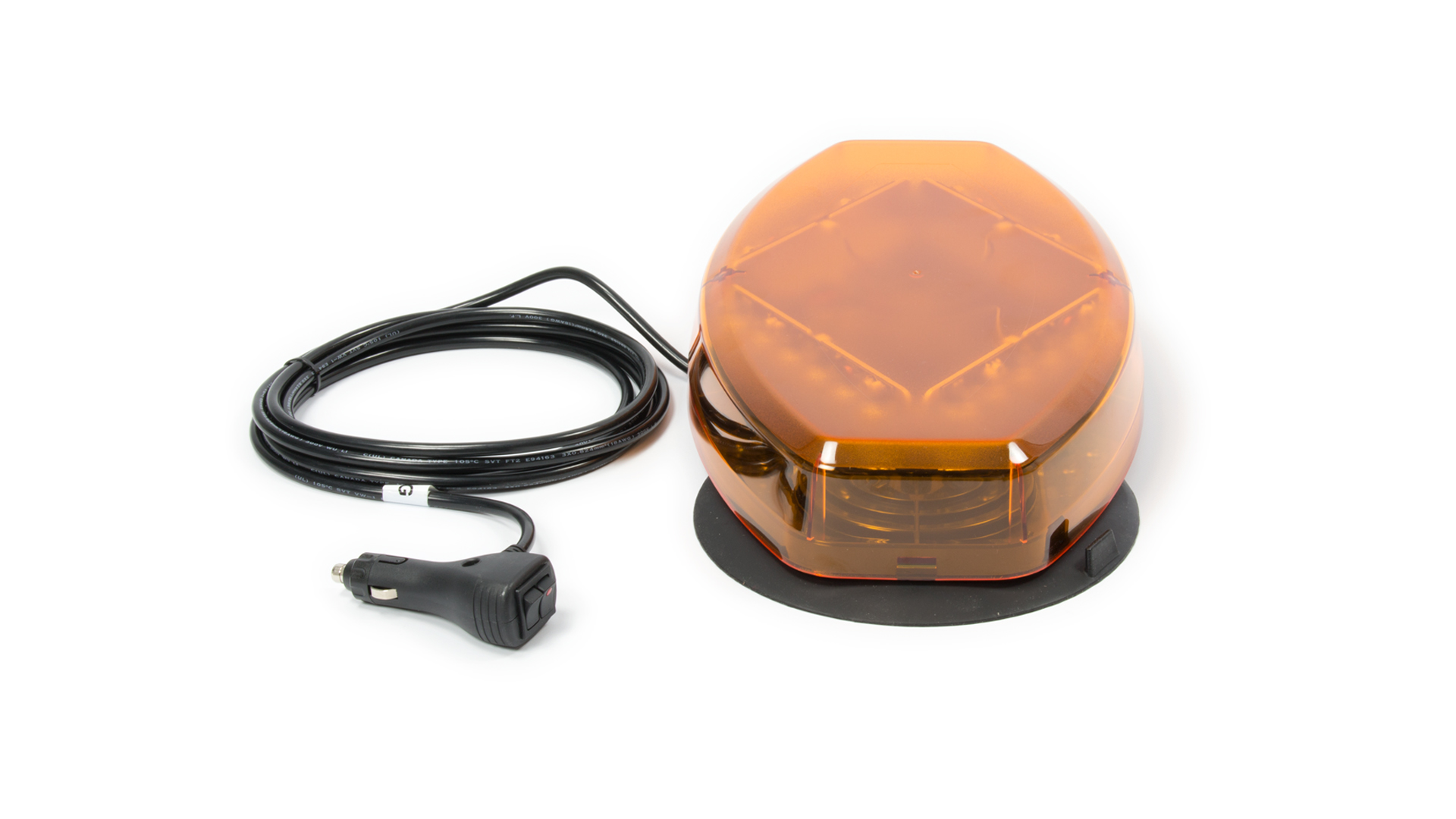

Product code 06350086 Product Name Diamondback - AA (Magnetic Vacuum Mount) Categories Warning Lights, Lightbars, Diamondback, Minibars Product Type Products Dimensions Length/width 355mm (14") Dimensions Height 53mm (2") Dimensions Depth 205mm (8") Colour Type Single Colour Fuse Rating 8A Maximum Current 5.75A@12VDC / 2.88A@24VDC Maximum Power 69W Lightbar Length 0355mm (14") Connection Type Cigar Plug (Latching & Momentary Switch) LED Colour Amber LEDs Lens Colour Amber Lens Compliance ECE-R10, ECE-R65 (TA1), SAE J845 Class 1 Optic Type D-Fuser Optics Input Voltage 12VDC~24VDC Mounting Option Magnetic Mount Cable Type Cable (Straight) LED Elements 24x LEDs Lighthead Quantity 4x Lightheads IP Rating IPX4K Flash Patterns 23 Flash Patterns Net Weight 2.85kg Gross Weight 2.85kg Warranty 5 Year Warranty -
