Specifications
Non-volatile memory recalls last flash pattern used at power up.

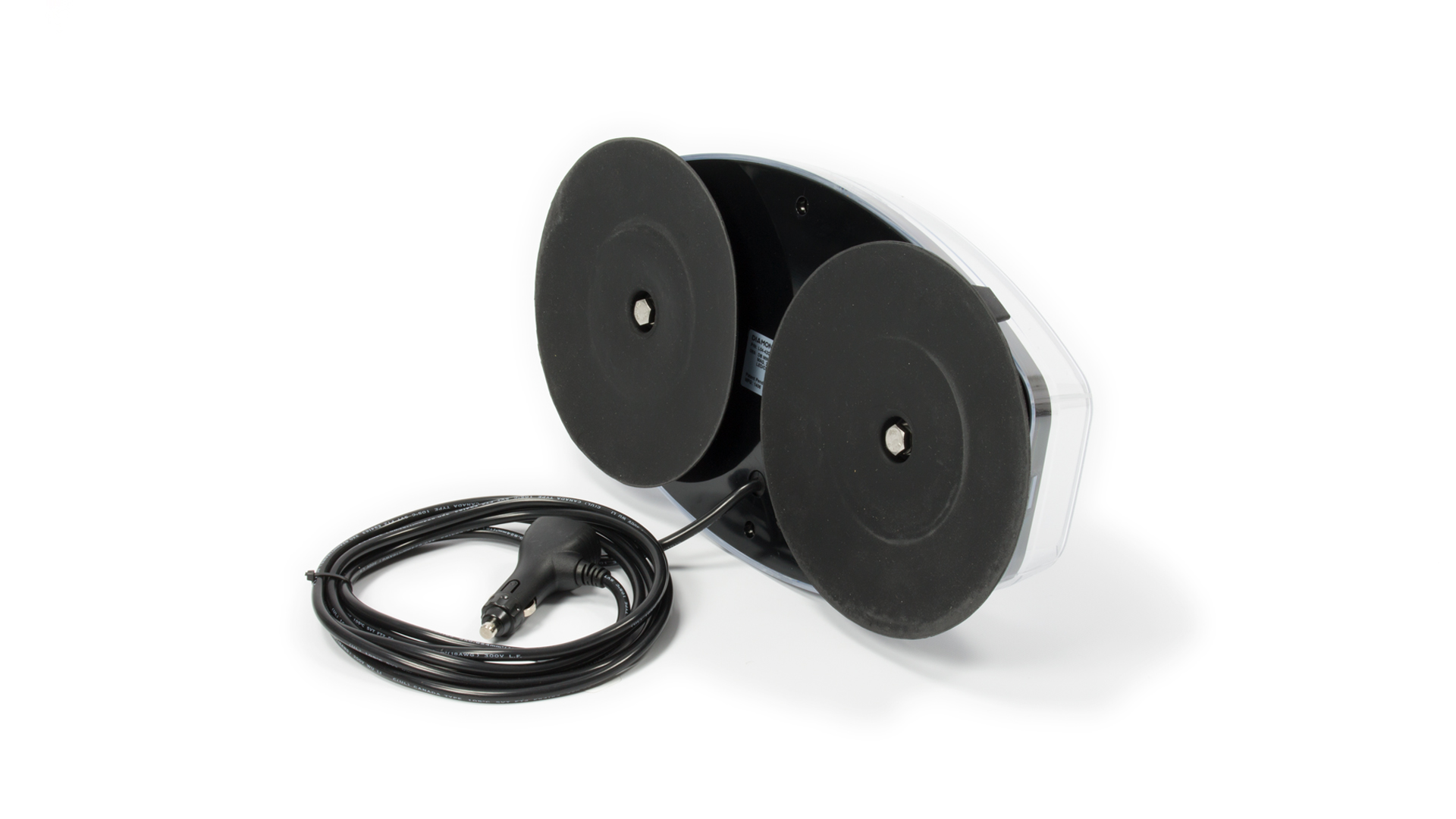

Magnetic mount comes with dual button cigar-plug.
LEDs rated to 100,000 hours of operation.
Water and vibration resistant design.
23 built-in selectable flash patterns.
Multiple units can be synchronized.
Reverse polarity protection.Product Specifications
Product code 06350024 Product Name Diamondback - AC (Magnetic Vacuum Mount) Categories Warning Lights, Lightbars, Diamondback, Minibars Product Type Products Dimensions Length/width 355mm (14") Dimensions Height 53mm (2") Dimensions Depth 205mm (8") Colour Type Single Colour Fuse Rating 8A Maximum Current 5.75A@12VDC / 2.88A@24VDC Maximum Power 69W Lightbar Length 0355mm (14") Connection Type Cigar Plug (Latching & Momentary Switch) LED Colour Amber LEDs Lens Colour Amber Lens Compliance ECE-R10, ECE-R65 (TA1), SAE J845 Class 1 Input Voltage 12VDC~24VDC Optic Type D-Fuser Optics Mounting Option Magnetic Mount Cable Type Cable (Straight) LED Elements 24x LEDs Lighthead Quantity 4x Lightheads Warranty 5 Year Warranty IP Rating IPX4K Warning Patterns 23 Warning Patterns Net Weight 2.85kg Gross Weight 2.85kg -
Spare Parts
-
- Lightheads
- Single Colour
- 6x LEDs
- 3 Pin Connector
- 12VDC~24VDC
-
-
-
Mounting
-
- Downloads
