Specifications
ECE R65 Class 1 homologated light performance.
An ideal solution for limited space: 13 mm (0.51″) in height and 85 mm (3.35″) in length.
Tinted lens provide less conspicuous appearance and smooth aesthetic for modern vehicles.
Multi-unit synchronization in simultaneous or alternating flash.
Optional Adjustable Bracket with for hood mount application.
Universal Multi-angle Brackets, mounting virtually anywhere.
Independent Cruise Mode in calmly steady-burn.Product Specifications

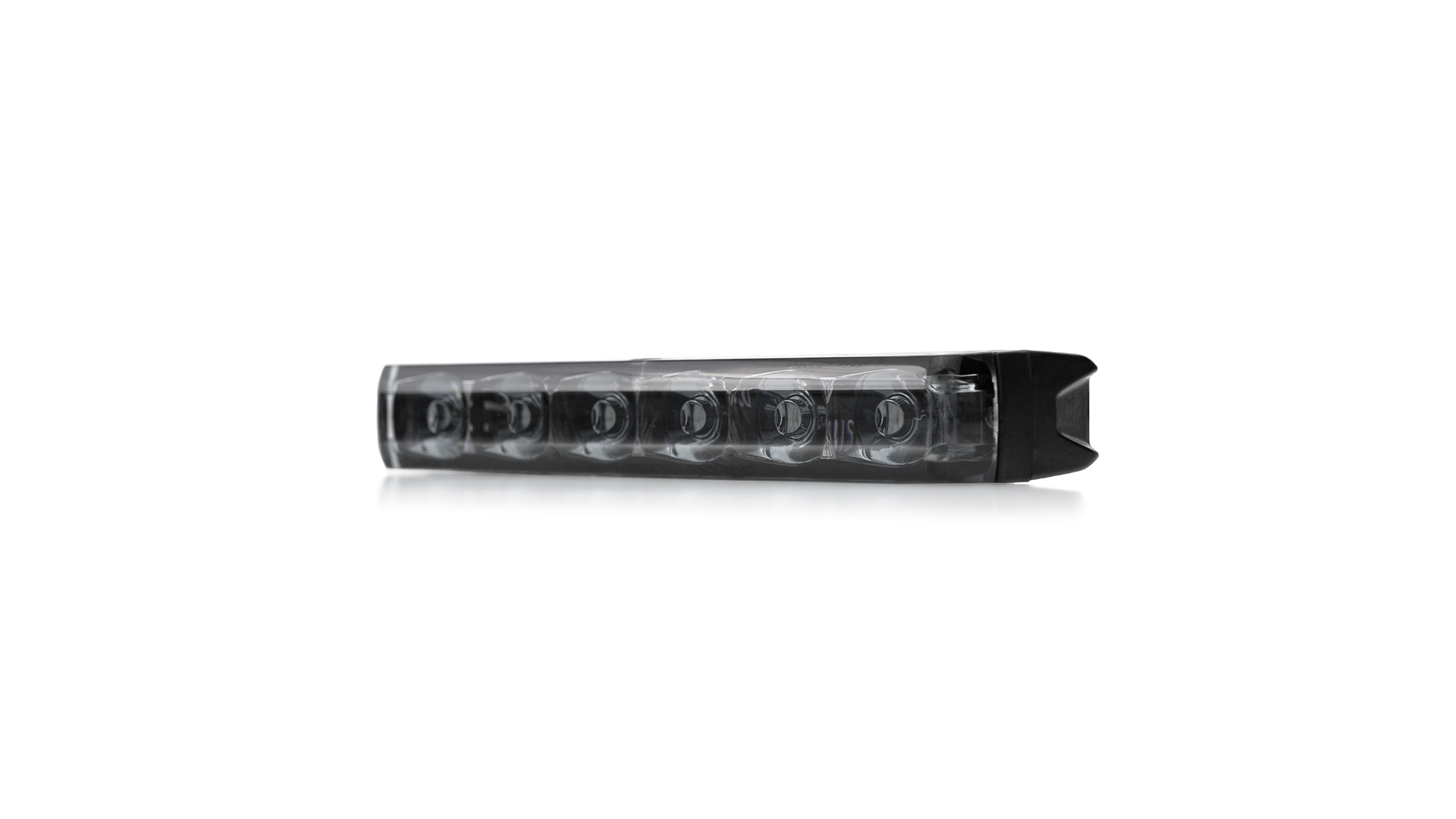

Product code 02180267 Product Name ED6 Warning Lighthead (Tinted Lens) - Amber Categories Warning Lamps, Directionals, Edge Dagger, Modules Product Type Products Default Functions Cruise Light Mode Colour Type Single Colour Storage Temperature -40°C - +75°C Maximum Current 1.2A@12VDC / 0.6A@24VDC Operating Temperature -40°C~+65°C Maximum Power 14.4W Synchronisation 20 Unit Sync LED Colour Amber LEDs Fuse Rating 2A Lens Colour Tinted Lens Compliance ECE-R10, ECE-R65 (XA1), SAE J595 Class 1, CA13 Optic Type T.I.R Optics Input Voltage 12VDC~24VDC Mounting Option Surface Mount Cable Type Cable (Pigtail) LED Quantity 6x LEDs IP Rating IPX8 Flash Patterns 18 Flash Patterns Wire Length 200mm Conductor Cross-Section 0.25mm² (24AWG) Warranty 5 Year Warranty -
Mounting
-
