Specifications
ECE R65 Class 2 homologated light performance.
An ideal solution for limited space: 13 mm (0.51″) in height and 85 mm (3.35″) in length.
Multi-unit synchronization in simultaneous or alternating flash.

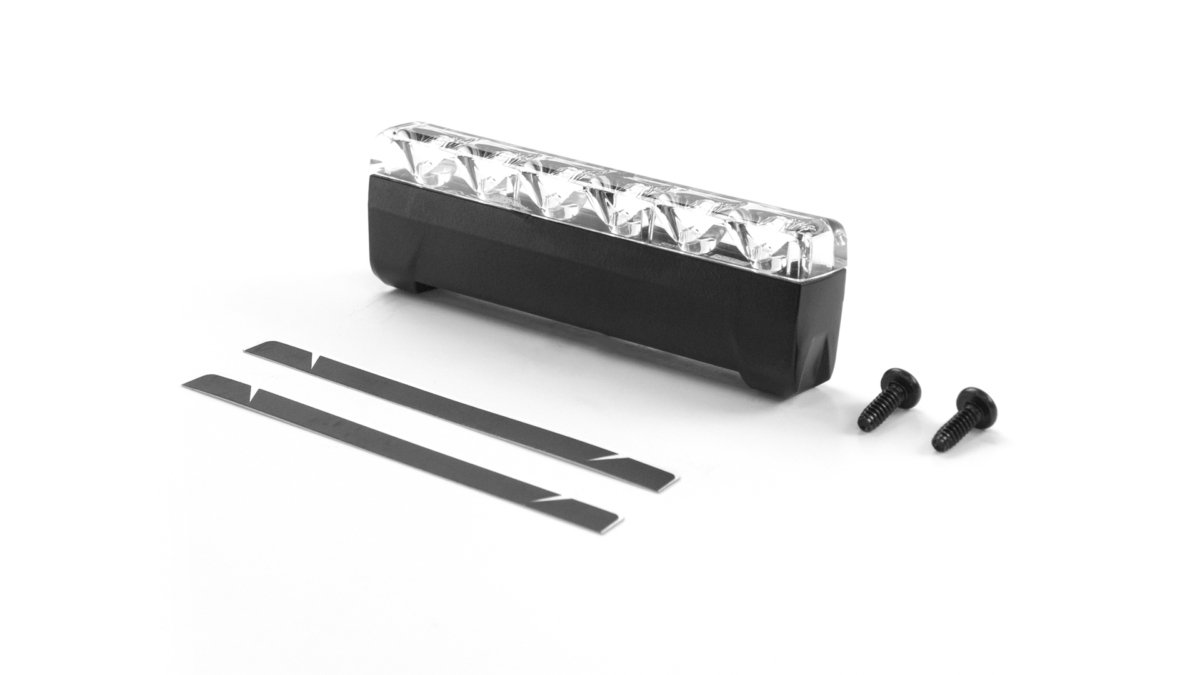

Optional Adjustable Bracket with for hood mount application.
Universal Multi-angle Brackets, mounting virtually anywhere.
Independent Cruise Mode in calmly steady-burn.Product Specifications
Product code 02180182 Product Name ED6 Warning Lighthead - Blue Categories Lighting, Directionals, Edge Dagger, Modules Product Type Products Default Functions Cruise Light Mode Dimensions Length 85mm Dimensions Height 13mm Dimensions Width 27mm Colour Type Single Colour Maximum Current 1.2A@12VDC / 0.6A@24VDC Storage Temperature -40°C to +75°C Operating Temperature -40°C to +65°C Maximum Power 14.4W Synchronisation 20 Unit Sync LED Colour Blue LEDs Fuse Rating 2A Lens Colour Clear Lens Compliance ECE R10, ECE R65 - XB2, SAE J595 Class 1, California Title 13 Optic Type TIR Optics Nominal Voltage 12-24VDC Mounting Option Surface Mount Cable Type Cable (Pigtail) LED Quantity 6LED IP Rating IPX8 Flash Patterns 18 Flash Patterns Wire Length 200mm Conductor Cross-Section 0.25mm² (24AWG) Warranty 5 Year Warranty -
Mounting
-
