Specifications
ECE R65 Class 1 homologated light performance.
An ideal solution for limited space: 13 mm (0.51″) in height and 85 mm (3.35″) in length.
Multi-unit synchronization in simultaneous or alternating flash.

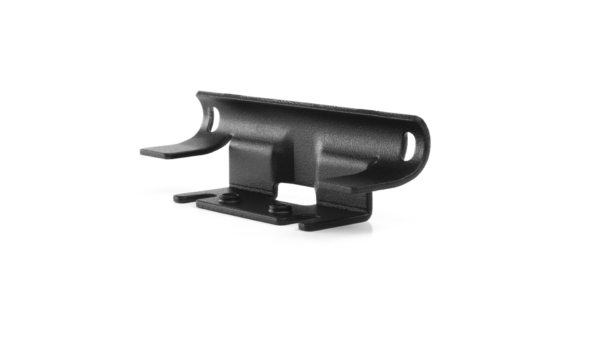

Optional Adjustable Bracket with for hood mount application.

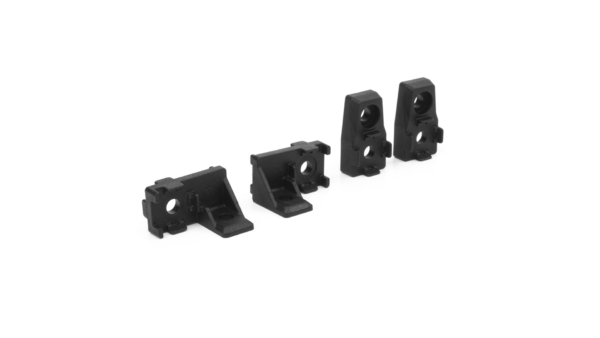

Universal Multi-angle Brackets, mounting virtually anywhere.
Independent Cruise Mode in calmly steady-burn.Product Specifications

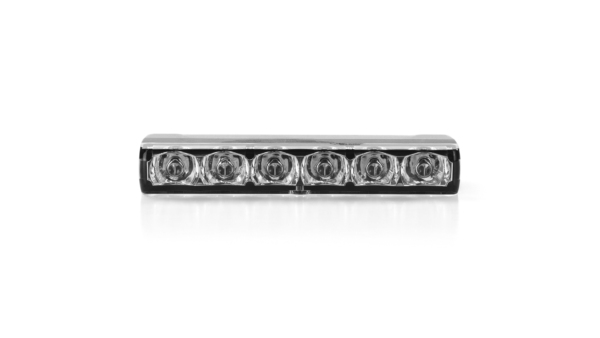

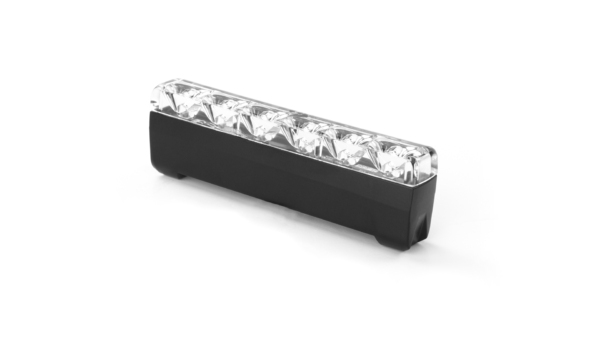

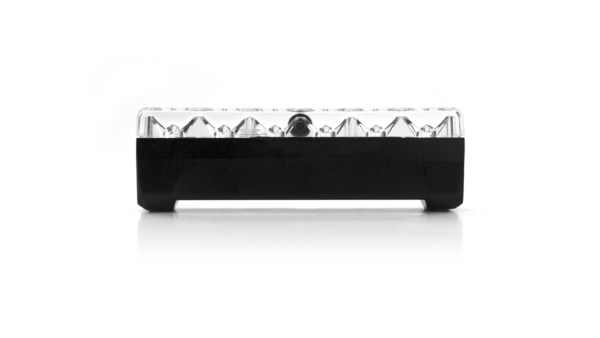

Product code 02180205 Product Name ED6 Warning Lighthead (Dual Colour) - Blue/Amber Categories Lighting, Directionals, Edge Dagger, Modules Product Type Products Default Functions Cruise Light Mode Dimensions Length 85mm Dimensions Height 13mm Dimensions Width 27mm Colour Type Dual Colour Maximum Current 0.6A@12VDC / 0.3A@24VDC Storage Temperature -40°C to +75°C Operating Temperature -40°C to +65°C Maximum Power 7.2A Synchronisation 20 Unit Sync LED Colour Blue/Amber Fuse Rating 1A Lens Colour Clear Lens Compliance ECE R10, ECE R65 - XA1, ECE R65 - XB1, SAE J595 Class 1, California Title 13 Optic Type TIR Optics Nominal Voltage 12-24VDC Mounting Option Surface Mount Cable Type Cable (Pigtail) LED Quantity 6LED IP Rating IPX8 Flash Patterns 28 Flash Patterns Wire Length 200mm Conductor Cross-Section 0.25mm² (24AWG) Warranty 5 Year Warranty -

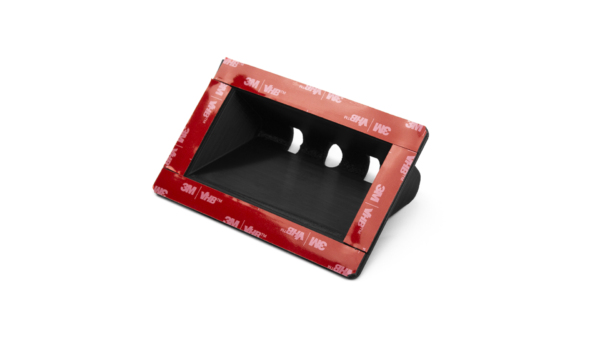

Mounting
-
