Specifications
Aerodynamic aesthetic for minimum wind resistance.
Made with AMECA listed, optical grade DOW SILASTIC™ silicone.
CISPR 25 Class 3 EMC protection; less likely to cause EMC issues when mounted to vehicles.
Flex and bend (up to 120 degree) to fit the mounting surface; mount to places like never before.
Approved to ECE Class 2 and SAE Class 1 approval when mounted to curved or flat surfaces; no compromise to warning performance.

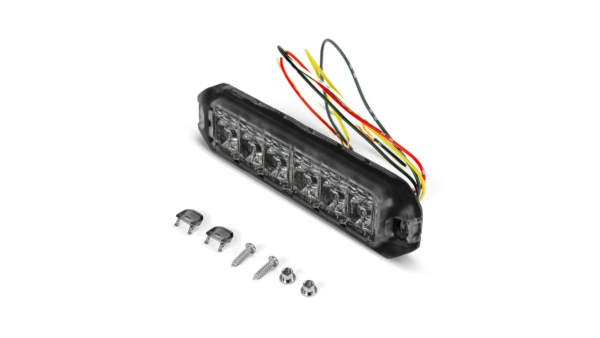

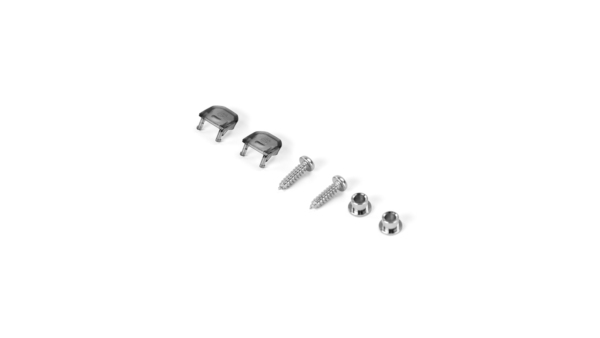

Screw Mount with self-adhesive VHB tape and screw cover for firmed and secure installation.
Weatherproof and vibration resistant design for external or internal use.
Dual memories for application such as cruise mode.
Reverse polarity protection.Product Specifications

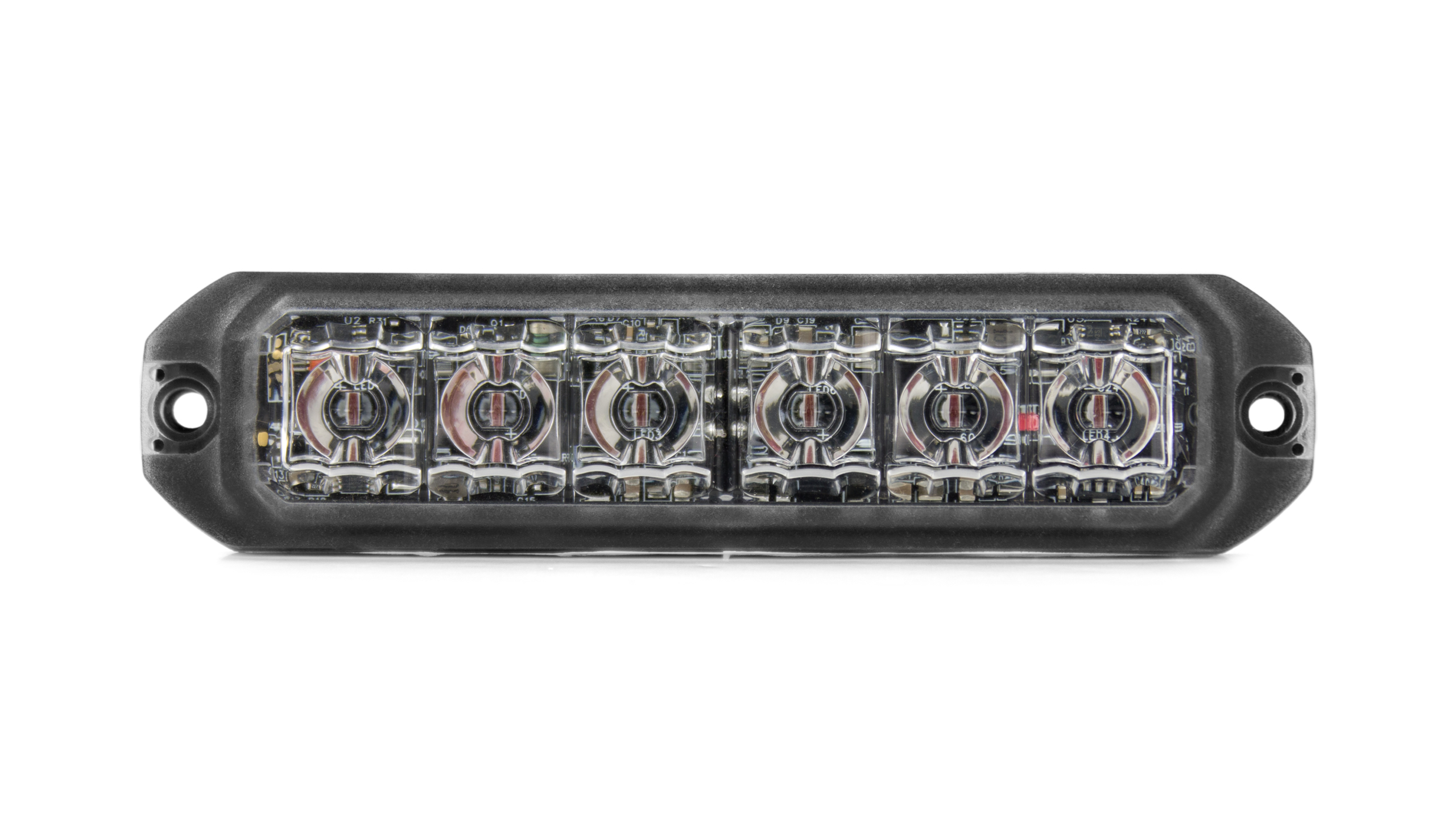

Product code 02250120 Product Name FX6+ Warning Lighthead - Red Categories Lighting, Directionals, FX6+, Modules, Flexion Product Type Products Dimensions Length 127mm Dimensions Height 30mm Dimensions Width 11mm Colour Type Single Colour Maximum Current 1.20A@12VDC / 0.64A@24VDC Storage Temperature -40°C to +75°C Operating Temperature -40°C to +65°C Maximum Power 14.40W@12VDC / 15.36W@24VDC Synchronisation 20 Unit Sync LED Colour Red LEDs Fuse Rating 2A Lens Colour Clear Lens Compliance ECE R10, ECE R65 - XR2, CISPR25, SAE J595 Class 1, SAE J845 Class 1, California Title 13 Nominal Voltage 12-24VDC Mounting Option Self Adhesive Mount, Surface Mount Cable Type Cable (Pigtail) LED Quantity 6LED IP Rating IP67 Flash Patterns 20 Flash Patterns Wire Length 300mm Mounting Orientation Horizontal Conductor Cross-Section 0.5mm² (20AWG) Warranty 5 Year Warranty - Downloads
