Specifications

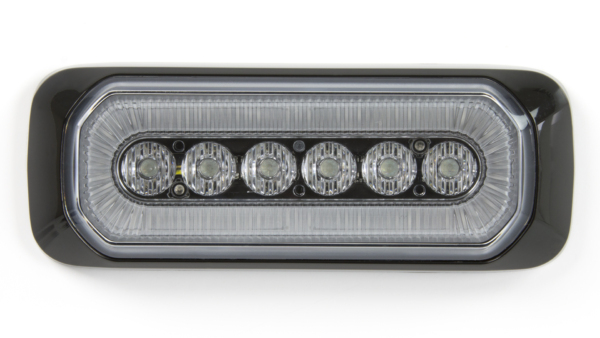

High-performance warning lamp with outer halo-ring.
Independent controlled, multi-purposed outer halo-ring as a clearance, identification, position or side marker lamp.
Fully weatherproof and vibration resistant design for external and internal use.
Aluminium base for efficient heat dissipation and maximum durability.
Multi-units synchronization in simultaneous or alternating flash.
Long life LEDs rated to 100,000 hours of operation.
Reverse polarity protection.Product Specifications
Product code 02010250 Product Name HB6 Lamp (Warning-Blue/Halo-Red) Categories Lighting, Directionals, Halo Blitz, Modules Product Type Products Dimensions Length 132mm Dimensions Height 50mm Dimensions Width 19mm Bezel Colour Black Colour Type Single Colour Maximum Current 1.35A@12VDC / 0.75A@24VDC Storage Temperature -40°C to +75°C Operating Temperature -40°C to +65°C Maximum Power 18W LED Quantity (Halo-Ring/Stripe) 18x (Halo-Ring/Stripe) LEDs LED Colour Blue LEDs Halo Ring Colour Red Halo Ring Fuse Rating 2A Lens Colour Clear Lens Compliance ECE R7, ECE R10, ECE R65 - XB1, SAE J592 Class 1, SAE J595 Class 1, SAE J2042, California Title 13 Optic Type TIR Optics Nominal Voltage 12-24VDC Mounting Option Surface Mount Cable Type Cable (Pigtail) LED Quantity 6LED IP Rating IPX8 Flash Patterns 14 Flash Patterns Wire Length 250mm Conductor Cross-Section 0.5mm² (20AWG) Warranty 5 Year Warranty -
