Specifications
Low profile for discreet mounting.
Wrap around side optics for wider visibility.
Dual Memory capability for cross function or cross state applications.
Multiple units are synchronizable and can flash simultaneously or alternately.
Extra steady on functions for vehicle identification or illumination.
Memory override for instant emergency use.
Weatherproof and vibration resistant design.
Aluminium base for heat dissipation.
Reverse polarity protection.Product Specifications
Product code 02110301 Product Name ID26 - Amber (12~24VDC) Categories Warning Lights, ID26, Identification LEDs, Wide Angle, Modules Product Type Products Dimensions Length/width 129mm (5.09") Dimensions Height 50mm (1.98") Dimensions Depth 16.8mm (0.66") Colour Type Single Colour Maximum Current 1.75A@12VDC / 0.88A@24VDC Maximum Power 21W Synchronisation 15 Unit Synchronisation LED Colour Amber LEDs Fuse Rating 3A Lens Colour Clear Lens Compliance ECE-R10, ECE-R65 (XA1), SAE J595 Class 1, SAE J845 Class 1 Input Voltage 12VDC~24VDC Optic Type T.I.R Optics Mounting Option Surface Mount Cable Type Cable (Pigtail) LED Elements 12x LEDs IP Rating IP67 Flash Patterns 15 Flash Patterns Wire Length 250mm Mounting Orientation Horizontal Gross Weight 0.15kg Conductor Cross-Section 0.5mm² (20AWG) Warranty 5 Year Warranty -

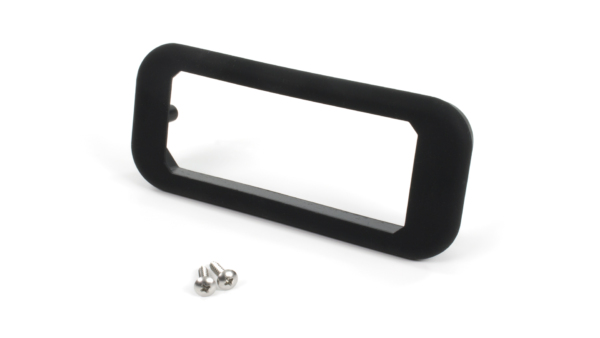

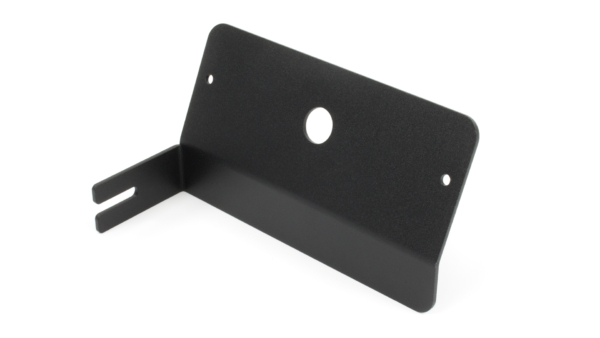

Mounting
-
- Downloads
