Specifications
Low profile for discreet mounting.
Wrap around side optics for wider visibility.
Dual Memory capability for cross function or cross state applications.
Multiple units are synchronizable and can flash simultaneously or alternately.
Extra steady on functions for vehicle identification or illumination.
Memory override for instant emergency use.
Weatherproof and vibration resistant design.
Aluminium base for heat dissipation.
Reverse polarity protection.Product Specifications

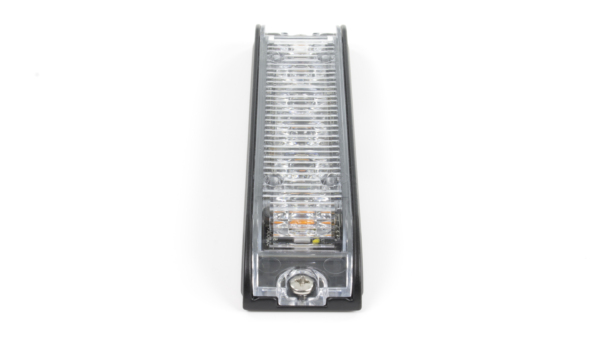

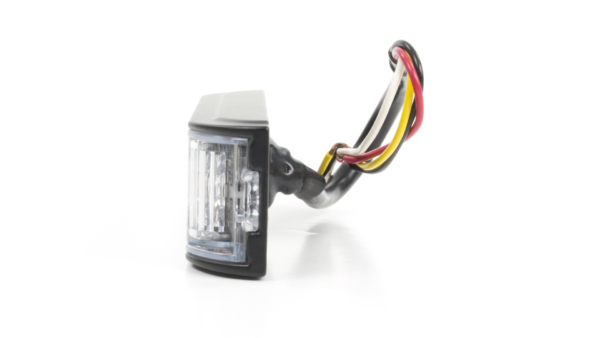

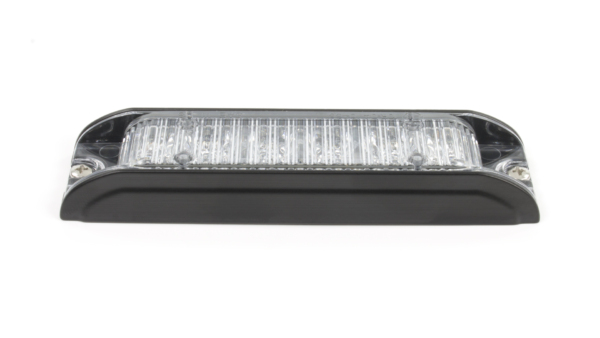

Product code 02110103 Product Name ID6 Warning Lighthead - Amber Categories Lighting, ID6, Identification LEDs, Wide Angle, Modules Product Type Products Dimensions Length 129mm Dimensions Height 31mm Dimensions Width 17mm Colour Type Single Colour Maximum Current 1A@12VDC / 0.5A@24VDC Maximum Power 12W Synchronisation 15 Unit Sync LED Colour Amber LEDs Fuse Rating 2A Lens Colour Clear Lens Compliance ECE R10, ECE R65 - XA1, SAE J595 Class 1, SAE J845 Class 1 Optic Type TIR Optics Nominal Voltage 12-24VDC Mounting Option Surface Mount Cable Type Cable (Pigtail) LED Quantity 6LED IP Rating IP67 Flash Patterns 15 Flash Patterns Wire Length 250mm Mounting Orientation Horizontal Conductor Cross-Section 0.5mm² (20AWG) Warranty 5 Year Warranty -

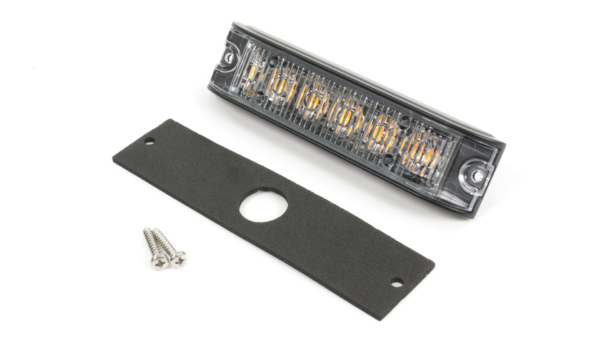

Mounting
-
- Downloads
