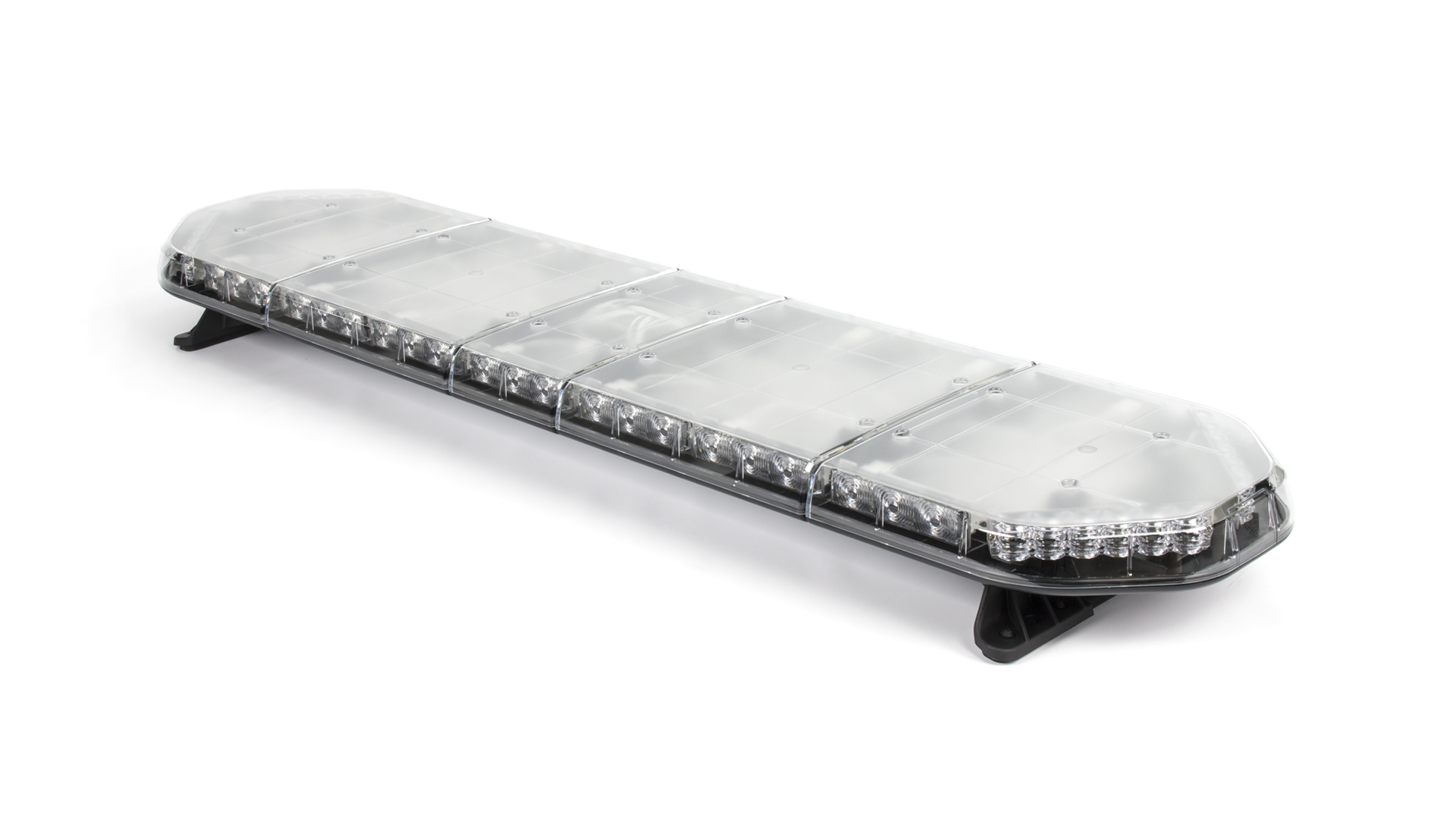

Legion FIT Lightbar, 1387mm (54.5″), 24x BLUE LEDs, CLEAR LENSES, ECE R10, ECE R65 (TB1), IPX4K, AM Firmware (Cruise Mode), D-Fuser Optics, 7 Flash Patterns, Single Harness (2 Function/2 Power), Standard Feet, 12-24VDC.
-
Specifications
Built-in selectable flash patterns.
Easy Maintenance and lighthead replacement.
Multi-voltage input 12-24VDC with EMC compliance.
Non-volatile memory recalls last flash pattern used at power up.
Solid Aluminium base for best rigidity and heat dissipation.
Reverse polarity protection.Product Specifications
Product code 06400125 Product Name Legion FIT Cruise 1387mm (54.5") - BC (12-24VDC) Categories Lighting, Legion FIT Standard, Lightbars, Legion FIT, Legion Product Type Products Configurations (available) Cruise Light Default Functions Hi/Low Power (50%), Cruise Light Mode, ECE-R65 Warning Mode Dimensions Height 59mm Dimensions Width 331mm Colour Type Single Colour Maximum Current 8.9A@12.8VDC / 4.9A@25.6VDC Lightbar Length 1387mm (54.5") LED Colour Blue LEDs Lens Colour Clear Lens Compliance ECE R10, ECE R65 - TB1, SAE J845 Class 1, California Title 13 Optic Type D-Fuser Optics Nominal Voltage 12-24VDC Mounting Option Standard Bolt Mount Brackets Cable Type Single Harness (2 Function/2 Power) LED Quantity 24LED Lighthead Quantity 4x Lightheads IP Rating IPX4K Flash Patterns 7 Flash Patterns Warranty 5 Year Warranty -
