Your request has been sent to the Cell2 LTD sales team. We will be in touch shortly. Please look out for the Item price appearing on the website. Thank you
EAN: 06400149

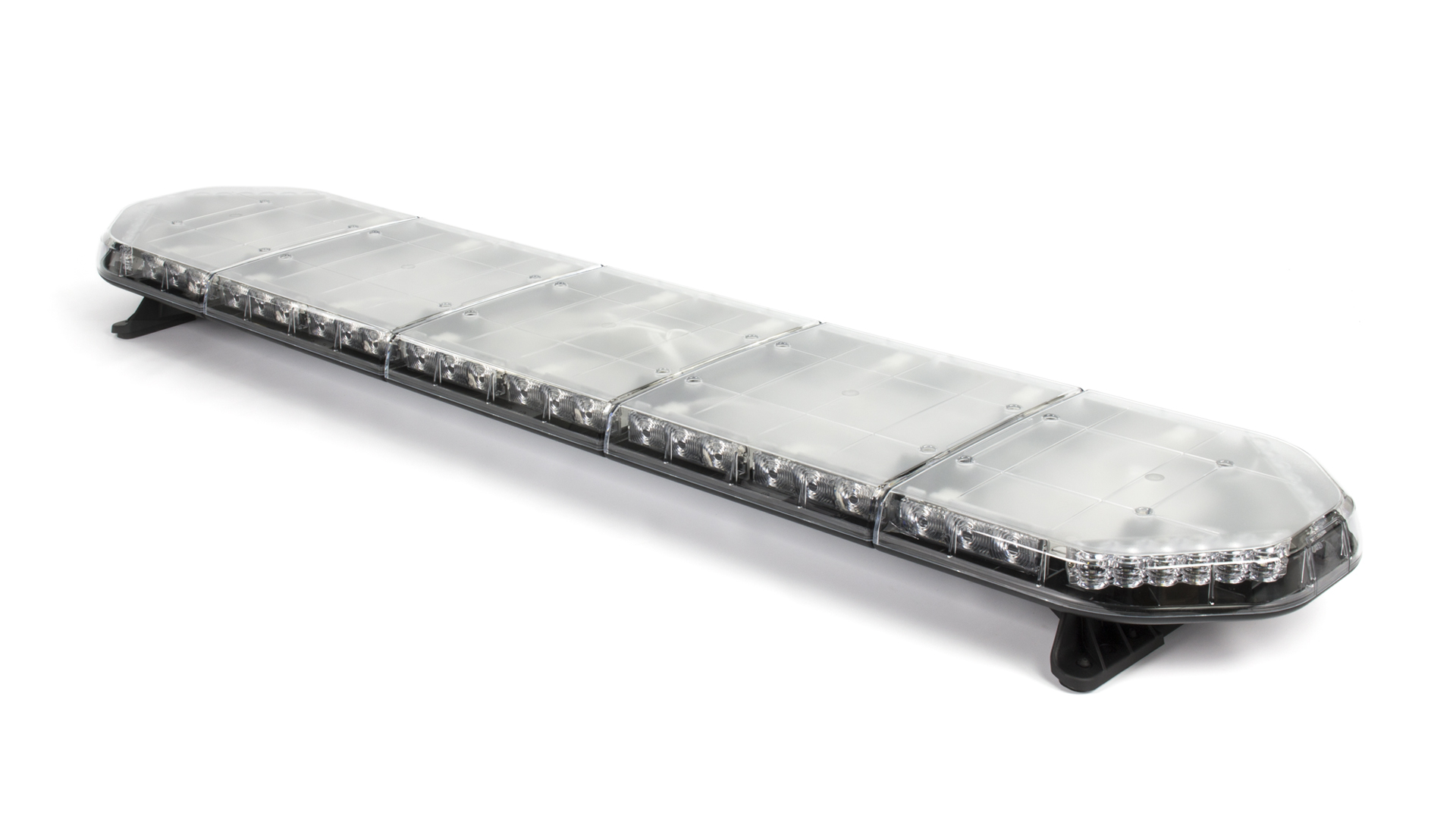

Legion FIT Lightbar, 1537mm (60.5″), 24x BLUE LEDs, CLEAR LENSES, ECE R10, ECE R65 (TB1), IPX4K, AM firmware (Cruise Mode), D-Fuser Optics, 7 Flash Patterns, Single Harness (2 Function/2 Power), Standard Feet, 12~24VDC.
-
Specifications
Built-in selectable flash patterns.
Easy Maintenance and lighthead replacement.
Multi-voltage input 12-24VDC with EMC compliance.
Non-volatile memory recalls last flash pattern used at power up.
Solid Aluminium base for best rigidity and heat dissipation.
Reverse polarity protection.Product Specifications
Product code 06400149 Product Name Legion FIT Cruise 1537mm (60.5") - BC (12~24VDC) Categories Warning Lamps, Legion FIT Standard, Lightbars, Legion, Legion FIT Product Type Products Configurations (available Cruise Light Dimensions Length 1537mm (60") Default Functions Hi/Low Power (50%, Cruise Light Mode, ECE-R65 Warning Mode Dimensions Height 59mm (2.3") Dimensions Width 331mm (13") Colour Type Single Colour Maximum Current 9.7A@12.8VDC / 5.4A@25.6VDC Lightbar Length 1537mm (60.5") LED Colour Blue LEDs Lens Colour Clear Lens Compliance ECE-R10, ECE-R65 (TB1), SAE J845 Class 1, CA13 Input Voltage 12VDC~24VDC Optic Type D-Fuser Optics Mounting Option Standard Bolt Mount Brackets Cable Type Single Harness (2 Function/2 Power) LED Quantity 24x LEDs Lighthead Quantity 4x Lightheads IP Rating IPX4K Flash Patterns 7 Flash Patterns Net Weight 13.4kg Gross Weight 14.4kg Warranty 5 Year Warranty -
Spare Parts
-
-
- Lightheads
- Single Colour
- 3x LEDs
- 3 Pin Connector
- Blue LEDs
-
- Lightheads
- ECE-R7
- Split Colour
- 12x LEDs
- Amber LEDs, Red LEDs
-
-
-
-
-
-
- Lightheads
- Single Colour
- 6x LEDs
- 3 Pin Connector
- Blue LEDs
-
-
-
Accessories
-
- Connectors
- Polycarbonate (PC)
- 4 Pin Connector
- Single Harness (2 Function/2 Power)
-
-
Mounting
-
- Powder-Coated Aluminium
- Low Profile Flat Wide Feet
- Black
-
- Powder-Coated Aluminium
- Low Profile Flat Narrow Feet
- Black
-
-
- Powder-Coated Aluminium
- MS3 - Extrusion Bracket
- Black
-
- Powder-Coated Aluminium
- MS3 - A006 Mounting Bracket
- Black
-
- Powder-Coated Aluminium
- Mount Kit (Adjustable A006)
- Black
-
- Powder-Coated Aluminium
- Mount Kit (Adjustable Bolt)
- Black
-
- Powder-Coated Aluminium
- Low Profile Flat Wide Feet
- Black
-
- Powder-Coated Aluminium
- Low Profile Flat Narrow Feet
- Black
-
- Powder-Coated Aluminium
- Standard Bolt Mount Brackets
- Black
-
-
Downloads
