EAN: 06370237

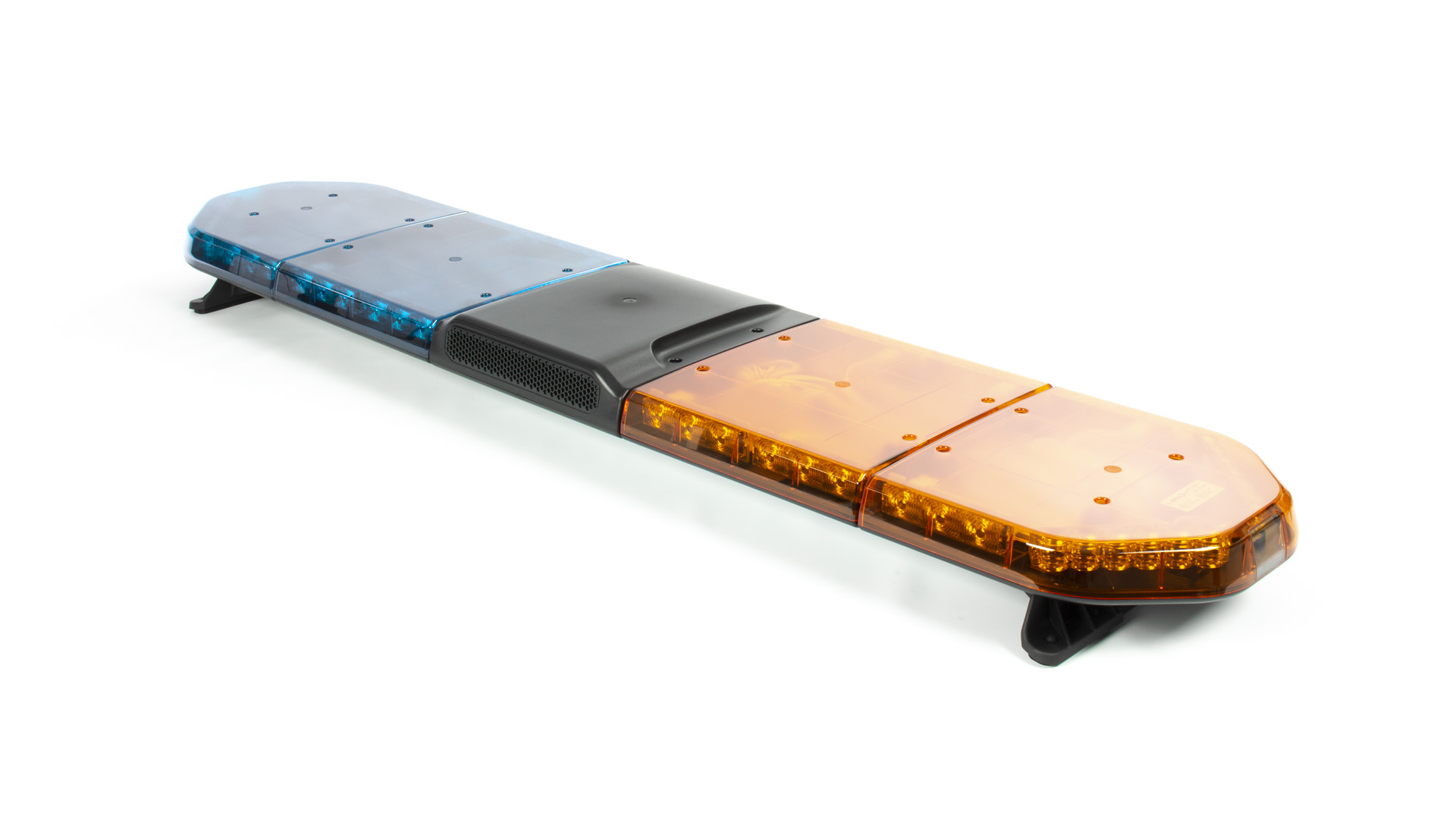

Legion FIT H002 Speaker Lightbar, 1537mm (60.5″), 24x (12)AMBER/(12)BLUE LEDs, AMBER/BLUE LENSES, ECE R10, IPX4K, D-Fuser Optics, 7 Flash Patterns, Single Harness (2 Function/2 Power/2 Speaker), Standard Feet, 12~24VDC.
-
Specifications
Built-in integrated speaker.
Built-in selectable flash patterns.
Easy maintenance and lighthead replacement.
Multi-voltage input 12-24VDC with EMC compliance.
Non-volatile memory recalls last flash pattern used at power up.
Solid aluminium base for best rigidity and heat dissipation.
Reverse polarity protection.Product Specifications
Product code 06370237 Product Name Legion FIT H002 Speaker 1537mm (60.5") - AABB (12~24VDC) Categories Lighting, Lightbars, Legion FIT H002 Speaker, Legion FIT, Legion Product Type Products Configurations (available Cruise Light Default Functions Hi/Low Power (50%), ECE-R65 Warning Mode Dimensions Height 77mm Speaker Power Rating 100W Dimensions Width 331mm Colour Type Single Colour Maximum Current 8.1A@12.8VDC / 4.4A@25.6VDC Lightbar Length 1537mm (60.5") Speaker Impedance 10-13 Ohms LED Colour Amber LEDs, Blue LEDs Lens Colour Amber Lens, Blue Lens Compliance ECE R10, SAE J845 Class 1, California Title 13 Input Voltage 12VDC~24VDC Optic Type D-Fuser Optics Mounting Option Standard Bolt Mount Brackets Cable Type Single Harness (2 Function/2 Power/2 Speaker) LED Quantity 24x LEDs Lighthead Quantity 4x Lightheads IP Rating IPX4K Flash Patterns 7 Flash Patterns Warranty 5 Year Warranty -
Spare Parts
-
-
- Lighthead
- Warning
- Single Colour
- 3x LEDs
- 3 Pin Connector
-
- Lighthead
- Warning
- Single Colour
- 3x LEDs
- 3 Pin Connector
-
-
- 100W
- Acrylonitrile Butadiene Styrene (ABS), Aluminium
- 100W
- H002
- 10-13 Ohms
-
-
-
-
-
-
-
- Lighthead
- Warning
- Single Colour
- 6x LEDs
- 3 Pin Connector
-
- Lighthead
- Warning
- Single Colour
- 6x LEDs
- 3 Pin Connector
-
-
-
-
Accessories
-
- Connectors
- Polycarbonate (PC)
- 6 Pin Connector
- Single Harness (6 Function/2 Power)
-
- Downloads
