EAN: 06270612

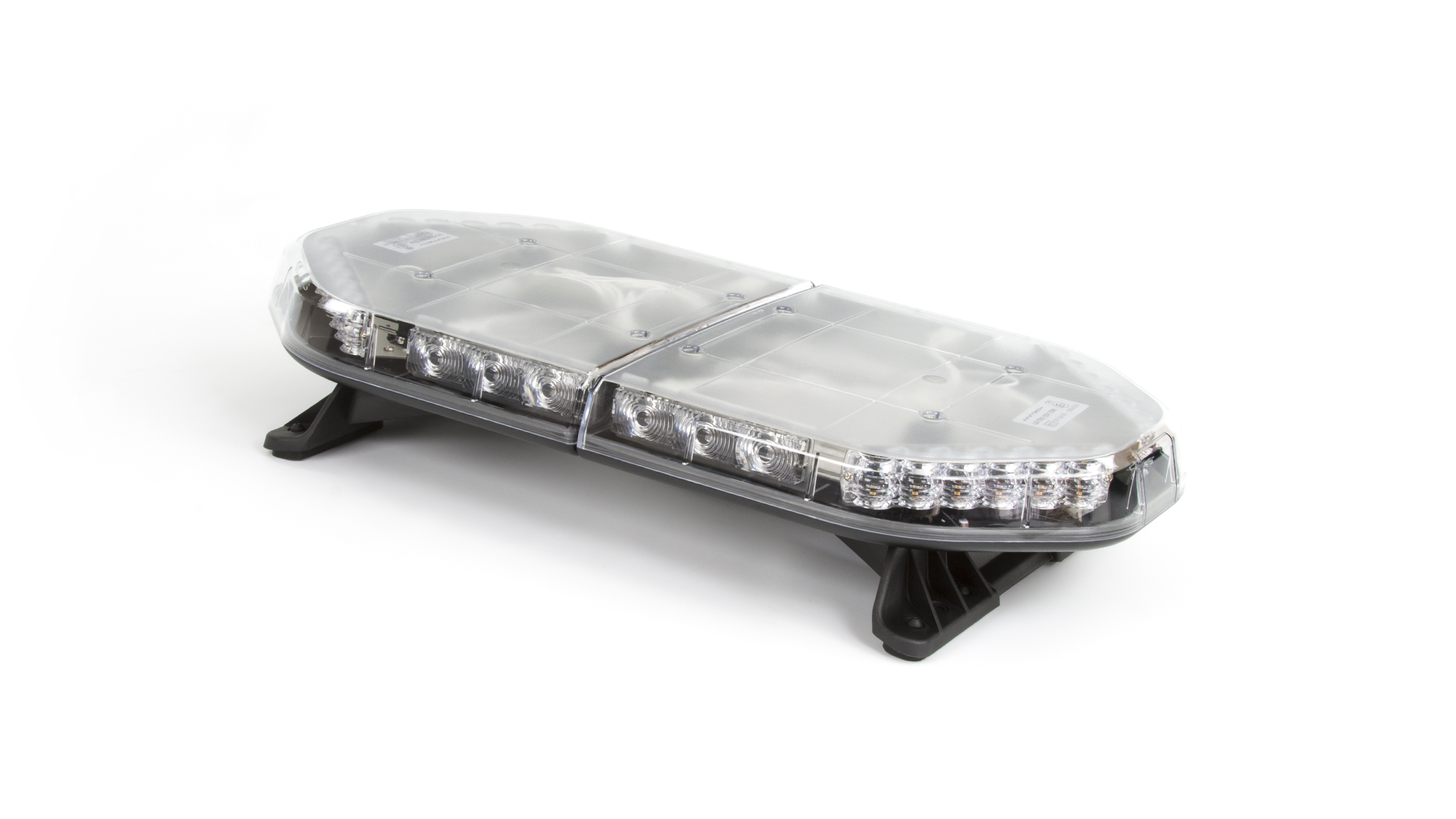

Legion FIT+ Lightbar, 0634mm (25″), 24x BLUE LEDs, CLEAR LENSES, ECE R10, ECE R65 (TB1), IPX4K, D-Fuser Optics, 7 Flash Patterns, 1 Cable Harness (8 Function/2 Power), Standard Feet, 12~24VDC.
-
Specifications
Product Specifications
Product code 06270612 Product Name Legion FIT+ 0634mm (25") - BC (12~24VDC) Categories Warning Lights, Lightbars, Legion FIT+ Standard, Legion, Legion FIT+ Product Type Products Configurations (available Cruise Light, Alley Lights Dimensions Length 634mm (24") Default Functions ECE-R65 Warning Mode, Flash Pattern for LEDs & TD/Alley Dimensions Height 59mm (2.3") Dimensions Width 331mm (13") Colour Type Single Colour Maximum Current 5.7A@12.8VDC / 2.9A@25.6VDC Operating Temperature -30°C~+65°C Lightbar Length 0634mm (25") Lens Colour Clear Lens Compliance ECE-R10, ECE-R65 (TB1) Optic Type D-Fuser Optics Input Voltage 12VDC~24VDC Lighthead Position Corner Lighthead Mounting Option Standard Bolt Mount Brackets Cable Type 1 Cable Harness (8 Function/2 Power) LED Quantity 24x LEDs Lighthead Quantity 4x Lightheads IP Rating IPX4K Flash Patterns 11 Flash Patterns Net Weight 8.8kg Gross Weight 9.8kg Warranty 5 Year Warranty -
Spare Parts
-
-
-
- Lightheads
- Take-Down
- Single Colour
- 3 Pin Connector
- Spot Optics
-
- Lightheads
- Take-Down
- Single Colour
- 3 Pin Connector
- Spot Optics
-
- Lightheads
- Take-Down
- Single Colour
- 3 Pin Connector
- Spot Optics
-
- Lightheads
- Take-Down
- Single Colour
- 3 Pin Connector
- Spot Optics
-
- Lightheads
- Warning
- Single Colour
- 3 Pin Connector
- Fresnel Optics
-
-
-
-
-
- Lightheads
- Warning
- Single Colour
- 3 Pin Connector
- D-Fuser Optics
-
-
-
Accessories
-
- Connectors
- Polycarbonate (PC)
- 9 Pin Connector
- 1 Cable Harness (8 Function/2 Power)
-
-
Mounting
-
- Powder-Coated Aluminium
- Low Profile Flat Wide Feet
- Black
-
- Powder-Coated Aluminium
- Low Profile Flat Narrow Feet
- Black
-
-
- Powder-Coated Aluminium
- MS3 - Extrusion Bracket
- Black
-
- Powder-Coated Aluminium
- MS3 - A006 Mounting Bracket
- Black
-
- Powder-Coated Aluminium
- Mount Kit (Adjustable A006)
- Black
-
- Powder-Coated Aluminium
- Mount Kit (Adjustable Bolt)
- Black
-
- Powder-Coated Aluminium
- Low Profile Flat Wide Feet
- Black
-
- Powder-Coated Aluminium
- Low Profile Flat Narrow Feet
- Black
-
- Powder-Coated Aluminium
- Standard Bolt Mount Brackets
- Black
-
