EAN: 06270414

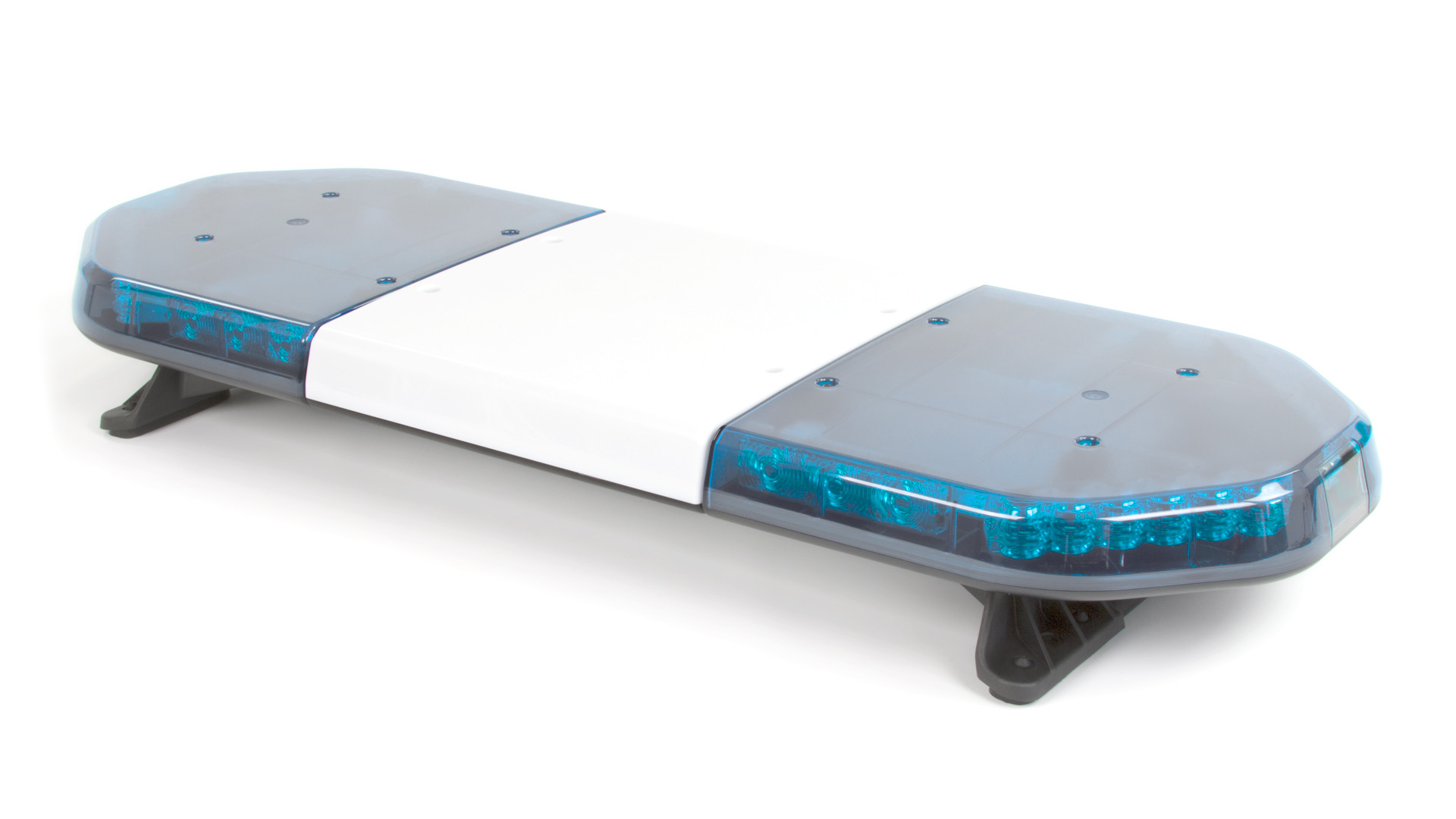

Legion FIT+ Lightbar, 0935mm (36.8″), 24x BLUE LEDs, BLUE/OPAL LENSES, ECE R10, ECE R65 (TB1), IPX4K, D-Fuser Optics, 7 Flash Patterns, 1 Cable Harness (8 Function/2 Power), Standard Feet, 12~24VDC.
-
Specifications
LEDs rated to 100,000 hours of operation.
Easy maintenance and lighthead replacement.
Optional Takedowns and Alley Lights are available.
D-Fuser optics for superior 360 degree light spread.
Non-volatile memory recalls last flash pattern used at power up.
Aluminium extrusion for best heat dissipation.
Built-in and programmable flashing patterns.
Reverse polarity protection.Product Specifications
Product code 06270414 Product Name Legion FIT+ 0935mm (36.8") - BBO (12~24VDC) Categories Warning Lights, Lightbars, Legion FIT+ Standard, Legion, Legion FIT+ Product Type Products Dimensions Length/width 935mm (36") Dimensions Height 59mm (2.3") Dimensions Depth 331mm (13") Colour Type Single Colour Maximum Current 6.5A@12.8VDC / 3.4A@25.6VDC Operating Temperature -30°C~+65°C Lightbar Length 0935mm (36.8") LED Colour Blue LEDs Lens Colour Blue Lens, Opal Lens Compliance ECE-R10, ECE-R65 (TB1) Optic Type D-Fuser Optics Input Voltage 12VDC~24VDC Mounting Option Standard Bolt Mount Brackets Cable Type 1 Cable Harness (8 Function/2 Power) LED Elements 24x LEDs Lighthead Quantity 4x Lightheads IP Rating IPX4K Flash Patterns 7 Flash Patterns Net Weight 10.4kg Gross Weight 11.4kg Warranty 5 Year Warranty -
Spare Parts
-
- Lightheads
- Single Colour
- 3x LEDs
- 3 Pin Connector
- Spot Optics
-
- Lightheads
- Single Colour
- 3x LEDs
- 3 Pin Connector
- Spot Optics
-
- Lightheads
- Single Colour
- 3x LEDs
- 3 Pin Connector
- Fresnel Optics
-
-
-
-
-
-
-
- Lightheads
- Single Colour
- 6x LEDs
- 3 Pin Connector
- D-Fuser Optics
-
-
-
Accessories
-
- Roof Connectors
- 9 Pin Connector
- Black
- 1 Cable Harness (8 Function/2 Power)
-
-
