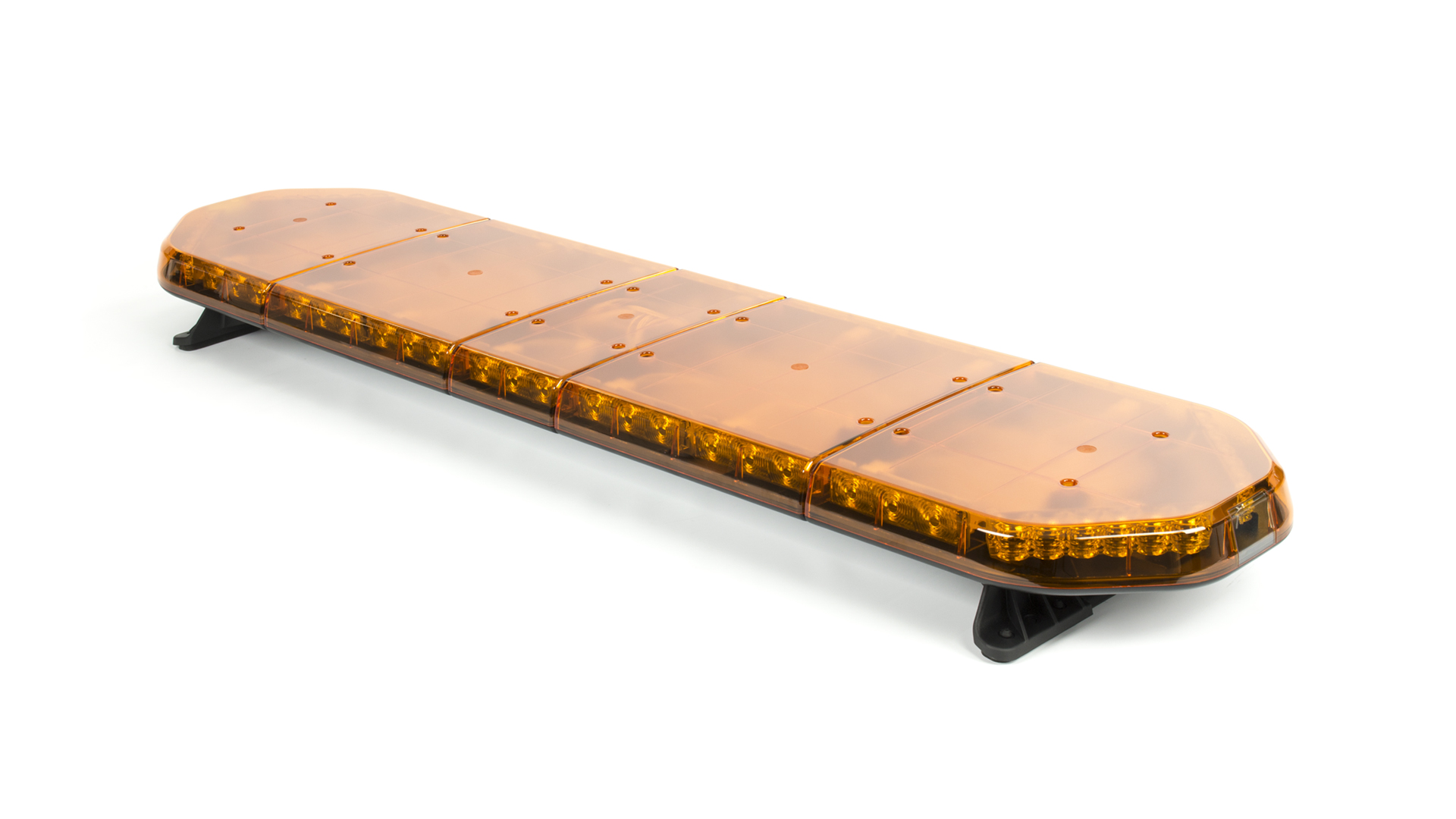

Legion FIT+ Lightbar, 1387mm (54.6″), 24x AMBER LEDs, AMBER LENSES, ECE R10, ECE R65 (TA1), IPX4K, D-Fuser Optics, 12 Flash Patterns, 2 Cable Harness (16 Function/4 Power), Standard Feet, 12~24VDC.
-
Specifications
LEDs rated to 100,000 hours of operation.
Easy maintenance and lighthead replacement.
Optional takedowns and alley lights are available.
D-Fuser optics for superior 360 degree light spread.
Non-volatile memory recalls last flash pattern used at power up.
Aluminium extrusion for best heat dissipation.
Built-in and programmable flashing patterns.
Reverse polarity protection.Product Specifications
Product code 06270278 Product Name Legion FIT+ 1387mm (54.6") - AA (12~24VDC) Categories Warning Lights, Lightbars, Legion FIT+ Standard, Legion, Legion FIT+ Product Type Products Configurations (available Steady On, Cruise Light, Alley Lights, Take-Downs, Traffic Director, Stop / Tail / Turn Dimensions Length/width 1372mm (54") Default Functions Flashing Alleys & Take-Downs, Front Cut-Off, Rear Cut-Off, Program Mode, Take-Down Lights (2 heads, Hi/Low Power (50%, Traffic Director - Rear Left Arrow., Traffic Director - Rear Right Arrow., Right-Side Alley Light, Left-Side Alley Light, ECE-R65 Warning Mode, Flash Pattern for LEDs & TD/Alley Dimensions Height 59mm (2.3") Dimensions Depth 331mm (13") Colour Type Single Colour Maximum Current 8.9A@12.8VDC / 4.9A@25.6VDC Operating Temperature -30°C~+65°C Lightbar Length 1387mm (54.6") LED Colour Amber LEDs Lens Colour Amber Lens Compliance ECE-R10, ECE-R65 (TA1) Input Voltage 12VDC~24VDC Optic Type D-Fuser Optics Mounting Option Standard Bolt Mount Brackets Cable Type 2 Cable Harness (16 Function/4 Power) LED Elements 24x LEDs Lighthead Quantity 4x Lightheads IP Rating IPX4K Flash Patterns 21 Flash Patterns Net Weight 15.4kg Gross Weight 16.4kg Warranty 5 Year Warranty -
Spare Parts
-
-
Accessories
-
-
Mounting
-
- Downloads
