EAN: 06270735

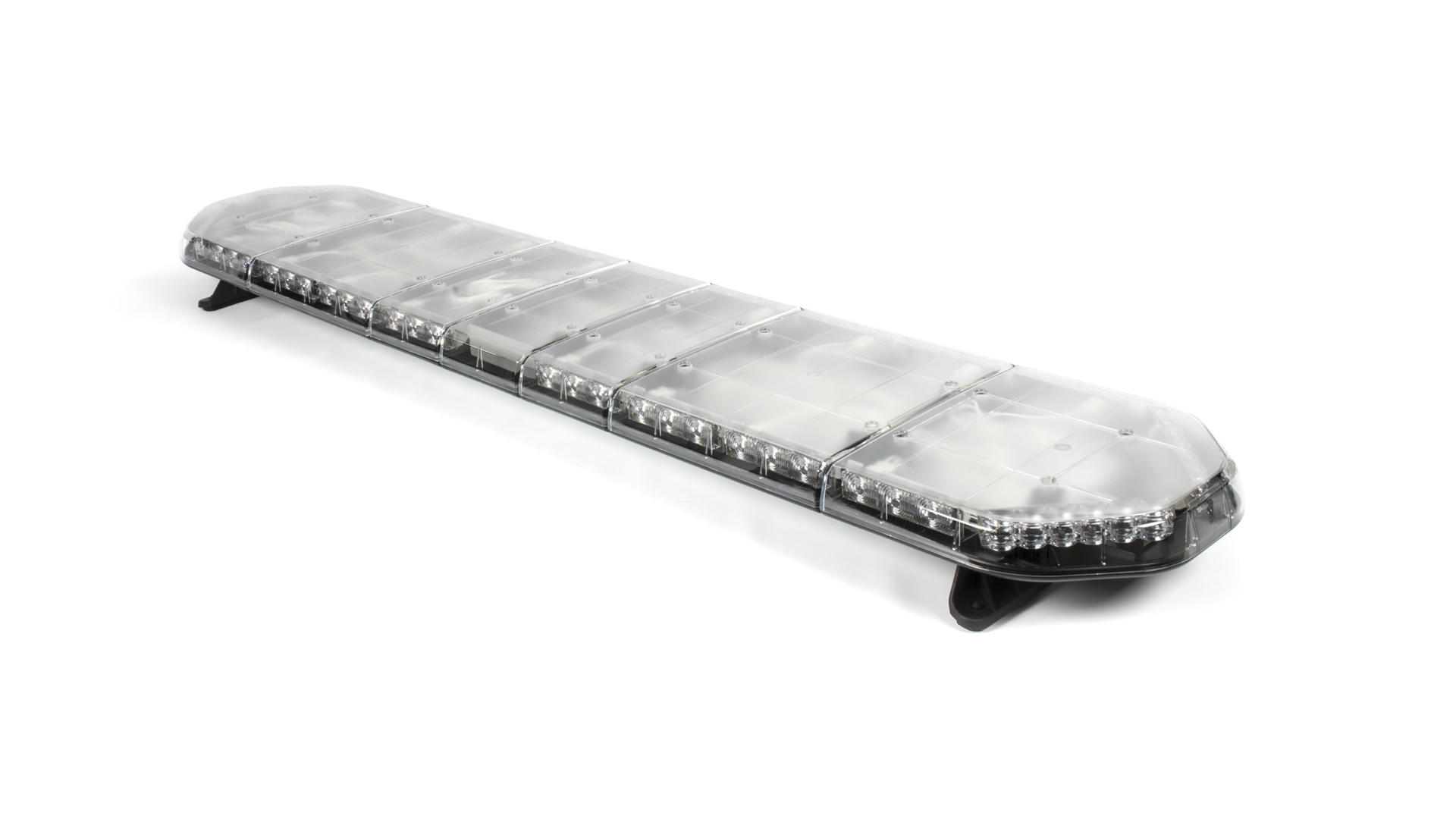

Legion FIT+ Lightbar, 1689mm (66.5″), 24x BLUE LEDs, CLEAR LENSES, ECE R10, ECE R65 (TB1), IPX4K, D-Fuser Optics, 12 Flash Patterns, Double Harness (16 Function/4 Power), Standard Feet, 12~24VDC.
-
Specifications
Product Specifications
Product code 06270735 Product Name Legion FIT+ 1689mm (66.5") - BC (12~24VDC) Categories Lighting, Lightbars, Legion FIT+ Standard, Legion, Legion FIT+ Product Type Products Configurations (available) Stop / Tail / Turn, Steady On, Cruise Light, Alley Lights, Take-Downs, Traffic Director Default Functions Left-Side Alley Light, Flashing Alleys & Take-Downs, Take-Down Lights (2 heads, Front Cut-Off, Hi/Low Power (50%), Rear Cut-Off, Program Mode, Traffic Director - Rear Left Arrow., Traffic Director - Rear Right Arrow., Right-Side Alley Light, ECE-R65 Warning Mode, Flash Pattern for LEDs & TD/Alley Dimensions Height 59mm Dimensions Width 331mm Colour Type Single Colour Maximum Current 9.7A@12.8VDC / 5.4A@25.6VDC Operating Temperature -30°C~+65°C Lightbar Length 1689mm (66.5") LED Colour Blue LEDs Lens Colour Clear Lens Compliance ECE R10, ECE R65 - TB1 Input Voltage 12VDC~24VDC Optic Type D-Fuser Optics Mounting Option Standard Bolt Mount Brackets Cable Type Double Harness (16 Function/4 Power) LED Quantity 24x LEDs Lighthead Quantity 4x Lightheads Flash Patterns 21 Flash Patterns IP Rating IPX4K Warranty 5 Year Warranty -
