EAN: 06220143

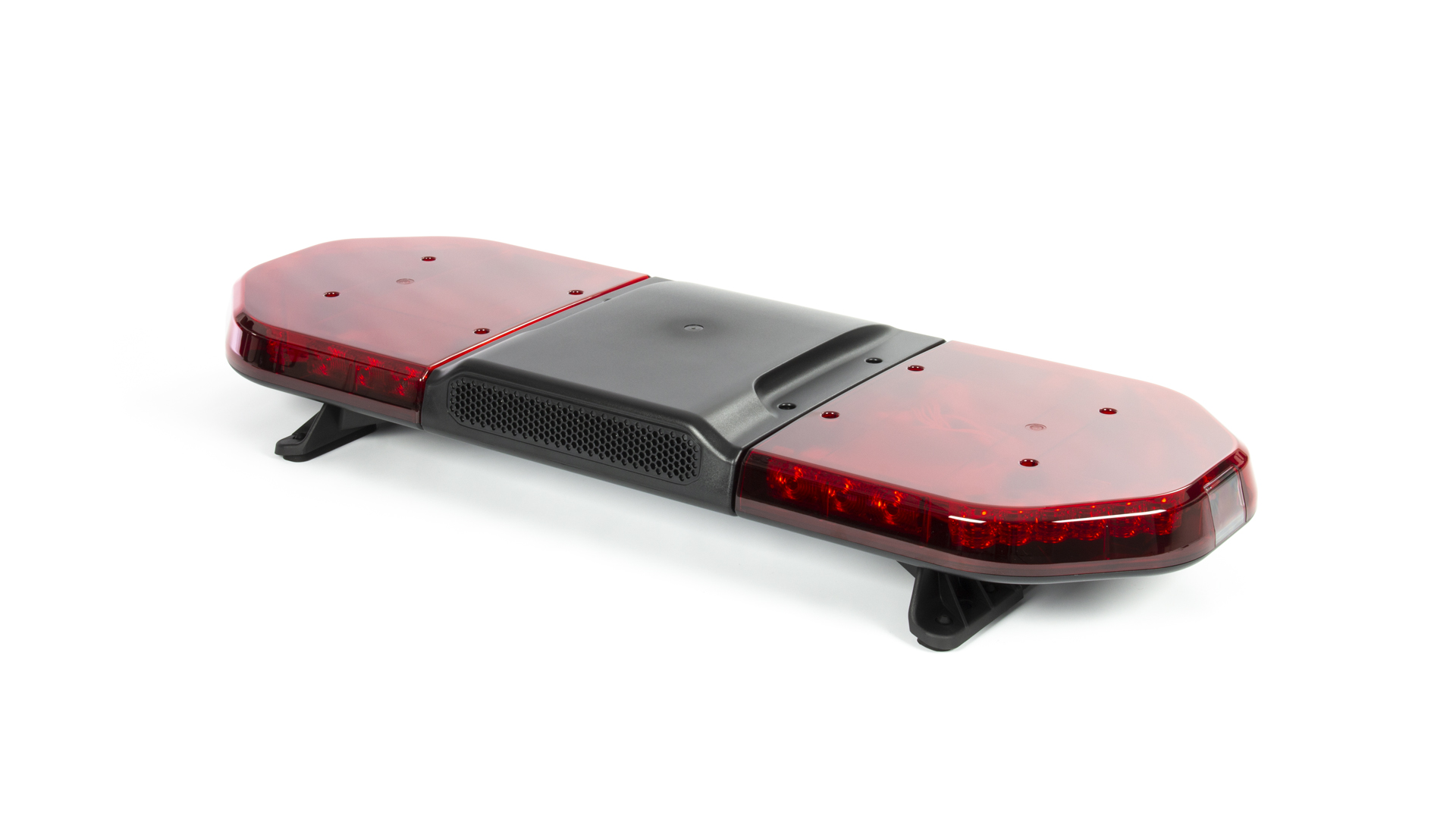

Legion FIT+ H002 Speaker Lightbar, 0935mm (36.8″), 24x RED LEDs, RED LENSES, ECE R10, ECE R65 (TR1), IPX4K, D-Fuser Optics, 7 Flash Patterns, Single Harness (8 Function/2 Power/2 Speaker), Standard Feet, 12~24VDC.
-
Specifications
Product Specifications
Product code 06220143 Product Name Legion FIT+ H002 Speaker 0935mm (36.8") - RR (12~24VDC) Categories Warning Lamps, Lightbars, Legion FIT+ H002 Speaker, Legion, Legion FIT+ Product Type Products Configurations (available Cruise Light, Alley Lights, Take-Downs, Traffic Director, Stop / Tail / Turn, Illuminated Centre, Steady On Dimensions Length 935mm (36") Default Functions ECE-R65 Warning Mode Dimensions Height 76mm (3") Speaker Power Rating 100W Dimensions Width 331mm (13") Colour Type Single Colour Operating Temperature -30°C~+65°C Siren Output Power 100W Lightbar Length 0935mm (37") Speaker Impedance 10-13 Ohms LED Colour Red LEDs Lens Colour Red Lens Compliance ECE-R10, ECE-R65 (TR1), SAE J845 Class 1, CA13 Input Voltage 12VDC~24VDC Optic Type D-Fuser Optics Mounting Option Standard Bolt Mount Brackets Cable Type Single Harness (8 Function/4 Power/2 Speaker LED Quantity 24x LEDs Lighthead Quantity 4x Lightheads IP Rating IPX4K Flash Patterns 7 Flash Patterns Net Weight 10.4kg Gross Weight 11.4kg Warranty 5 Year Warranty -
Spare Parts
-
- Lightheads
- Single Colour
- 3x LEDs
- 2 Pin Connector
- White LEDs
-
- Lightheads
- Single Colour
- 3x LEDs
- 2 Pin Connector
- White LEDs
-
-
- Lightheads
- Single Colour
- 3x LEDs
- 3 Pin Connector
- Red LEDs
-
- 100W
- Acrylonitrile Butadiene Styrene (ABS), Aluminium
- 100W
- H002
- 10-13 Ohms
-
-
-
- Lightheads
- Single Colour
- 6x LEDs
- 3 Pin Connector
- Red LEDs
-
-
-
-
Accessories
-
- Connectors
- Polycarbonate (PC)
- 9 Pin Connector
- Single Harness (8 Function/2 Power)
-
-
Mounting
-
- Powder-Coated Aluminium
- Low Profile Flat Narrow Feet
- Black
-
-
- Powder-Coated Aluminium
- Mount Kit (Adjustable A006)
- Black
-
- Powder-Coated Aluminium
- Mount Kit (Adjustable Bolt)
- Black
-
