EAN: 06220136

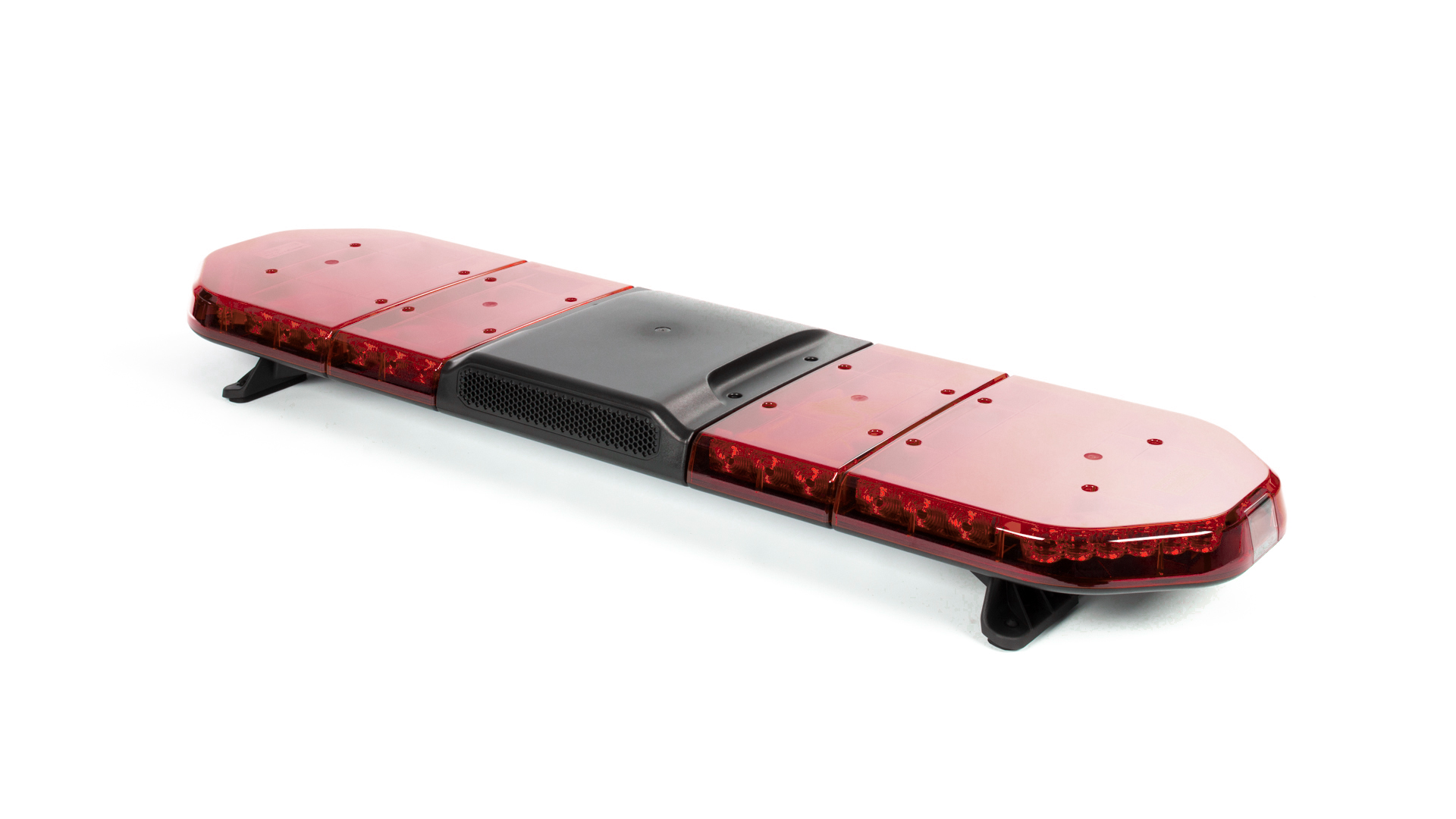

Legion FIT+ H002 Speaker Lightbar, 1252mm (49.3″), 24x RED LEDs, RED LENSES, ECE R10, ECE R65 (TR1), IPX4K, D-Fuser Optics, 12 Flash Patterns, 2 Cable Harness (16 Function/4 Power/2 Speaker), Standard Feet, 12~24VDC.
-
Specifications
Product Specifications
Product code 06220136 Product Name Legion FIT+ H002 Speaker 1252mm (49.3") - RR (12~24VDC) Categories Warning Lights, Lightbars, Legion FIT+ H002 Speaker, Legion, Legion FIT+ Product Type Products Configurations (available Cruise Light, Alley Lights, Take-Downs, Traffic Director, Stop / Tail / Turn, Illuminated Centre, Steady On Dimensions Length/width 1252mm (49") Default Functions ECE-R65 Warning Mode Dimensions Height 76mm (3") Speaker Power Rating 100W Dimensions Depth 331mm (13") Colour Type Single Colour Operating Temperature -30°C~+65°C Lightbar Length 1252mm (49.3") Speaker Impedance 10-13 Ohms LED Colour Red LEDs Lens Colour Red Lens Compliance ECE-R10, ECE-R65 (TR1), SAE J845 Class 1, CA13 Input Voltage 12VDC~24VDC Optic Type D-Fuser Optics Mounting Option Standard Bolt Mount Brackets Cable Type 2 Cable Harness (16 Function/4 Power/2 Speaker) LED Elements 24x LEDs Lighthead Quantity 4x Lightheads IP Rating IPX4K Flash Patterns 12 Flash Patterns Net Weight 10.4kg Gross Weight 11.4kg Warranty 5 Year Warranty -
Spare Parts
-
-
-
-
- Lightheads
- Warning
- Single Colour
- 3x LEDs
- 3 Pin Connector
-
- 100W
- Acrylonitrile Butadiene Styrene (ABS), Aluminium
- 100W
- H002
- 10-13 Ohms
-
-
-
-
-
-
- Lightheads
- Warning
- Single Colour
- 6x LEDs
- 3 Pin Connector
-
-
-
-
Accessories
-
- Connectors
- Polycarbonate (PC)
- 9 Pin Connector
- 1 Cable Harness (8 Function/2 Power)
-
-
Mounting
-
- Powder-Coated Aluminium
- Black
- Low Profile Flat Narrow Feet
-
-
- Powder-Coated Aluminium
- Black
- Mount Kit (Adjustable A006)
-
- Powder-Coated Aluminium
- Black
- Mount Kit (Adjustable Bolt)
-
