Legion HE Lightbar, 0634mm (25″), 72x AMBER LEDs, AMBER LENSES, ECE R10, ECE R65 (TA2), IPX4K, D-Fuser Optics, 7 Flash Patterns, Single Harness (8 Function/2 Power), Standard Feet, 12VDC.
-
Specifications
LEDs rated to 100,000 hours of operation.
Easy maintenance and lighthead replacement.
D-Fuser optics for superior 360 degree light spread.
Non-volatile memory recalls last flash pattern used at power up.
Aluminium extrusion for best heat dissipation.
Built-in and programmable flashing patterns.
Reverse polarity protection.Product Specifications

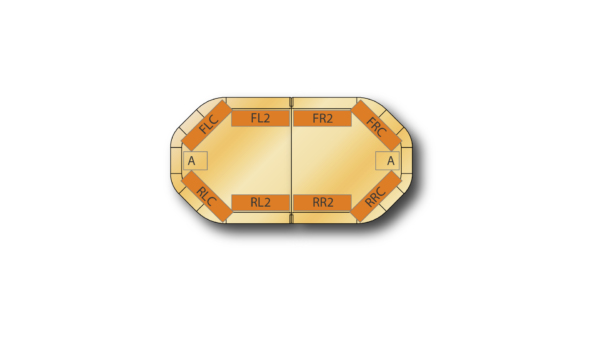

Product code 06320010 Product Name Legion HE 0634mm (25") - AA (12VDC) Categories Lighting, Lightbars, Legion High End, Legion HE Standard, Legion Product Type Products Configurations (available) Alley Lights, Take-Downs, Steady On, Cruise Light Default Functions Right-Side Alley Light, Take-Down Lights (2 heads, Left-Side Alley Light Dimensions Height 59mm Dimensions Width 331mm Colour Type Single Colour Lightbar Length 0634mm (25") LED Colour Amber LEDs Lens Colour Amber Lens Compliance ECE R10, ECE R65 - TA2, SAE J595 Class 1, SAE J845 Class 1, California Title 13 Optic Type D-Fuser Optics Nominal Voltage 12VDC Mounting Option Standard Bolt Mount Brackets Cable Type Single Harness (8 Function/2 Power/2 Speaker) LED Quantity 72x LEDs Lighthead Quantity 8x Lightheads IP Rating IPX4K Flash Patterns 7 Flash Patterns Warranty 5 Year Warranty -
