Legion HE Lightbar, 0785mm (30.9″), 72x RED LEDs, RED LENSES, ECE R10, IPX4K, D-Fuser Optics, 7 Flash Patterns, Single Harness (8 Function/2 Power), Standard Feet, 12VDC.
-
Specifications
LEDs rated to 100,000 hours of operation.
Easy maintenance and lighthead replacement.
D-Fuser optics for superior 360 degree light spread.
Non-volatile memory recalls last flash pattern used at power up.
Aluminium extrusion for best heat dissipation.
Built-in and programmable flashing patterns.
Reverse polarity protection.Product Specifications

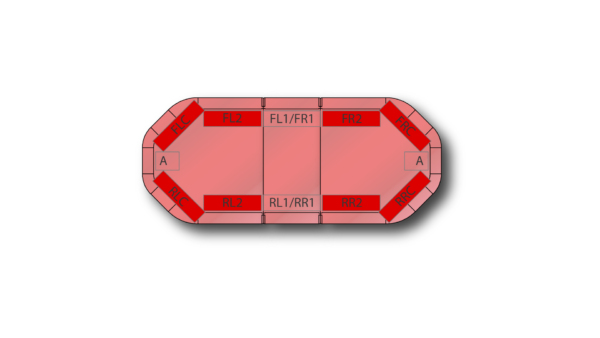

Product code 06320126 Product Name Legion HE 0785mm (30.9") - RR (12VDC) Categories Lighting, Legion HE Standard, Legion High End, Lightbars, Legion Product Type Products Configurations (available) Cruise Light, Alley Lights, Take-Downs, Steady On Default Functions Take-Down Lights (2 heads, Right-Side Alley Light, Left-Side Alley Light Dimensions Height 59mm Dimensions Width 331mm Colour Type Single Colour Lightbar Length 0785mm (31") LED Colour Red LEDs Lens Colour Red Lens Compliance ECE R10, SAE J595 Class 1, SAE J845 Class 1, California Title 13 Optic Type D-Fuser Optics Nominal Voltage 12VDC Mounting Option Standard Bolt Mount Brackets Cable Type Single Harness (8 Function/2 Power/2 Speaker) LED Quantity 72x LEDs Lighthead Quantity 8x Lightheads IP Rating IPX4K Flash Patterns 7 Flash Patterns Dummy Bracket Qty 2x Dummy Plates Warranty 5 Year Warranty -
