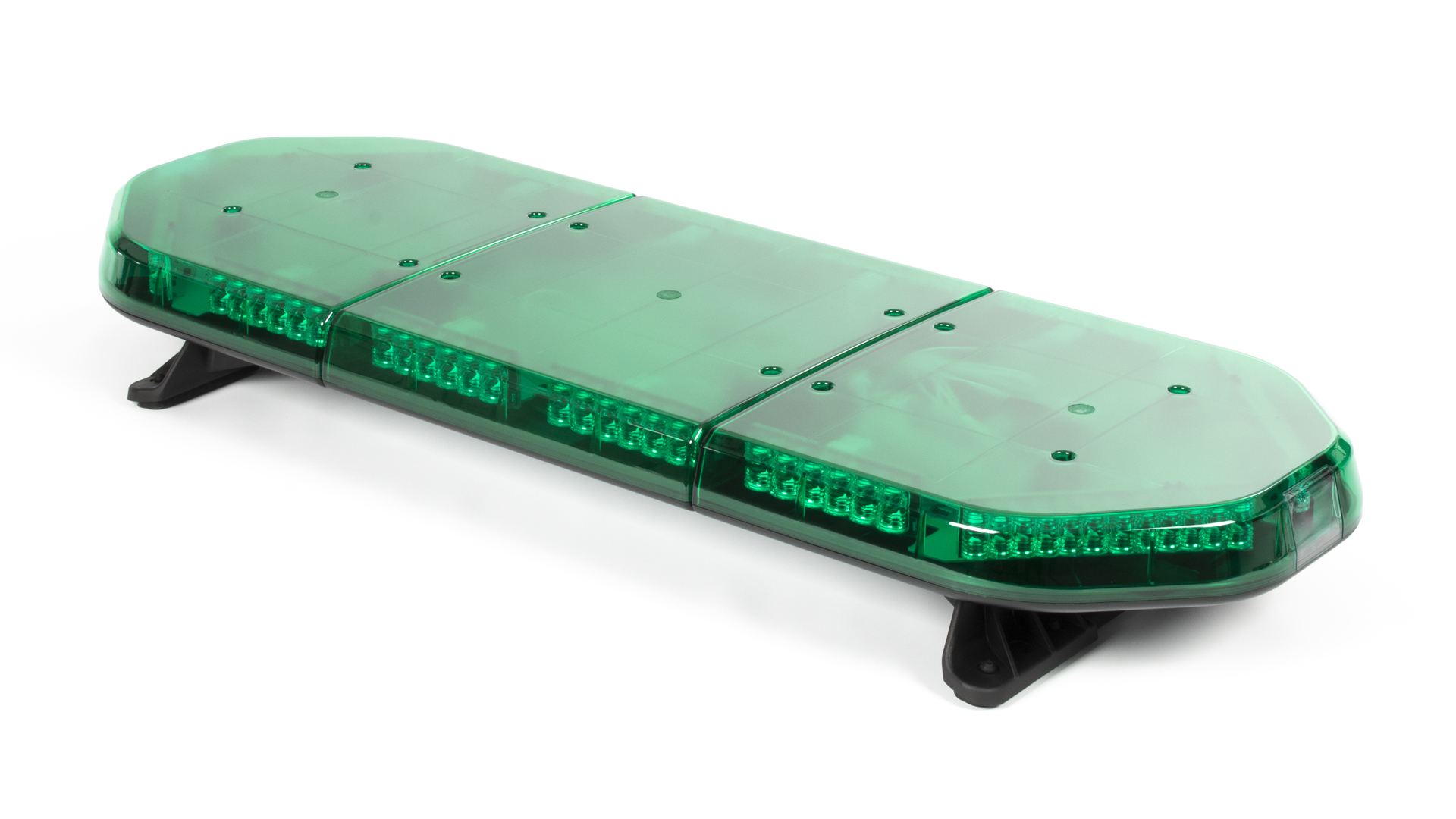

Legion HE Lightbar, 0935mm (36.8″), 72x GREEN LEDs, GREEN LENSES, ECE R10, IPX4K, D-Fuser Optics, 7 Flash Patterns, Single Harness (8 Function/2 Power), Standard Feet, 12VDC.
-
Specifications
LEDs rated to 100,000 hours of operation.
Easy maintenance and lighthead replacement.
D-Fuser optics for superior 360 degree light spread.
Non-volatile memory recalls last flash pattern used at power up.
Aluminium extrusion for best heat dissipation.
Built-in and programmable flashing patterns.
Reverse polarity protection.Product Specifications

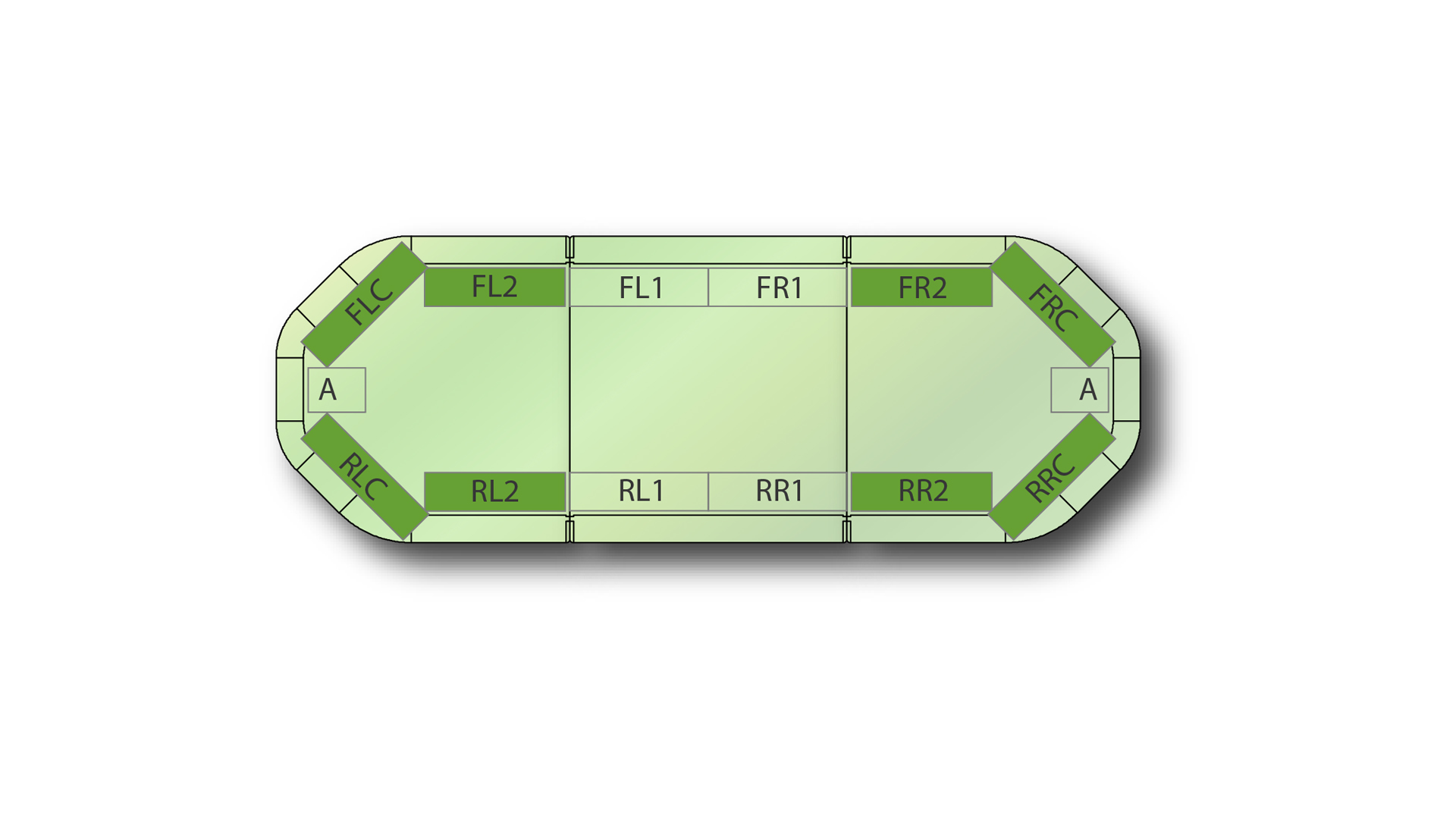

Product code 06320195 Product Name Legion HE 0935mm (36.8") - GG (12VDC) Categories Lighting, Lightbars, Legion HE Standard, Legion High End, Legion Product Type Products Configurations (available) Cruise Light, Alley Lights, Take-Downs, Steady On Default Functions Take-Down Lights (2 heads, Right-Side Alley Light, Left-Side Alley Light Dimensions Height 59mm Dimensions Width 331mm Colour Type Single Colour Lightbar Length 0935mm (37") LED Colour Green LEDs Lens Colour Green Lens Compliance ECE R10, California Title 13 Optic Type D-Fuser Optics Nominal Voltage 12VDC Mounting Option Standard Bolt Mount Brackets Cable Type Single Harness (8 Function/2 Power/2 Speaker) LED Quantity 72x LEDs Lighthead Quantity 8x Lightheads IP Rating IPX4K Flash Patterns 7 Flash Patterns Dummy Bracket Qty 4x Dummy Plates Warranty 5 Year Warranty -
