EAN: 06320195

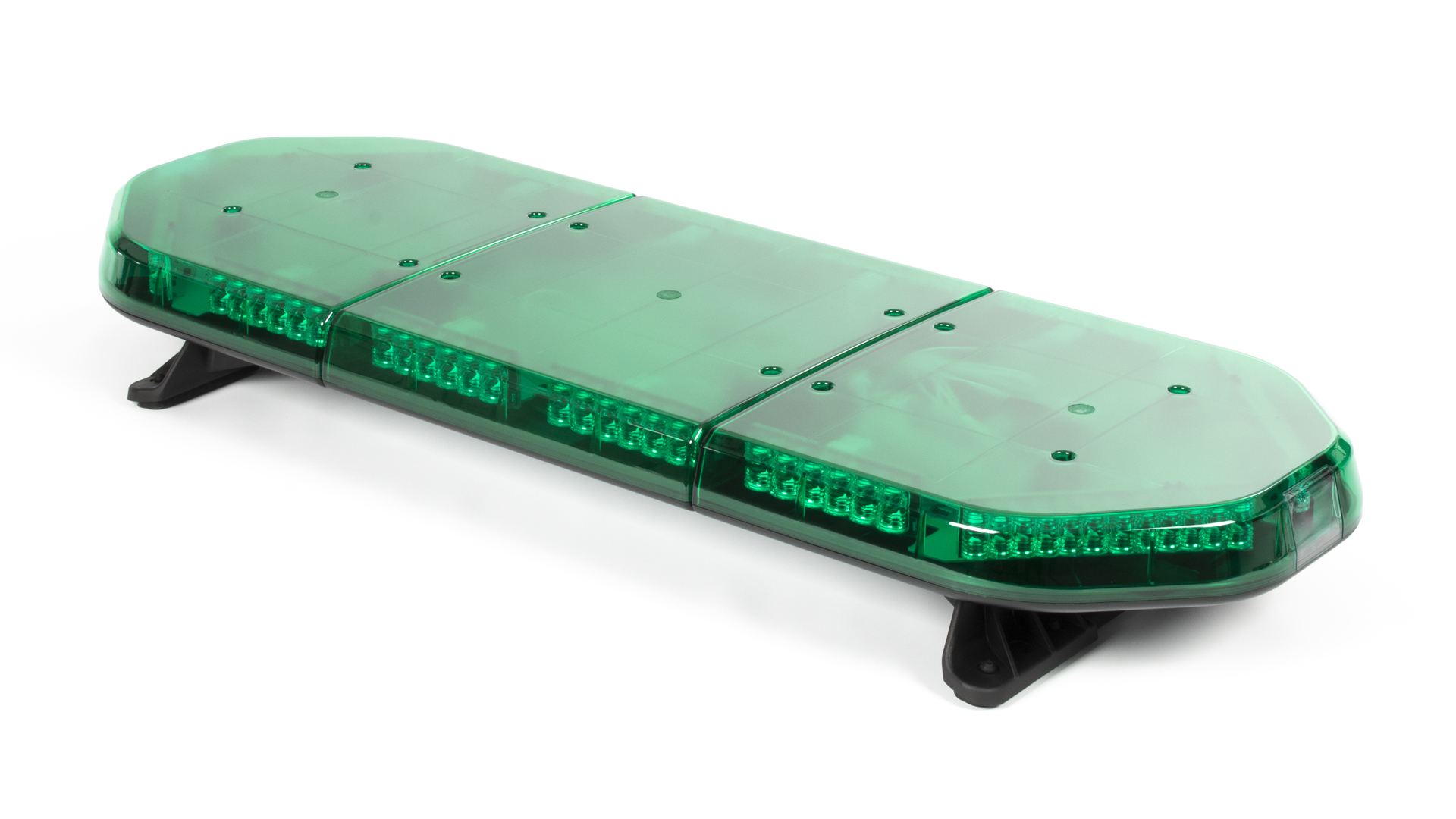

Legion HE Lightbar, 0935mm (36.8″), 72x GREEN LEDs, GREEN LENSES, ECE R10, IPX4K, D-Fuser Optics, 7 Flash Patterns, 1 Cable Harness (8 Function/2 Power), Standard Feet, 12VDC.
-
Specifications
LEDs rated to 100,000 hours of operation.
Easy maintenance and lighthead replacement.
D-Fuser optics for superior 360 degree light spread.
Non-volatile memory recalls last flash pattern used at power up.
Aluminium extrusion for best heat dissipation.
Built-in and programmable flashing patterns.
Reverse polarity protection.Product Specifications
Product code 06320195 Product Name Legion HE 0935mm (36.8") - GG (12VDC) Categories Warning Lights, Legion High End, Lightbars, Legion HE Standard, Legion Product Type Products Dimensions Length/width 935mm (36") Dimensions Height 59mm (2.3") Dimensions Depth 331mm (13") Colour Type Single Colour Lightbar Length 0935mm (36.8") LED Colour Green LEDs Lens Colour Green Lens Compliance ECE-R10, CA13 Input Voltage 12VDC Optic Type D-Fuser Optics Mounting Option Standard Bolt Mount Brackets Cable Type 1 Cable Harness (8 Function/2 Power/2 Speaker) LED Elements 72x LEDs Lighthead Quantity 8x Lightheads Warranty 5 Year Warranty IP Rating IPX4K Warning Patterns 7 Warning Patterns Net Weight 10.8kg Gross Weight 11.8kg -
Spare Parts
-
- Lightheads
- Single Colour
- 6x LEDs
- 3 Pin Connector
- 12VDC
-
- Lightheads
- Single Colour
- 9x LEDs
- 3 Pin Connector
- 12VDC
-
- Lightheads
- Single Colour
- 6x LEDs
- 3 Pin Connector
- 12VDC
-
-
-
-
-
-
-
- Lightheads
- Single Colour
- 12x LEDs
- 3 Pin Connector
- 12VDC
-
-
- Lightheads
- Single Colour
- 6x LEDs
- 3 Pin Connector
- 12VDC
-
-
-
Accessories
-
- Roof Connectors
- Polycarbonate (PC)
- 9 Pin Connector
- Black
- 1 Cable Harness (8 Function/2 Power)
-
-
-
Mounting
-
- Powder-Coated Aluminium
- Low Profile Flat Wide Feet
-
- Powder-Coated Aluminium
- Low Profile Flat Narrow Feet
-
-
- Powder-Coated Aluminium
- MS3 - Extrusion Bracket
-
- Powder-Coated Aluminium
- MS3 - A006 Mounting Bracket
-
- Powder-Coated Aluminium
- Mount Kit (Adjustable A006)
-
- Powder-Coated Aluminium
- Mount Kit (Adjustable Bolt)
-
- Powder-Coated Aluminium
- Low Profile Flat Wide Feet
-
- Powder-Coated Aluminium
- Low Profile Flat Narrow Feet
-
- Powder-Coated Aluminium
- Standard Bolt Mount Brackets
-
