EAN: 06320720

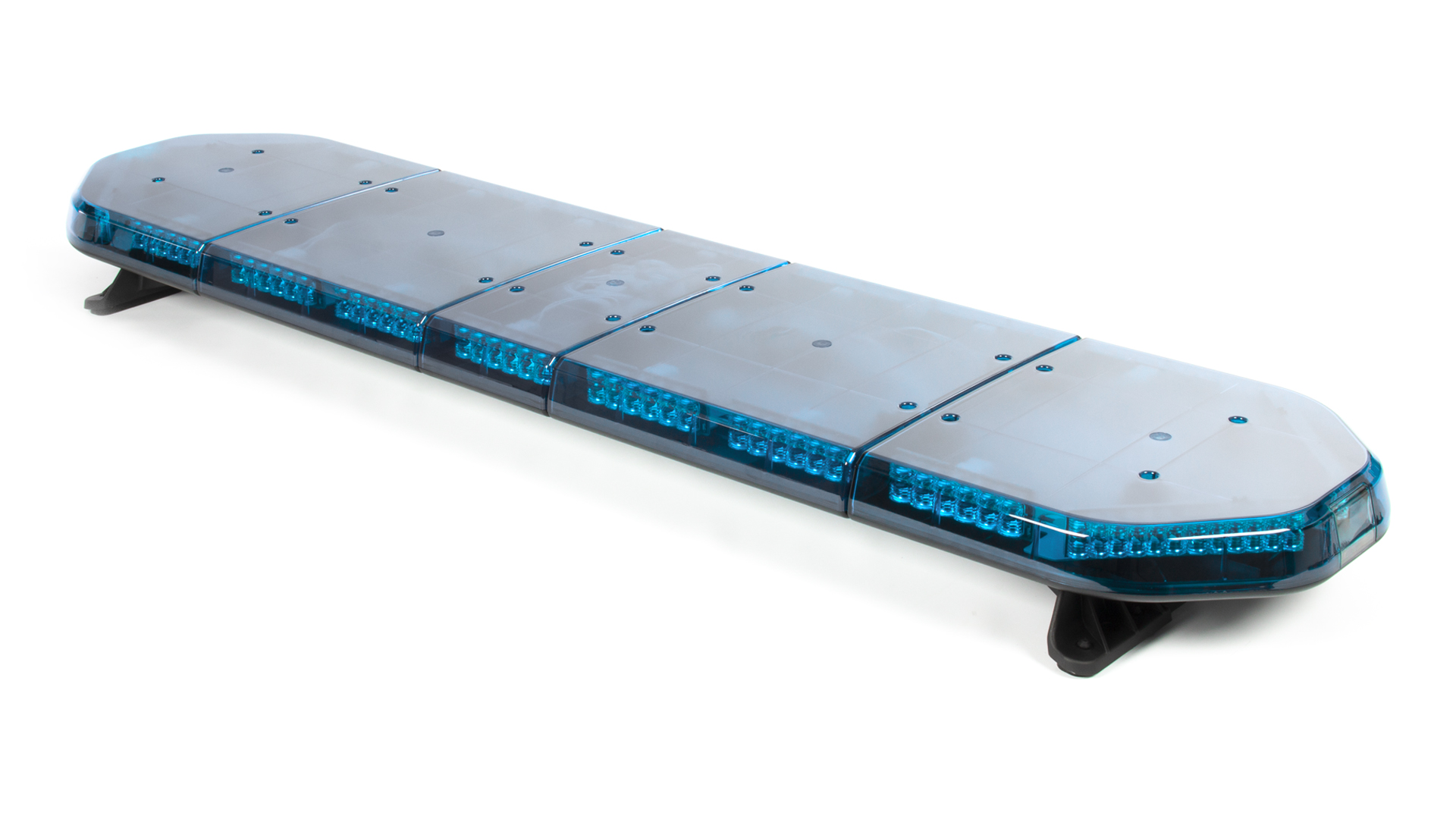

Legion HE Lightbar, 1387mm (54.6″), 72x BLUE LEDs, BLUE LENSES, ECE R10, ECE R65 (TB2), IPX4K, D-Fuser Optics, 12 Flash Patterns, 2 Cable Harness (16 Function/4 Power), Standard Feet, 24VDC.
-
Specifications
LEDs rated to 100,000 hours of operation.
Easy maintenance and lighthead replacement.
D-Fuser optics for superior 360 degree light spread.
Non-volatile memory recalls last flash pattern used at power up.
Aluminium extrusion for best heat dissipation.
Built-in and programmable flashing patterns.
Reverse polarity protection.Product Specifications
Product code 06320720 Product Name Legion HE 1387mm (54.6") - BB (24VDC) Categories Warning Lights, Lightbars, Legion High End, Legion HE Standard, Legion Product Type Products Configurations (available Cruise Light, Alley Lights, Take-Downs, Steady On Dimensions Length 1387mm (54 Default Functions Traffic Director - Rear Left Arrow., Take-Down Lights (2 heads, Traffic Director - Rear Right Arrow., Hi/Low Power (50%, Right-Side Alley Light, Left-Side Alley Light, Illuminated Centre Section, Flashing Alleys & Take-Downs, Front Cut-Off, Rear Cut-Off, Program Mode, Control Box Transmission Line, Stop / Tail / Turn, Cruise Light Mode, ECE-R65 Warning Mode, Flash Pattern for LEDs & TD/Alley Dimensions Height 59mm (2.3") Dimensions Width 331mm (13") Colour Type Single Colour Lightbar Length 1387mm (54.6") LED Colour Blue LEDs Lens Colour Blue Lens (Dark) Compliance ECE-R10, ECE-R65 (TB2), SAE J595 Class 1, SAE J845 Class 1, CA13 Optic Type D-Fuser Optics Input Voltage 24VDC Mounting Option Standard Bolt Mount Brackets Cable Type 2 Cable Harness (16 Function/4 Power/2 Speaker) LED Quantity 72x LEDs Lighthead Quantity 8x Lightheads IP Rating IPX4K Flash Patterns 12 Flash Patterns Traffic Arrow Patterns 11 Traffic Arrow Net Weight 15.8kg Gross Weight 16.8kg Dummy Bracket Qty 10x Dummy Plates Warranty 5 Year Warranty -
Spare Parts
-
-
- Lightheads
- Take-Down
- Single Colour
- 3 Pin Connector
- Spot Optics
-
- Lightheads
- Warning
- Single Colour
- 3 Pin Connector
- D-Fuser Optics
-
- Lightheads
- Take-Down
- Single Colour
- 3 Pin Connector
- Spot Optics
-
-
-
-
-
-
- Lenses
- Polycarbonate (PC)
- Middle
- Large, 300mm (12")
- Blue Lens (Dark)
-
-
- Lightheads
- Warning
- Single Colour
- 3 Pin Connector
- D-Fuser Optics
-
-
- Lightheads
- Warning
- Single Colour
- 3 Pin Connector
- D-Fuser Optics
-
-
-
Accessories
-
- Connectors
- Polycarbonate (PC)
- 9 Pin Connector
- 1 Cable Harness (8 Function/2 Power)
-
-
Mounting
-
- Powder-Coated Aluminium
- Low Profile Flat Wide Feet
- Black
-
- Powder-Coated Aluminium
- Low Profile Flat Narrow Feet
- Black
-
-
- Powder-Coated Aluminium
- MS3 - Extrusion Bracket
- Black
-
- Powder-Coated Aluminium
- MS3 - A006 Mounting Bracket
- Black
-
- Powder-Coated Aluminium
- Mount Kit (Adjustable A006)
- Black
-
- Powder-Coated Aluminium
- Mount Kit (Adjustable Bolt)
- Black
-
- Powder-Coated Aluminium
- Low Profile Flat Wide Feet
- Black
-
- Powder-Coated Aluminium
- Low Profile Flat Narrow Feet
- Black
-
- Powder-Coated Aluminium
- Standard Bolt Mount Brackets
- Black
-
