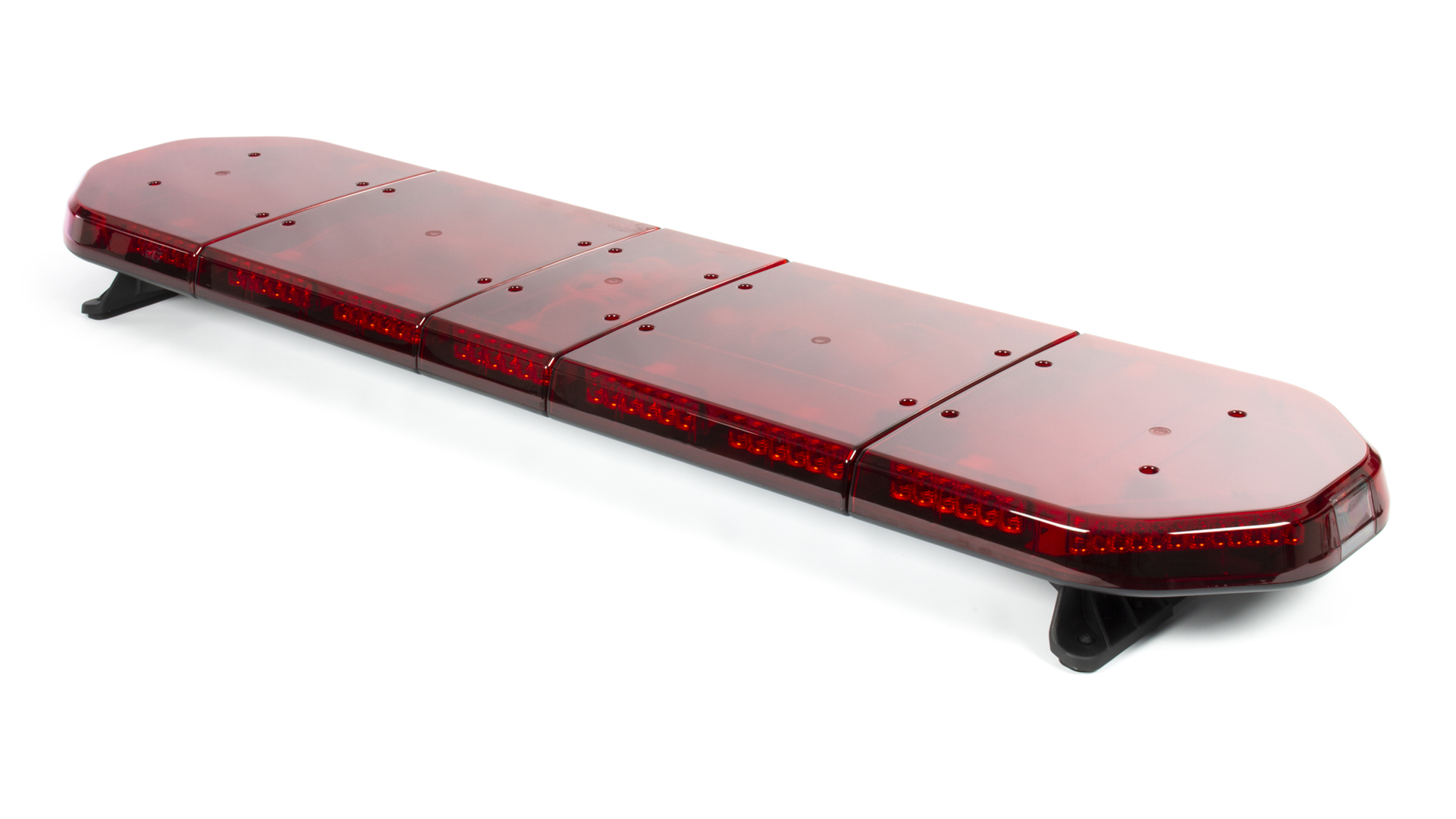

Legion HE Lightbar, 1387mm (54.6″), 72x RED LEDs, RED LENSES, ECE R10, IPX4K, D-Fuser Optics, 12 Flash Patterns, 2 Cable Harness (16 Function/4 Power), Standard Feet, 24VDC.
-
Specifications
LEDs rated to 100,000 hours of operation.
Easy maintenance and lighthead replacement.
D-Fuser optics for superior 360 degree light spread.
Non-volatile memory recalls last flash pattern used at power up.
Aluminium extrusion for best heat dissipation.
Built-in and programmable flashing patterns.
Reverse polarity protection.Product Specifications
Product code 06321321 Product Name Legion HE 1387mm (54.6") - RR (24VDC) Categories Warning Lights, Lightbars, Legion HE Standard, Legion High End, Legion Product Type Products Configurations (available Cruise Light, Alley Lights, Take-Downs, Steady On Dimensions Length/width 1387mm (54 Default Functions Program Mode, Take-Down Lights (2 heads, Traffic Director - Rear Left Arrow., Hi/Low Power (50%, Traffic Director - Rear Right Arrow., Right-Side Alley Light, Left-Side Alley Light, Illuminated Centre Section, Flashing Alleys & Take-Downs, Front Cut-Off, Rear Cut-Off, Control Box Transmission Line, Stop / Tail / Turn, Cruise Light Mode, ECE-R65 Warning Mode, Flash Pattern for LEDs & TD/Alley Dimensions Height 59mm (2.3") Dimensions Depth 331mm (13") Colour Type Single Colour Lightbar Length 1387mm (54.6") LED Colour Red LEDs Lens Colour Red Lens Compliance ECE-R10, SAE J595 Class 1, SAE J845 Class 1, CA13 Input Voltage 24VDC Optic Type D-Fuser Optics Mounting Option Standard Bolt Mount Brackets Cable Type 2 Cable Harness (16 Function/4 Power/2 Speaker) LED Elements 72x LEDs Lighthead Quantity 8x Lightheads IP Rating IPX4K Flash Patterns 12 Flash Patterns Traffic Arrow Patterns 11 Traffic Arrow Net Weight 15.8kg Gross Weight 16.8kg Dummy Bracket Qty 10x Dummy Plates Warranty 5 Year Warranty -
