EAN: 06260071
Legion HE H002 Speaker Lightbar, 0935mm (36.8″), 72x BLUE LEDs, BLUE LENSES, ECE R10, ECE R65 (TB2), IPX4K, D-Fuser Optics, 7 Flash Patterns, 1 Cable Harness (8 Function/2 Power/2 Speaker), Standard Feet, 24VDC.
-
Specifications
Product Specifications

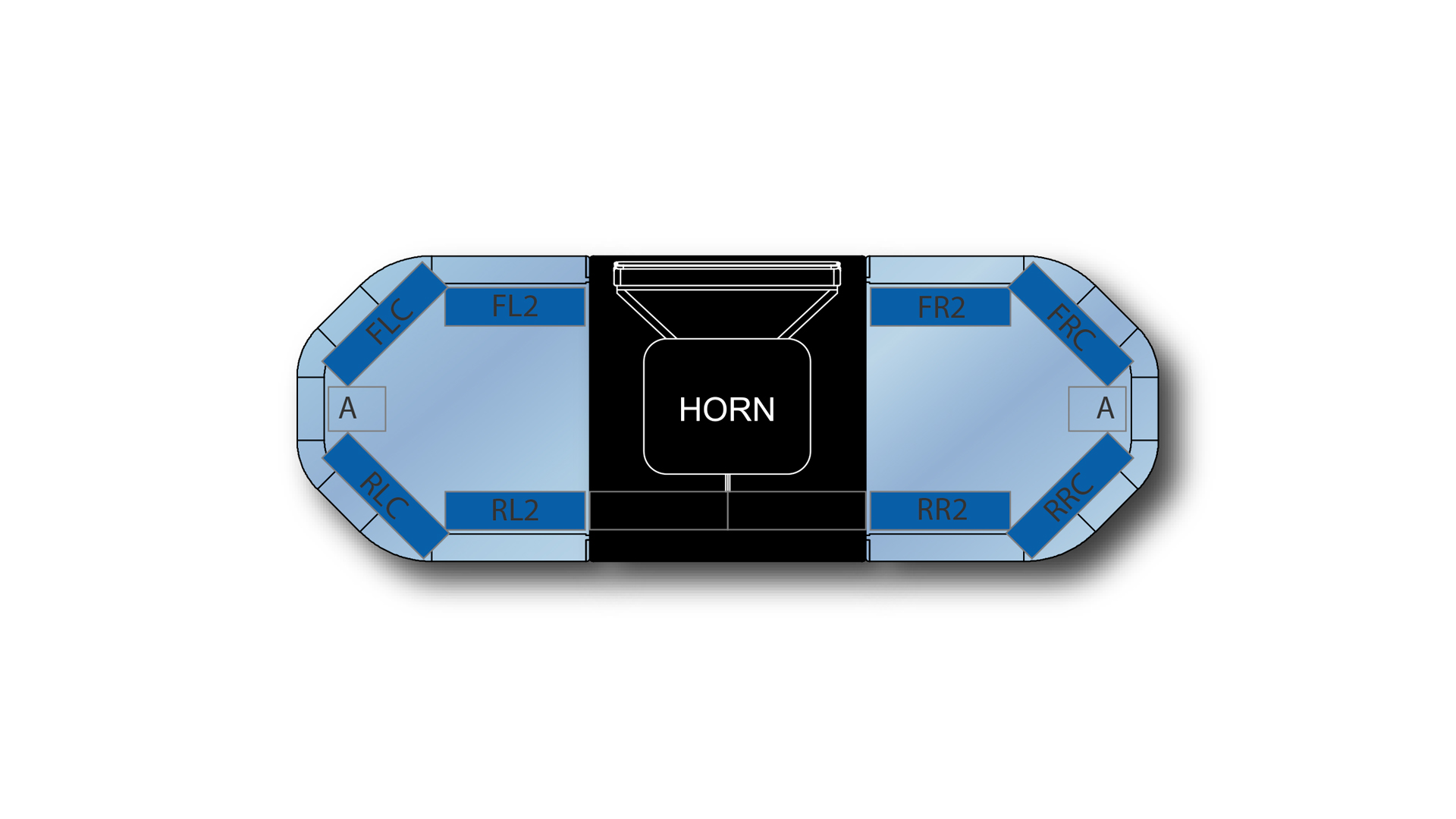

Product code 06260071 Product Name Legion HE H002 Speaker 0935mm (36.8") - BB (24VDC) Categories Warning Lights, Legion High End, Lightbars, Legion HE H002 Speaker, Legion Product Type Products Dimensions Length/width 935mm (36") Default Functions Right-Side Alley Light, Left-Side Alley Light, Take-Down Lights (2 heads, ECE-R65 Warning Mode, Flash Pattern for LEDs & TD/Alley Dimensions Height 59mm (2.3") Speaker Power Rating 100W Dimensions Depth 331mm (13") Colour Type Single Colour Lightbar Length 0935mm (36.8") Speaker Impedance 10-13 Ohms LED Colour Blue LEDs Lens Colour Blue Lens (Dark) Compliance ECE-R10, ECE-R65 (TB2), SAE J595 Class 1, SAE J845 Class 1, CA13 Input Voltage 24VDC Optic Type D-Fuser Optics Mounting Option Standard Bolt Mount Brackets Cable Type 1 Cable Harness (8 Function/2 Power/2 Speaker) LED Elements 72x LEDs Lighthead Quantity 8x Lightheads IP Rating IPX4K Flash Patterns 7 Flash Patterns Warranty 5 Year Warranty -
Spare Parts
-
-
- 100W
- Acrylonitrile Butadiene Styrene (ABS), Aluminium
- 100W
- H002
- 10-13 Ohms
-
-
-
-
- Lightheads
- Warning
- Single Colour
- 12x LEDs
- 3 Pin Connector
-
- Lightheads
- Warning
- Single Colour
- 6x LEDs
- 3 Pin Connector
-
-
-
-
Accessories
-
- Connectors
- Polycarbonate (PC)
- 9 Pin Connector
- 1 Cable Harness (8 Function/2 Power)
-
-
Mounting
-
- Powder-Coated Aluminium
- Black
- Low Profile Flat Wide Feet
-
- Powder-Coated Aluminium
- Black
- Low Profile Flat Narrow Feet
-
-
- Powder-Coated Aluminium
- Black
- Mount Kit (Adjustable A006)
-
- Powder-Coated Aluminium
- Black
- Mount Kit (Adjustable Bolt)
-
