Specifications

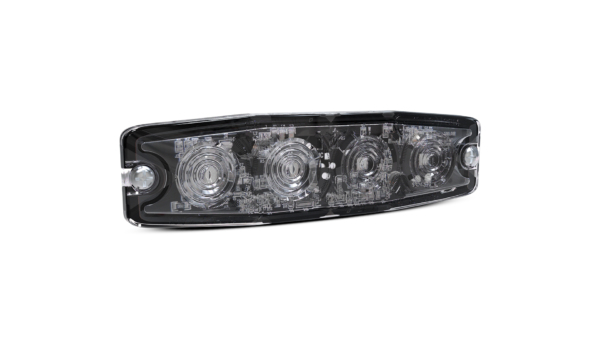

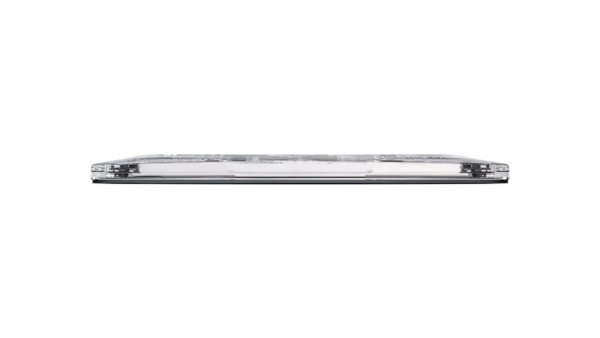

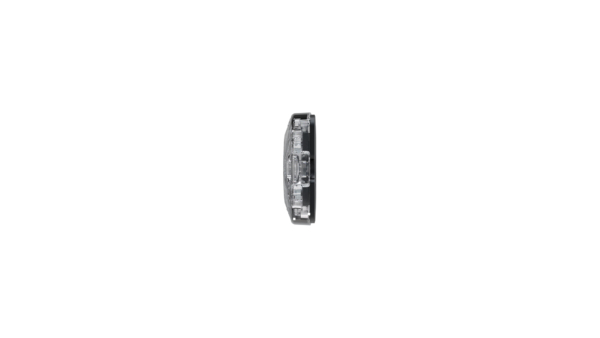

Ultra low profile 6.6mm lighthead for discreet mounting.
Weatherproof and vibration resistant design for external or internal use.
Solid aluminium backing for efficient heat dissipation and maximum durability.
Multi-units synchronization in simultaneous or alternating flash.
Versatile installation in horizontal or vertical mount.

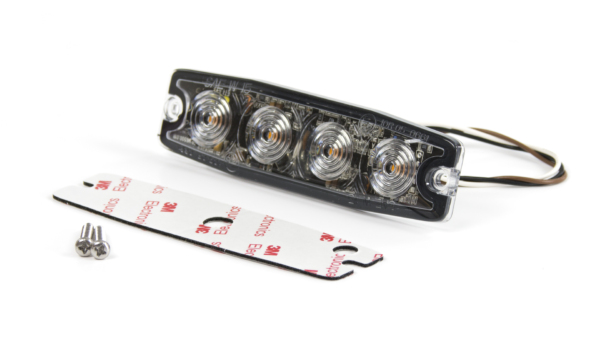

Self-adhesive backing for quick & easy installation.
Self-contained; no external flasher required.
Reverse polarity protection.Product Specifications
Product code 02130163 Product Name LP4 Warning Lighthead - Red Categories Lighting, Directionals, LP4, Modules, LED Pad Product Type Products Dimensions Length 111mm Dimensions Height 30mm Dimensions Width 7mm Colour Type Single Colour Maximum Current 0.65A @12VDC / 0.33A @24VDC Storage Temperature -40°C to +75°C Operating Temperature -30°C to +65°C Maximum Power 7.8W Synchronisation 15 Unit Sync LED Colour Red LEDs Fuse Rating 1A Lens Colour Clear Lens Compliance ECE R10, SAE J595 Class 1, California Title 13 Optic Type Fresnel Optics Nominal Voltage 12-24VDC Mounting Option Self Adhesive Mount, Surface Mount Cable Type Cable (Pigtail) LED Quantity 4LED IP Rating IPX8 Flash Patterns 23 Flash Patterns Wire Length 200mm Mounting Orientation Horizontal Conductor Cross-Section 0.25mm² (24AWG) Warranty 2 Year Warranty -
